Why Do Outdoor LED Displays Require Solar Radiation Testing?

From intense sunlight and high temperatures to real-world test data, understanding outdoor LED display reliability

Outdoor LED displays are widely deployed in roadside advertising, commercial streets, transportation hubs, sports venues, and other open-air environments. These displays are continuously exposed to solar radiation, rain, humidity, temperature fluctuations, and other demanding environmental conditions.

Among these factors, prolonged solar radiation can create significant thermal loads and environmental stress on LEDs, driver ICs, power supplies, PCBs, structural materials, sealing components, and surface coatings.

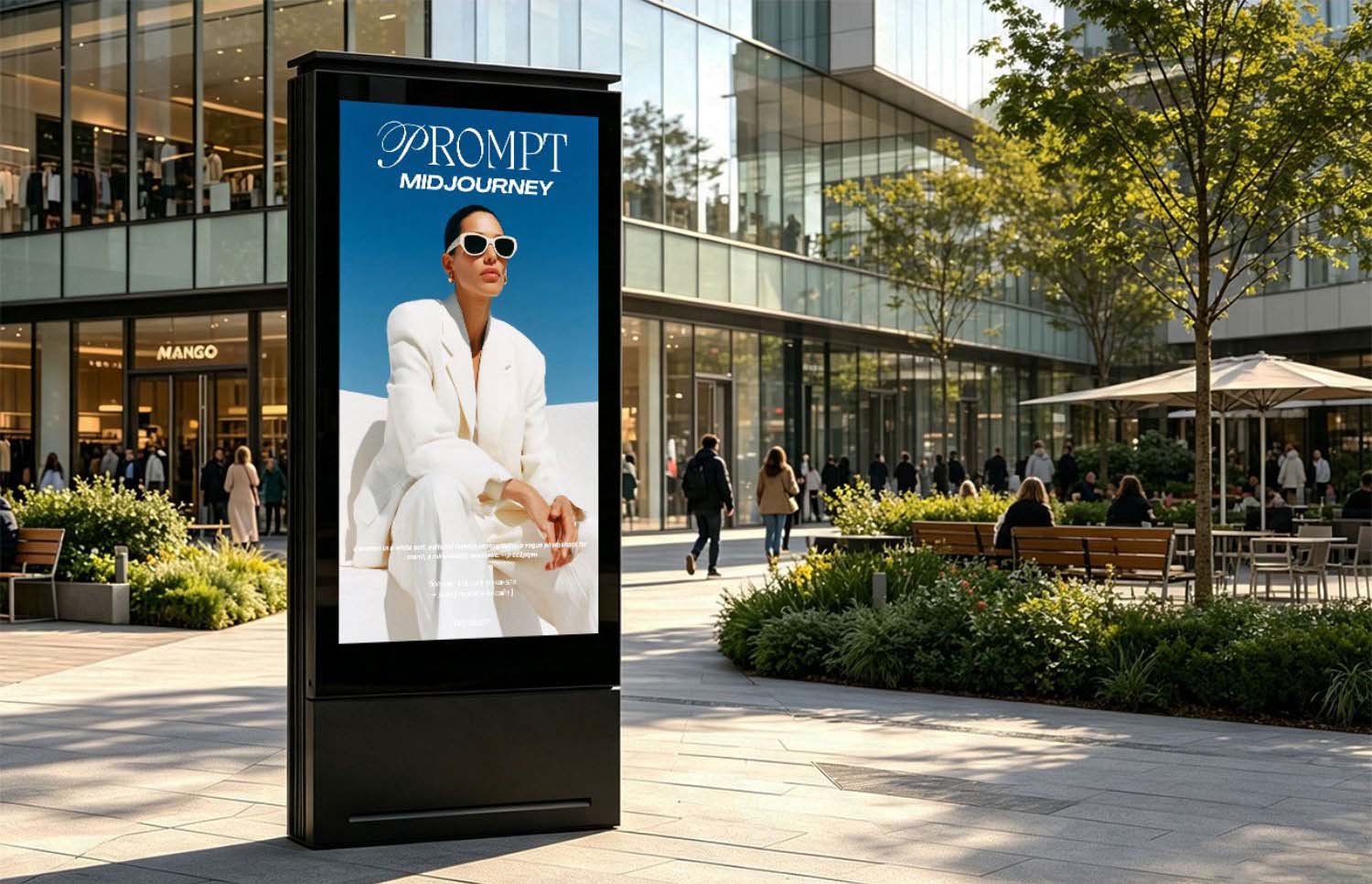

For outdoor LED billboards, LED totems, and other digital out-of-home (DOOH) displays that may operate continuously, standard factory functional testing and visual inspection alone cannot fully evaluate long-term reliability under intense sunlight.

Solar radiation testing provides a controlled laboratory environment for simulating high-intensity sunlight exposure. It allows engineers to evaluate how outdoor LED displays perform under continuous radiation and thermal loads, providing practical data for material selection, thermal management, electronic component selection, and overall product reliability optimization.

CNLC has recently deployed a dedicated solar radiation testing system and incorporated solar radiation testing into its environmental reliability validation process for outdoor LED display products.

What Is Solar Radiation Testing?

Solar radiation testing is an environmental reliability test used to simulate the environmental stresses that products may experience during prolonged exposure to sunlight.

During outdoor operation, direct sunlight can significantly increase the surface and internal temperatures of an LED display. Ultraviolet radiation may also affect certain polymeric materials, seals, and surface coatings over time, while the additional thermal load increases the environmental stress placed on LEDs, driver systems, power supplies, and other electronic components.

Solar radiation testing is therefore more than simply exposing a product to sunlight. Under controlled laboratory conditions, the product is subjected to specified solar radiation while its operating status and temperatures at key locations are continuously monitored.

This approach helps engineering teams identify potential environmental risks earlier and use test findings to improve product design and reliability.

Solar Radiation Testing vs. Conventional High-Temperature Testing

Solar radiation testing is sometimes confused with conventional high-temperature testing, but the two tests focus on different environmental stresses.

High-temperature testing primarily evaluates product performance and resistance under elevated ambient temperatures.

Solar radiation testing, on the other hand, focuses on solar radiation and its thermal effects, allowing engineers to evaluate product performance and material stability after controlled exposure to continuous simulated sunlight.

In real outdoor environments, LED displays may simultaneously experience solar radiation, high ambient temperatures, heat generated by the display itself, and long periods of continuous operation.

Therefore, solar radiation testing serves as an important complement to high-temperature, low-temperature, humidity, and other environmental reliability tests, providing another perspective for evaluating outdoor LED display reliability.

Which Parts of an Outdoor LED Display Can Be Affected by Long-Term Solar Radiation?

An outdoor LED display consists of multiple systems and components, including LED display modules, driver systems, power supplies, PCBs, cabinets, structural components, sealing materials, and surface protection materials.

Long-term solar radiation and its thermal effects can place different levels of environmental stress on these components. Reliability evaluation therefore needs to consider both the complete display and its critical components.

1. LED Components and Display Modules

LEDs are the core display components of an outdoor LED display.

During outdoor operation, LEDs generate heat while also being exposed to additional thermal loads caused by direct solar radiation. As ambient and surface temperatures increase, LED display components may experience greater thermal stress.

Solar radiation testing allows engineers to monitor temperature changes in LED components under high-irradiance and high-temperature conditions, providing practical data for LED component selection and thermal design.

2. Power Supplies and Electronic Components

Power supplies, driver ICs, PCBs, receiving cards, and other electronic components inside an outdoor LED display generate heat during operation.

When solar radiation increases the overall thermal load, these components may operate at higher temperatures.

By monitoring temperature changes during solar radiation testing, engineers can better understand the thermal distribution inside the display and use the results to optimize power supply selection, electronic component configuration, and overall thermal management.

3. Cabinets and Structural Materials

Outdoor LED display cabinets and structural components must maintain stable mechanical performance during long-term outdoor exposure.

Metal, plastic, and other structural materials may experience thermal expansion or other material changes under continuous solar radiation and temperature fluctuations.

Solar radiation testing helps engineers observe how structural components respond to high-temperature and high-light conditions, providing useful references for cabinet design, installation clearances, and material selection.

4. Sealing and Protective Materials

Outdoor LED displays typically use sealing strips, sealants, and protective structures to reduce the risk of water and moisture entering the display.

Long-term solar radiation may affect the physical properties of certain sealing materials over time.

Solar radiation testing can therefore be used as part of outdoor protection and reliability validation, helping engineers evaluate the stability of relevant materials under combined light and thermal exposure.

5. Surface Coatings and Exterior Materials

The exterior surfaces and coatings of outdoor LED displays are directly exposed to the natural environment.

Continuous solar radiation may affect certain coatings and exterior materials over time, potentially resulting in changes such as color variation or surface aging.

Solar radiation testing provides a controlled method for evaluating material and surface treatment options and supporting outdoor weatherability design.

How Does CNLC Conduct Solar Radiation Testing for Outdoor LED Displays?

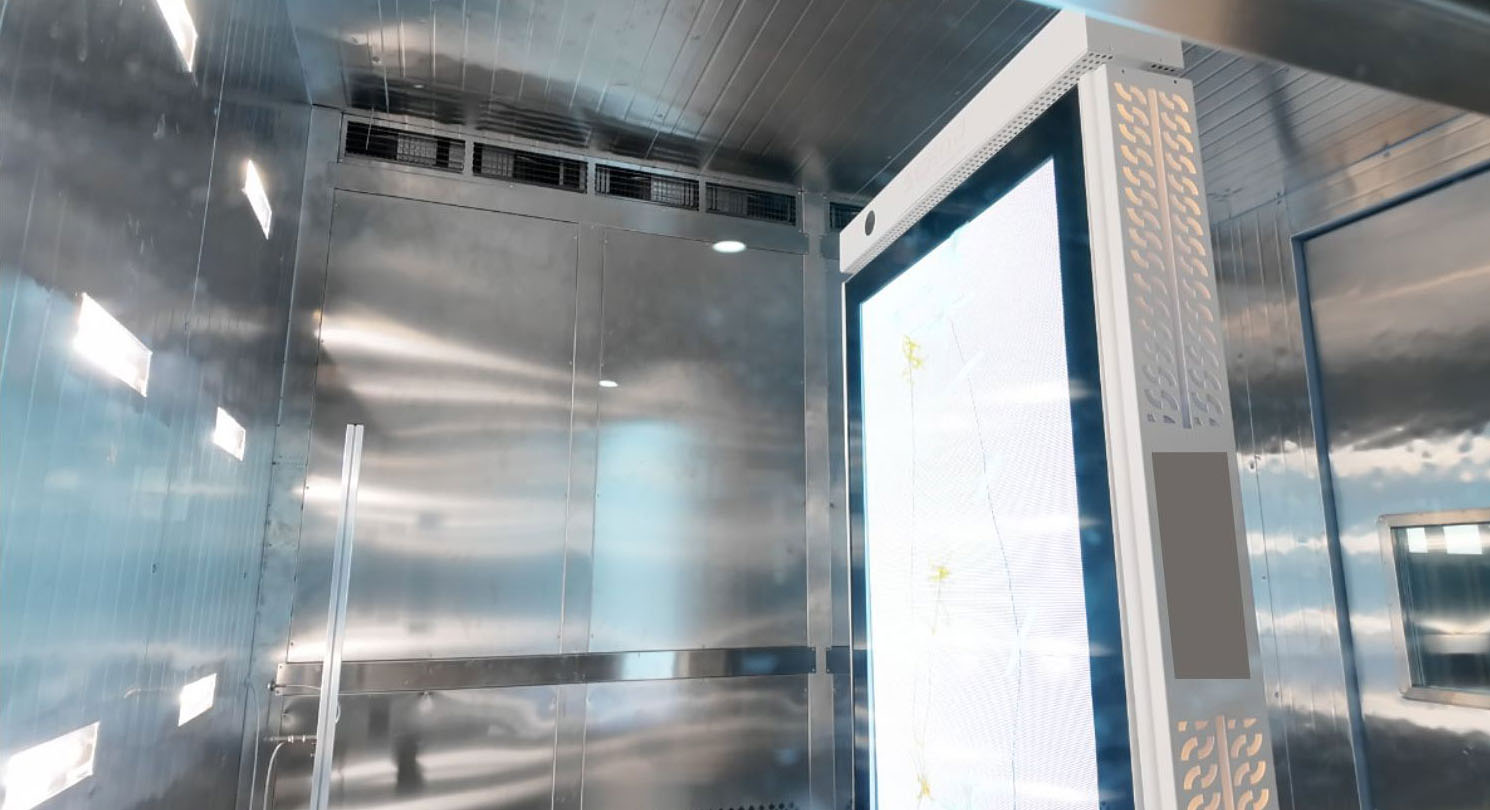

With its newly deployed solar radiation testing system, CNLC can conduct environmental reliability validation for outdoor LED displays, LED totems, LED billboards, and related critical components.

A typical testing process includes:

Product Preparation → Test Condition Setup → Solar Radiation Exposure → Test Monitoring → Post-Test Inspection → Data Analysis and Evaluation

Before testing begins, the engineering team prepares the sample according to its design and test requirements and sets the required irradiance, ambient temperature, and exposure duration.

During testing, the LED display is exposed to controlled solar radiation while multi-point temperature monitoring equipment records temperature changes at critical locations, including the LED surface, cabinet interior, power supply, and other key components.

After testing, the product is inspected and compared with its pre-test condition. Engineers evaluate changes in appearance, structure, and operating status and use the findings to support further product development and engineering optimization.

P4 Dual-Sided Outdoor LED Advertising Display: A Real Solar Radiation Test Case

To demonstrate the practical value of solar radiation testing, the following section presents a recent CNLC test conducted on a P4 dual-sided outdoor LED advertising display.

The test was designed to simulate the thermal conditions that an outdoor LED display may encounter under high solar irradiance and elevated ambient temperatures.

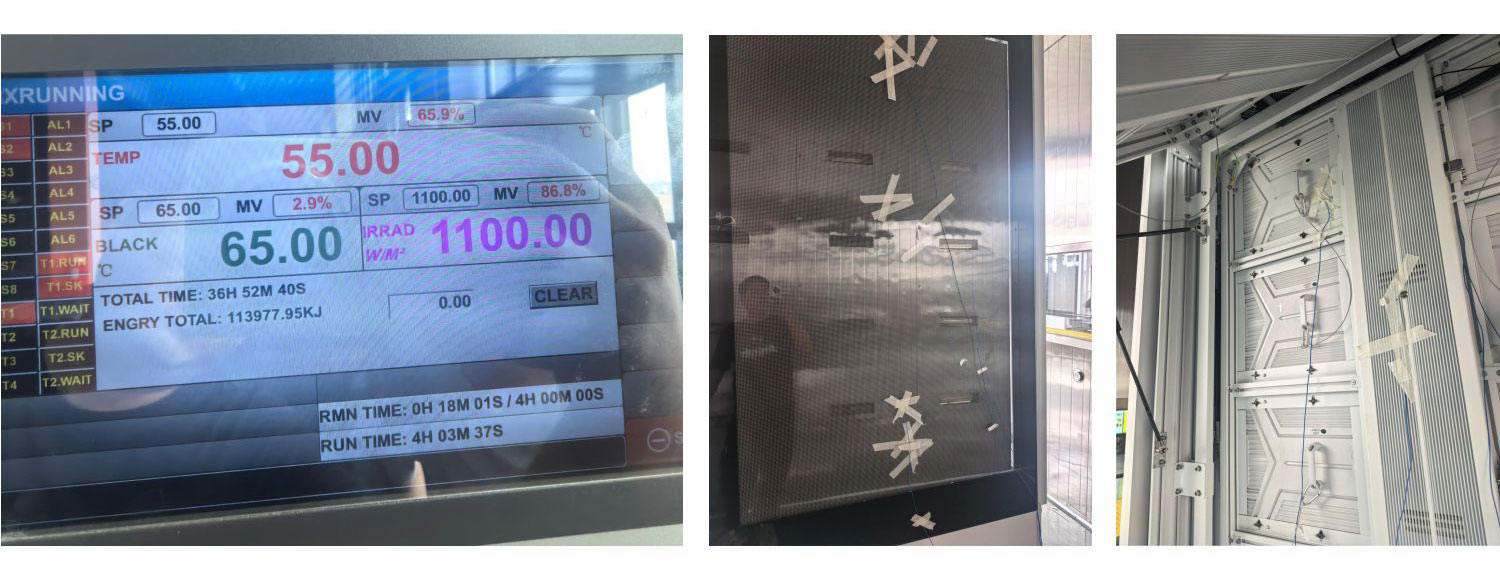

Test Conditions

• Solar irradiance: 1100 W/m²

• Ambient temperature: 55°C

• Exposure duration: 4 hours

• UV irradiance: 77 W/m²

• Visible light: 473 W/m²

• Infrared radiation: 550 W/m²

• Temperature monitoring points: 16

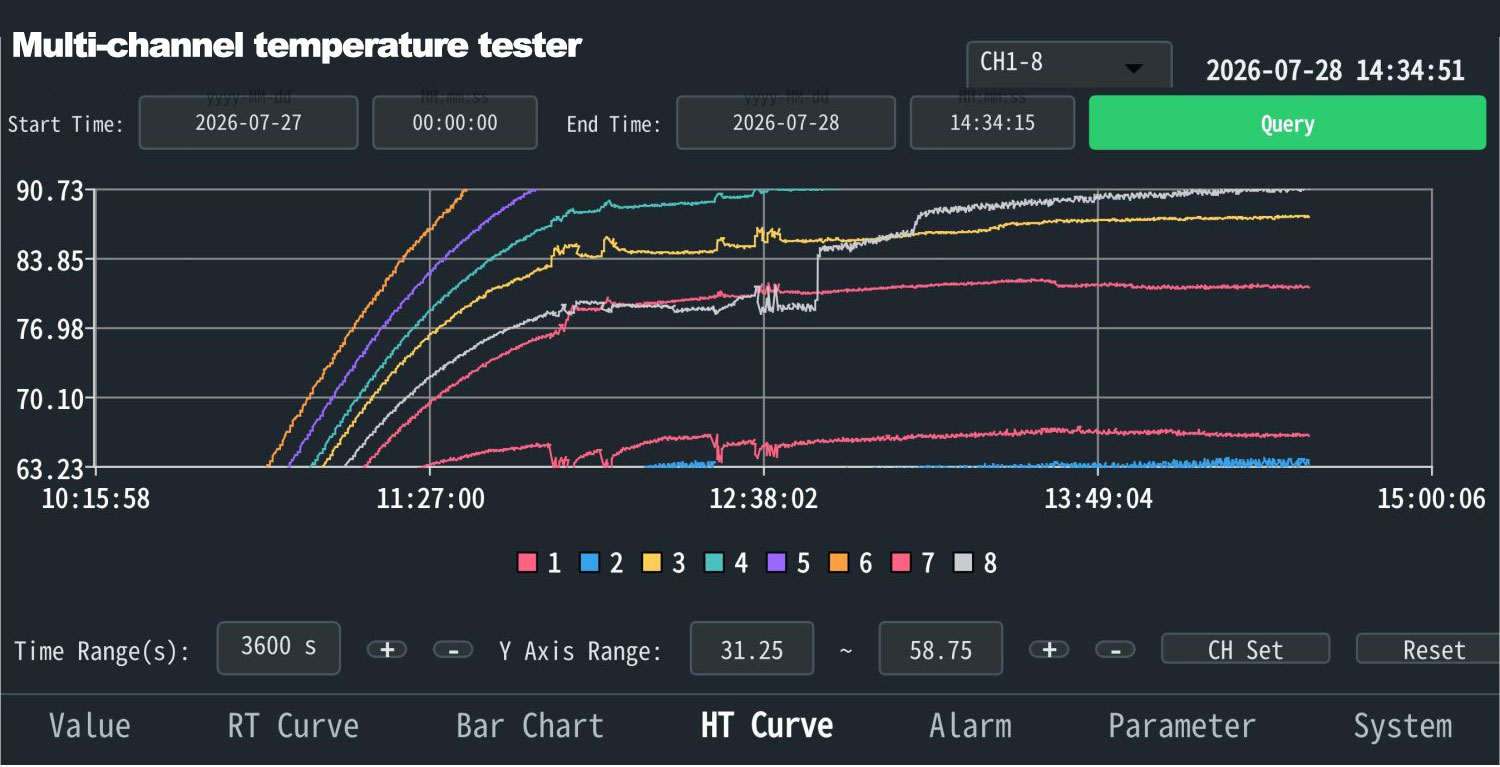

The 16 temperature monitoring points were distributed across key locations, including the glass surface, LED surface, rear side of the LED module, power supply, receiving card, cabinet interior, and electrical box cover.

Multi-point temperature monitoring provides a more comprehensive view of the product's temperature distribution and thermal response under simulated solar radiation.

Test Data: LED Surface Temperature Reached 89°C

During the solar radiation test of the P4 dual-sided outdoor LED advertising display, the test environment was maintained at 1100 W/m² solar irradiance and an ambient temperature of 55°C.

The highest measured temperature at the LED surface reached 89°C during the test.

This result provides a direct indication of the thermal load experienced by the LED display components under high-irradiance and high-temperature conditions. The data can also support LED component selection, thermal design, and overall heat management.

Power Supply Temperature Reached 82–93°C

During the same test, the temperature inside the cabinet remained within approximately 64–67°C, while the LED power supply temperature reached 82–93°C.

These measurements help engineers understand the thermal distribution across different areas of the display and evaluate the performance of the power supply, electronic components, and structural thermal management under demanding environmental conditions.

For outdoor LED billboards and DOOH displays designed for extended continuous operation, such real-world test data can provide valuable input for reliability-oriented product design.

Surface Coating Weatherability Performance

The exterior housing and surface coating of an outdoor LED display are continuously exposed to the outdoor environment, making weatherability an important aspect of product reliability.

During this test, the 176 μm weather-resistant powder coating on the product exterior was exposed to 1100 W/m² full-spectrum solar radiation for 4 hours.

No obvious fading, yellowing, blistering, cracking, or peeling was observed after the exposure.

This result provides practical evidence for evaluating the surface stability of the coating system under the specific high-irradiance and high-temperature test conditions.

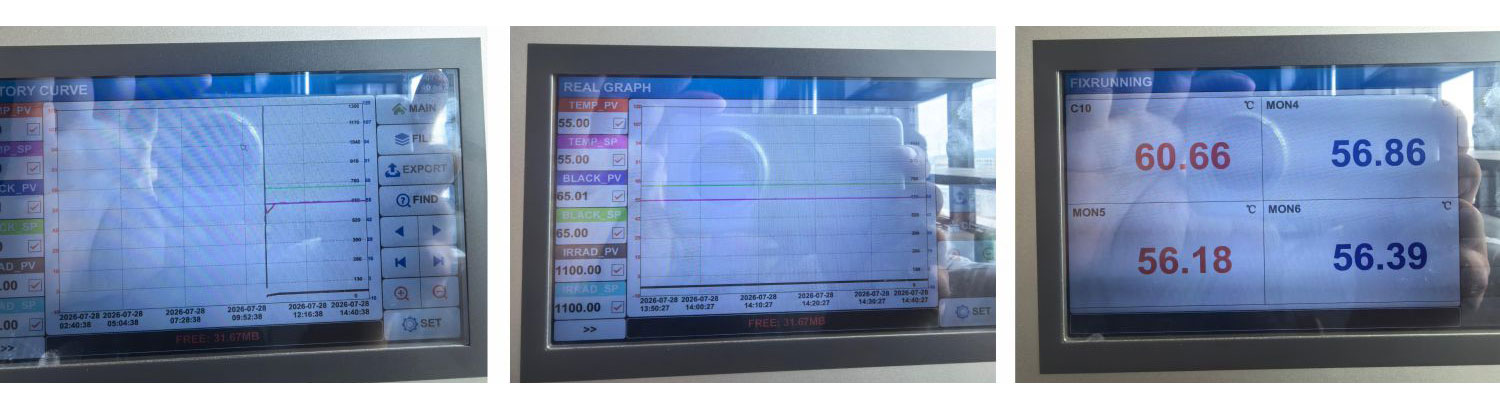

Test Results: From Rapid Heating to Thermal Stability

The test data showed that the sample experienced rapid temperature increases during the initial stage of exposure. The rate of temperature increase gradually slowed, and temperatures approached a relatively stable state during the later stage of the test.

Throughout the 4-hour test, no smoke, unusual odor, cracking, structural loosening, or other abnormalities were observed, and the sample remained operational throughout the test.

These findings help engineering teams better understand the thermal response of the outdoor LED display under high-irradiance and high-temperature conditions and provide practical input for further design optimization.

From Testing to Optimization: Building a Reliability Validation Loop

The value of environmental reliability testing is not limited to obtaining a test result.

More importantly, systematic testing can help identify potential risks before products are deployed at scale and feed the findings back into product development and engineering design.

CNLC uses test results to support:

• LED component selection and optimization

• Thermal management optimization

• Power supply and electronic component configuration

• Cabinet structure improvements

• Sealing and protection optimization

• Outdoor weatherability improvements

This creates a continuous:

Testing → Analysis → Optimization → Re-validation

reliability validation loop.

Why Do 24/7 DOOH Applications Require Reliable Outdoor LED Displays?

Roadside LED billboards, LED totems, commercial advertising displays, transportation information displays, and other DOOH (Digital Out-of-Home) applications often operate for extended periods, sometimes continuously 24/7.

For operators, a display failure can result in on-site maintenance and replacement costs and may interrupt advertising content, affecting overall operational efficiency.

Outdoor LED display reliability therefore needs to be considered from the early stages of product development, material selection, structural design, and manufacturing—not simply treated as a final quality-control requirement.

Solar radiation testing, high-temperature testing, low-temperature testing, humidity testing, and other environmental reliability tests can evaluate different aspects of an LED display's ability to withstand demanding outdoor conditions.

CNLC Continues to Enhance Outdoor LED Display Reliability Testing

As an outdoor LED display solutions manufacturer, CNLC continues to strengthen its capabilities in product development, engineering design, and environmental reliability testing, supporting outdoor LED display applications for roadside advertising, commercial displays, transportation information systems, and DOOH networks.

With the deployment of its solar radiation testing system, CNLC has further expanded its environmental reliability validation capabilities for outdoor LED products. Combined with high-temperature, low-temperature, humidity, salt spray, and other environmental tests, the system supports a more comprehensive evaluation of outdoor product performance.

For CNLC, testing is not only a quality-control step in manufacturing. It is also an important part of product development and continuous engineering improvement.

By integrating product design, material selection, manufacturing processes, and reliability testing, CNLC continuously evaluates product performance under controlled laboratory conditions and feeds the findings back into product development.

Conclusion

Outdoor LED displays operate in open-air environments and face multiple challenges, including solar radiation, high temperatures, temperature fluctuations, rain, and continuous operation.

Solar radiation testing provides a controlled method for simulating intense sunlight exposure and generating practical data for evaluating and optimizing the environmental reliability of outdoor LED displays.

True product reliability is not simply about operating normally when a display is first installed. It is about maintaining stable display performance and operation when exposed to demanding outdoor conditions over time.

CNLC continues to combine environmental testing, engineering validation, and product optimization to provide reliable outdoor LED display solutions for DOOH advertising, transportation, commercial, and other outdoor applications worldwide.
