رقم الصنف :
CNLC-ED-SM0515حجم :
Customizeوضح :
5500/6500 cd/m²نسبة الدقة :
SMDمادي :
Aluminum Structureلون :
Black / Silver / Grey / Customizeدرجة للماء :

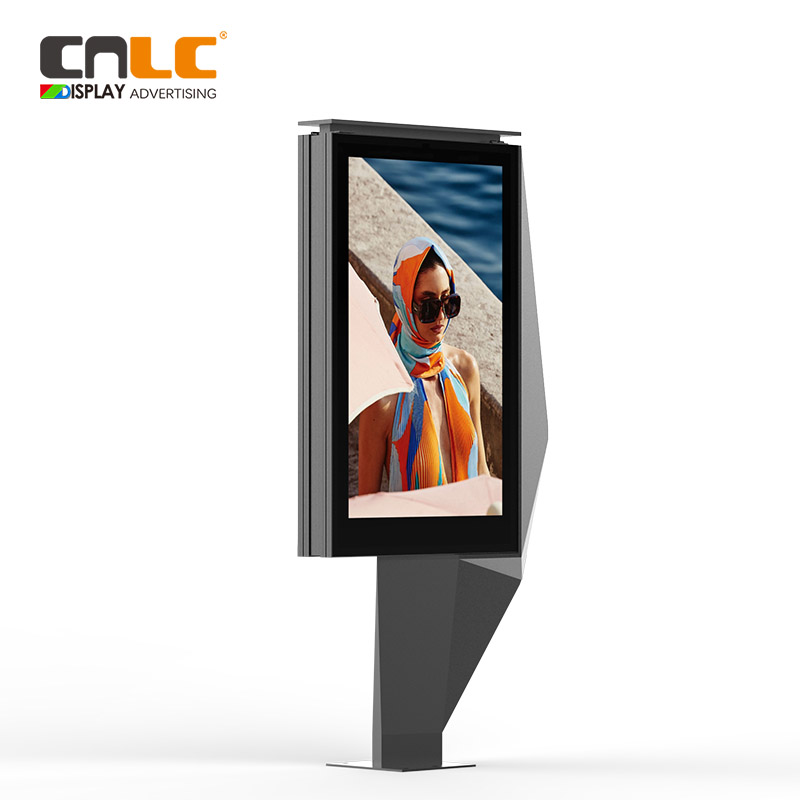

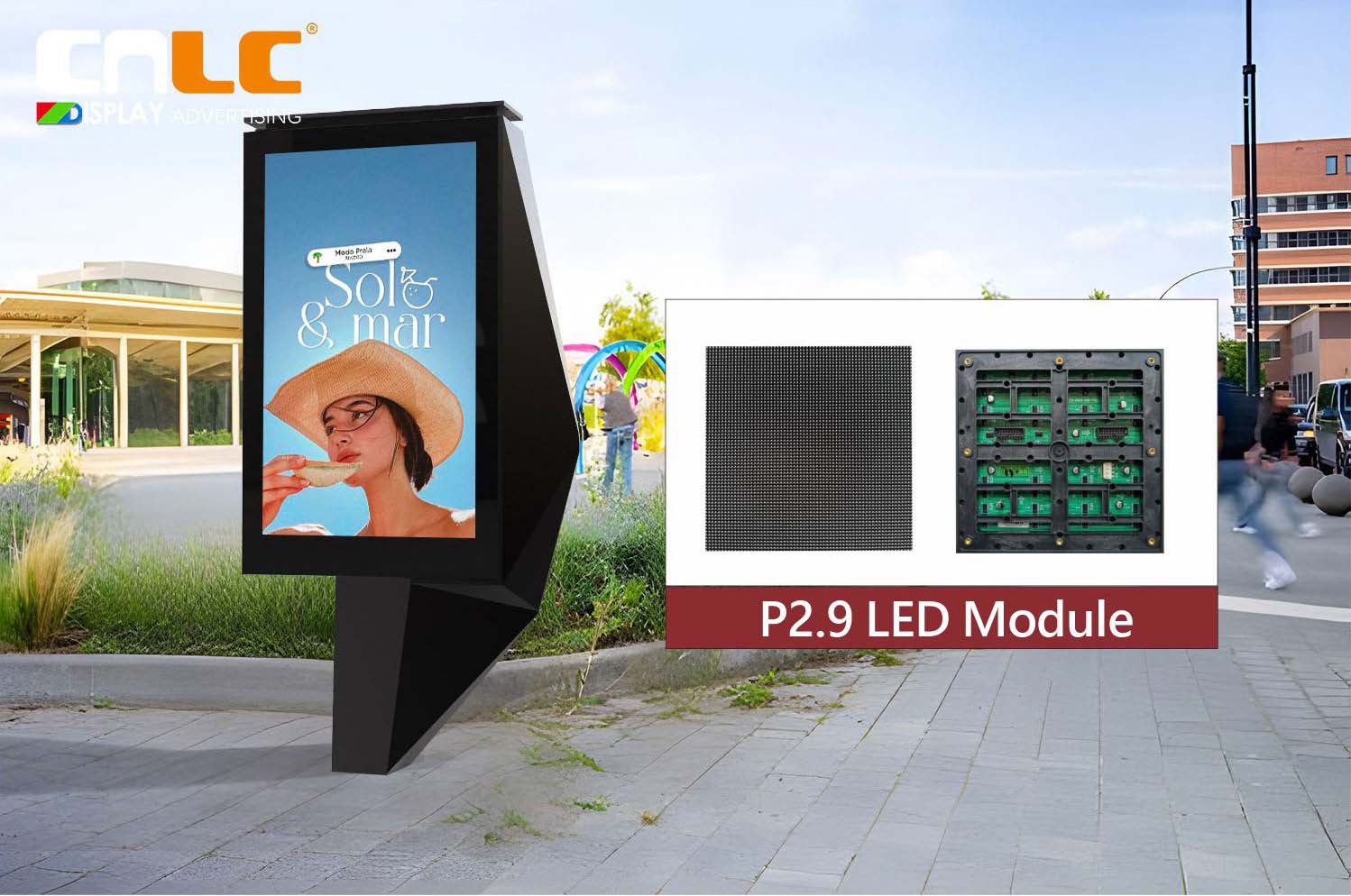

IP56High-Brightness P2.9 LED Module
◆ This outdoor LED totem adopts a P2.9 fine-pitch LED module from CNLC, delivering ultra-clear image quality with a brightness of 5,500–6,500 nits for perfect visibility in daylight and high ambient light conditions. Compared to conventional outdoor LED screens, the high-brightness CNLC P2.9 module ensures superior readability, making it ideal for digital signage, outdoor LED displays, and DOOH advertising billboards. The fine pixel pitch guarantees sharp visuals even at close viewing distances, maximizing audience engagement in public spaces, commercial plazas, and transport hubs.

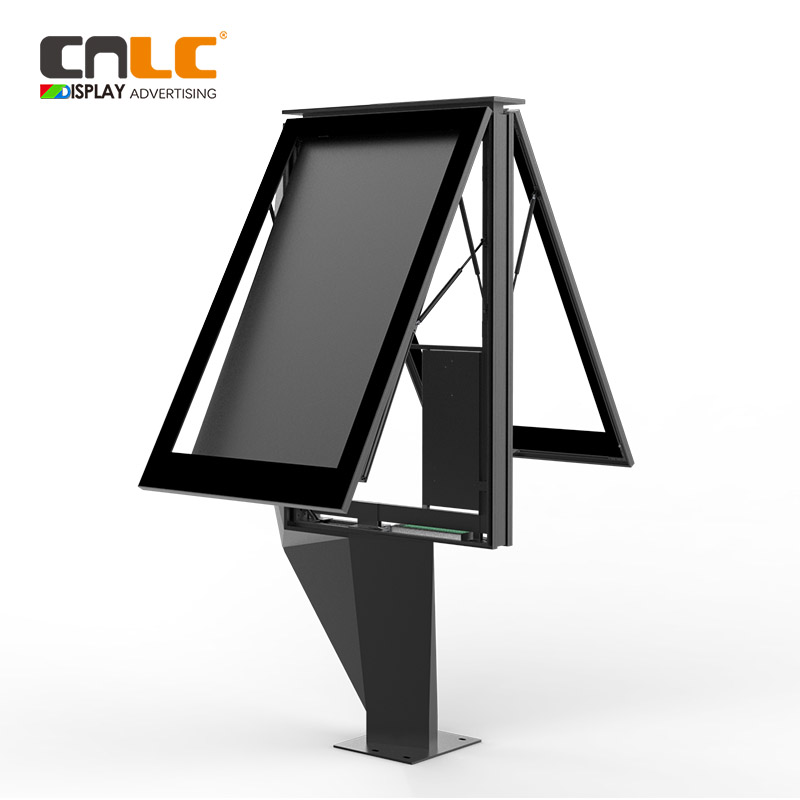

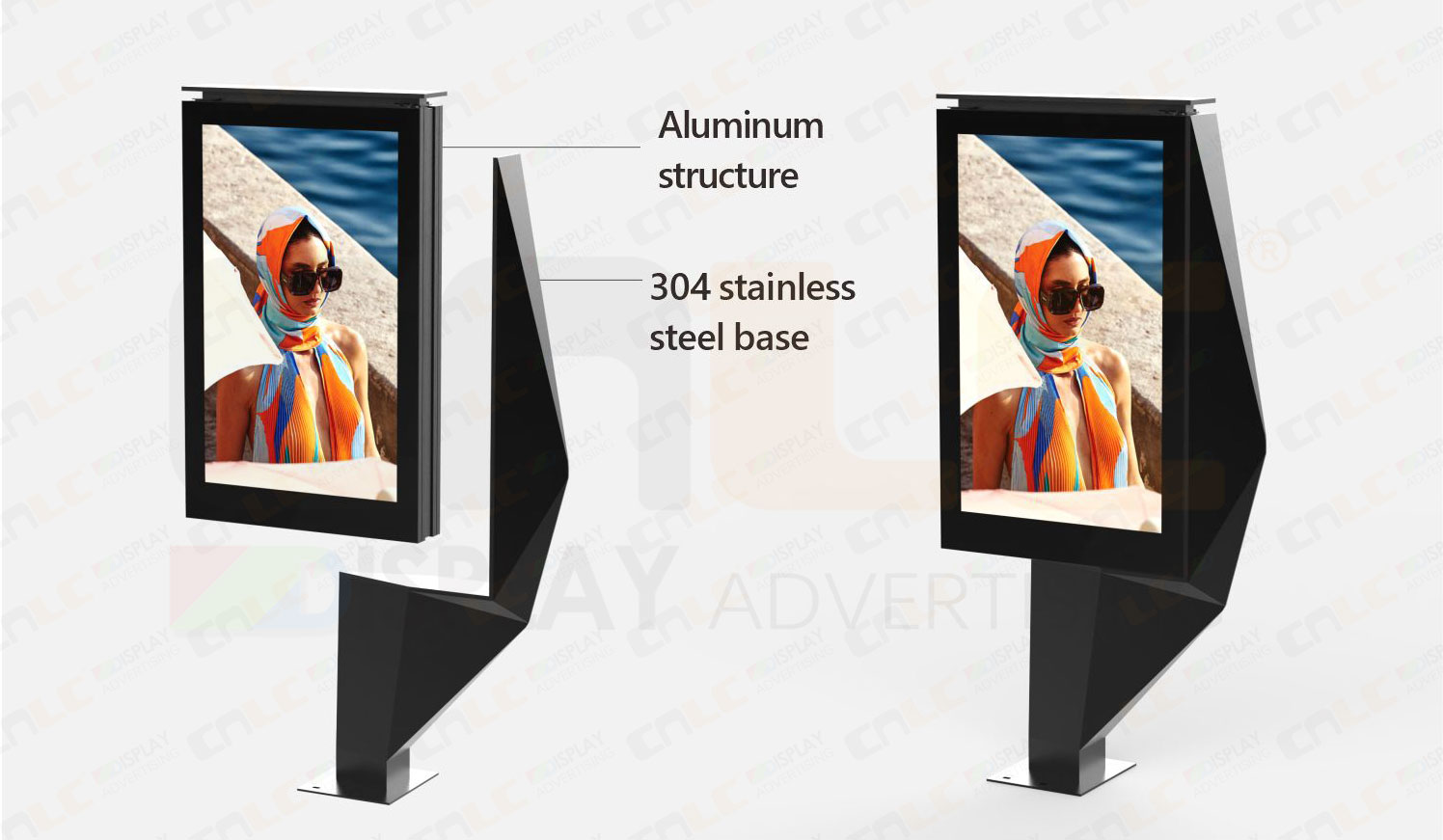

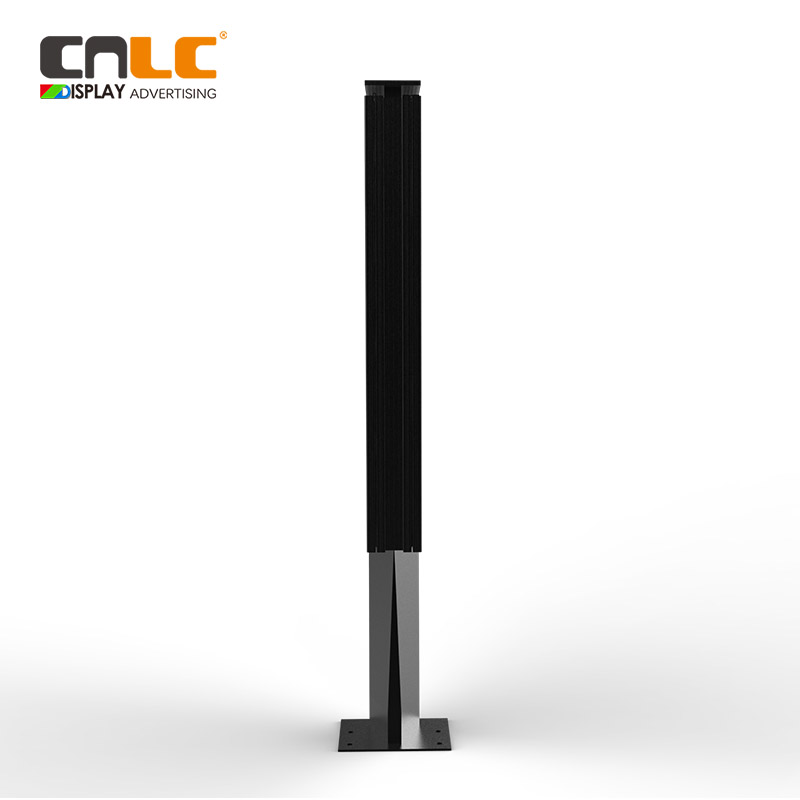

Aluminum Housing with 304 Stainless Steel Base
◆ Built with a lightweight aluminum cabinet combined with a 304 stainless steel side frame and bottom base, this outdoor LED totem display offers superior corrosion resistance, structural strength, and long-lasting performance. Perfect for desert climates, coastal areas, and high-traffic environments.

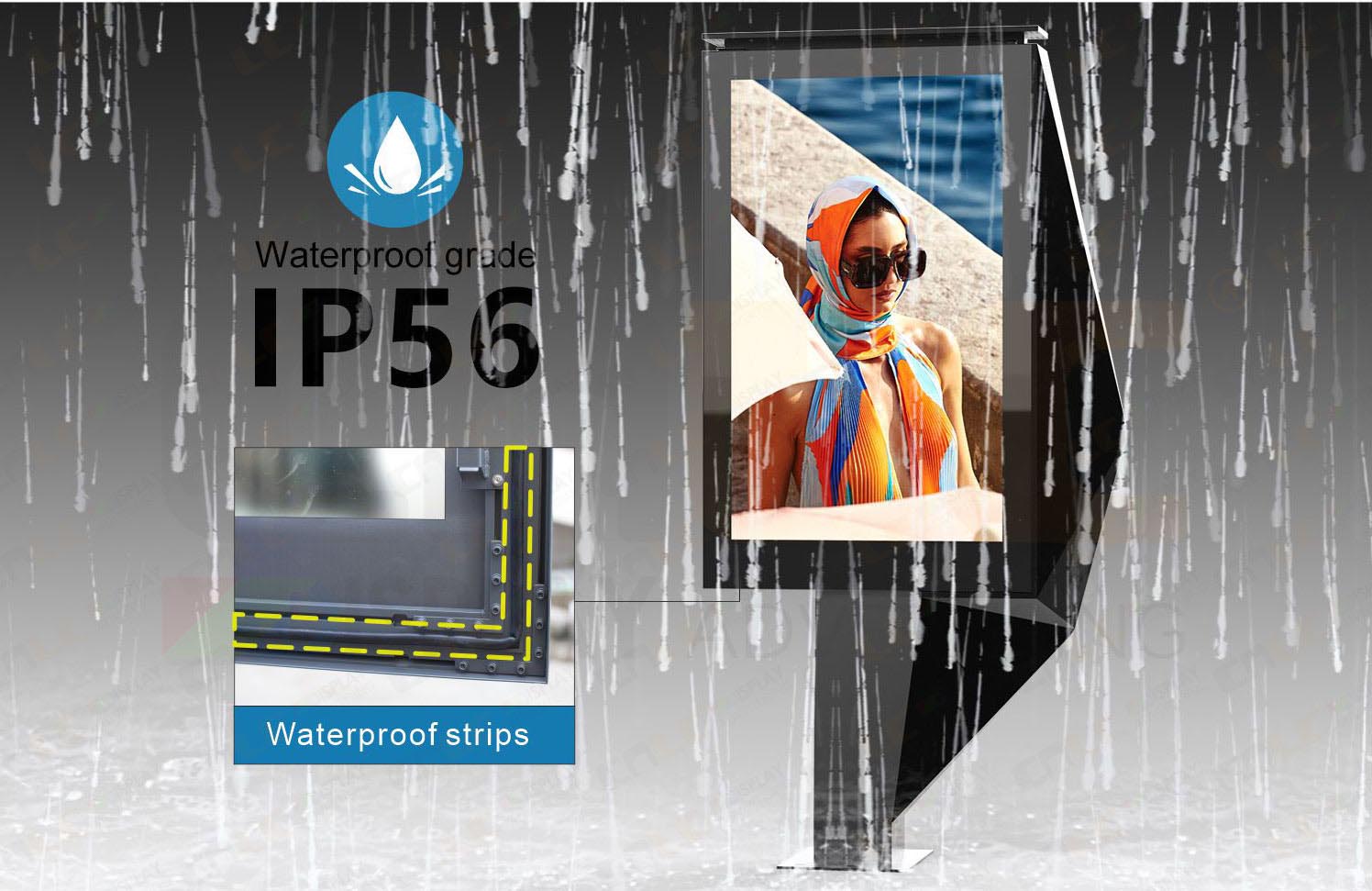

IP56 Weatherproof Protection – All-Weather Reliability
◆ Rated IP56, the outdoor LED totem display is fully protected against dust ingress and powerful water jets, ensuring uninterrupted performance during sandstorms, heavy rain, and high-humidity conditions. It is an all-weather solution for fuel stations, airports, and roadside LED advertising.

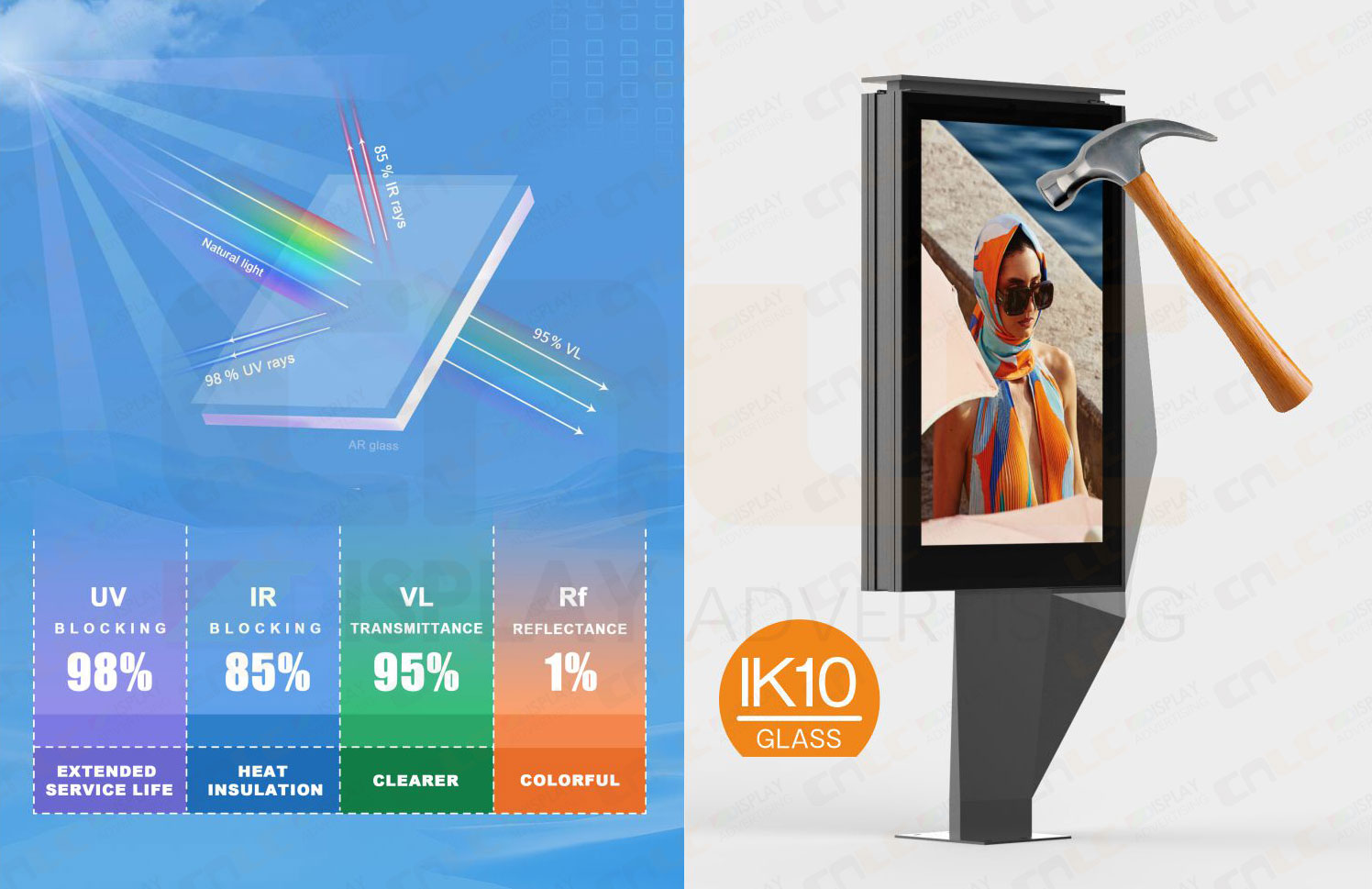

IK10-Rated Safety Glass with Anti-Reflective Coating – Durable and Clear
◆ This outdoor LED totem is built with IK10-rated laminated safety glass, delivering superior impact resistance against accidental damage and vandalism. The anti-reflective coating reduces glare, ensuring sharp and vivid visuals even under direct sunlight. This combination of strength and clarity makes the LED totem highly reliable for digital out-of-home (DOOH) advertising, guaranteeing both long-term durability and excellent viewing performance in demanding outdoor environments.

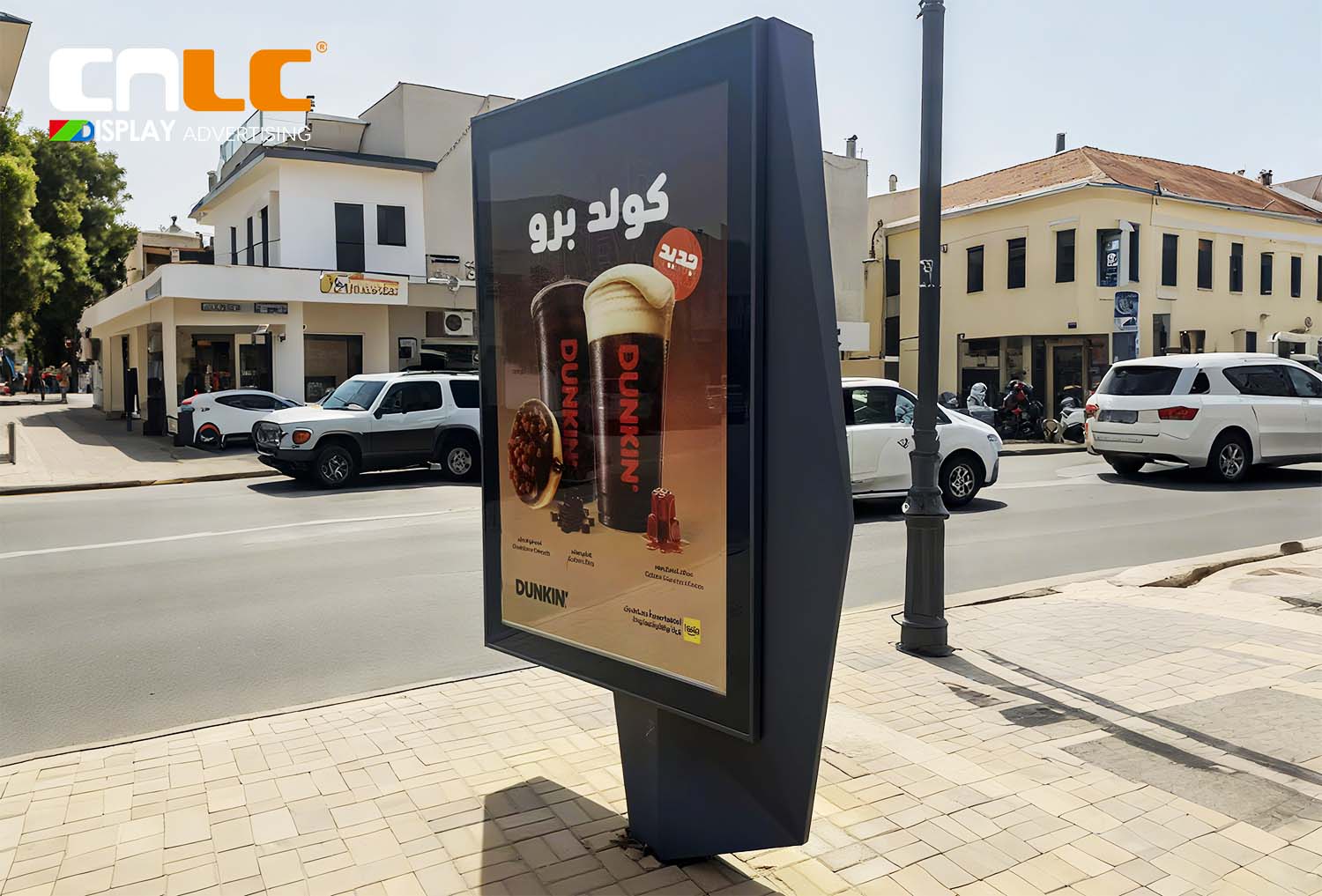

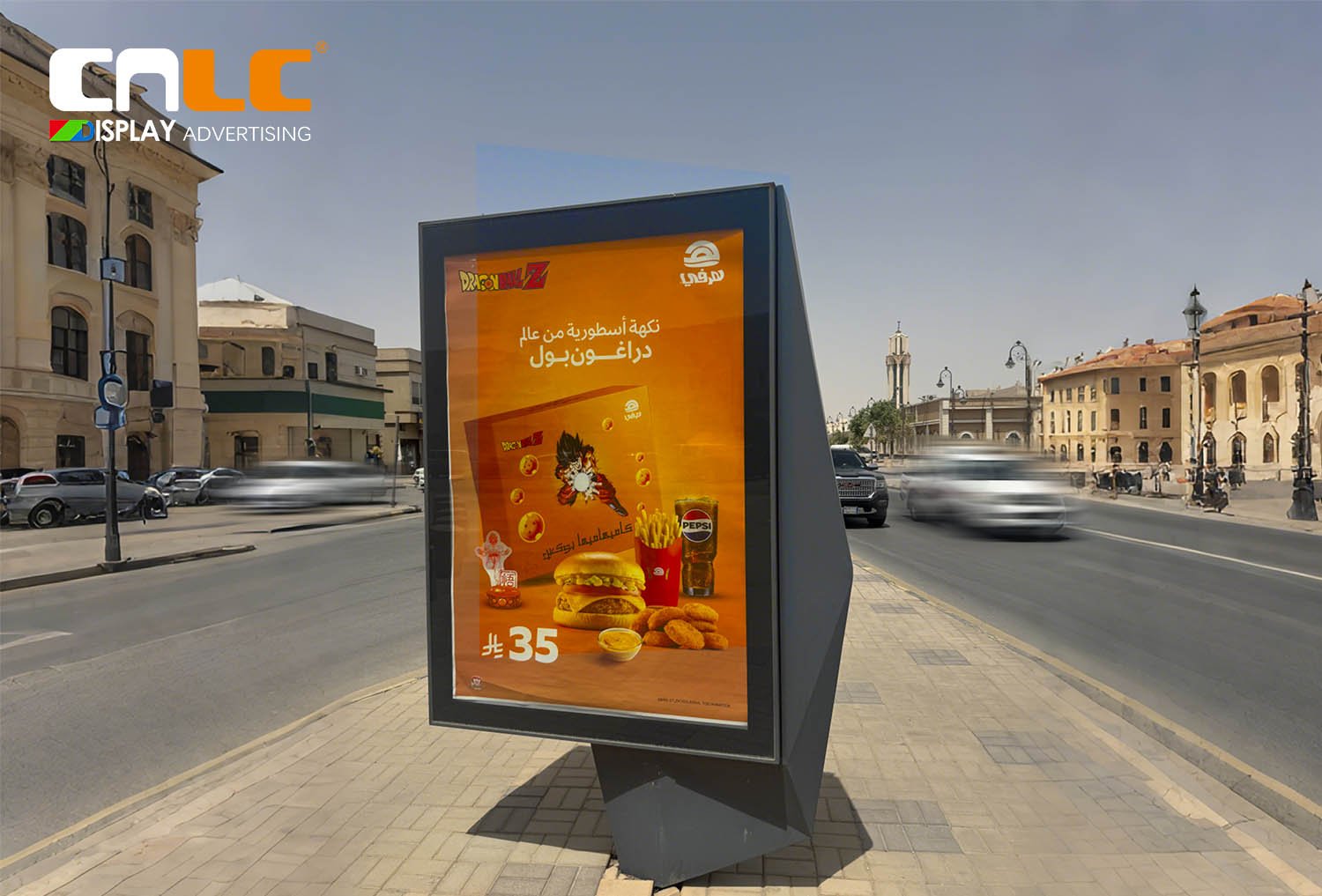

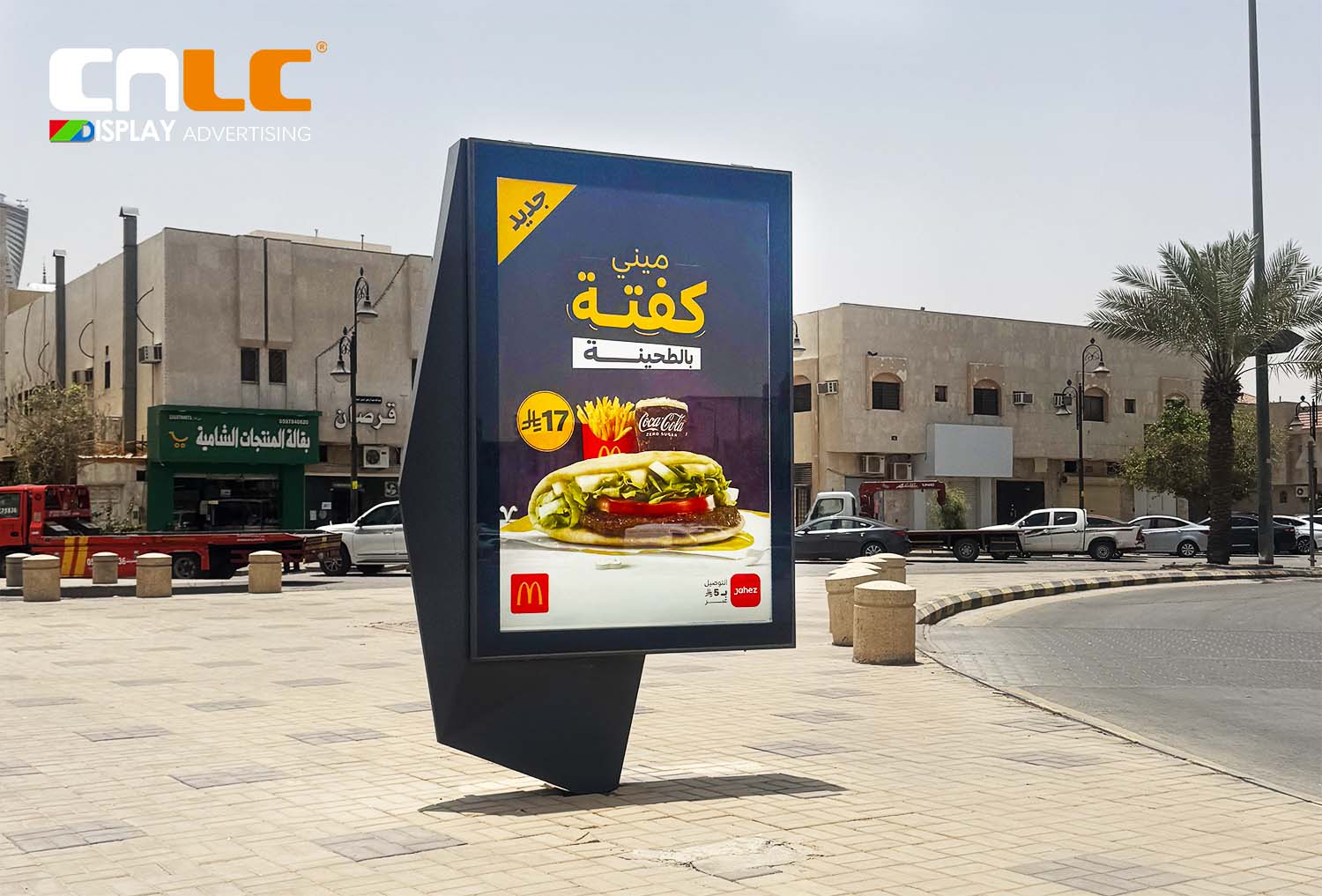

Project Cases
-
TECHNICAL SPECIFICATIONS
| Pixel Pitch(mm) | 2.976mm | ||
| Module resolution | 84*84 | ||
| Module size (mm) | 250*250 | ||
| Density (points/m²) | 112896 | ||
| Scan method | 1/13scan | ||
| LED Encapsulation | SMD1921 | ||
| Pixel configuration | 1R1G1B | ||
| Material of Frame and Support Structural | Aluminum profile and steel frame | ||

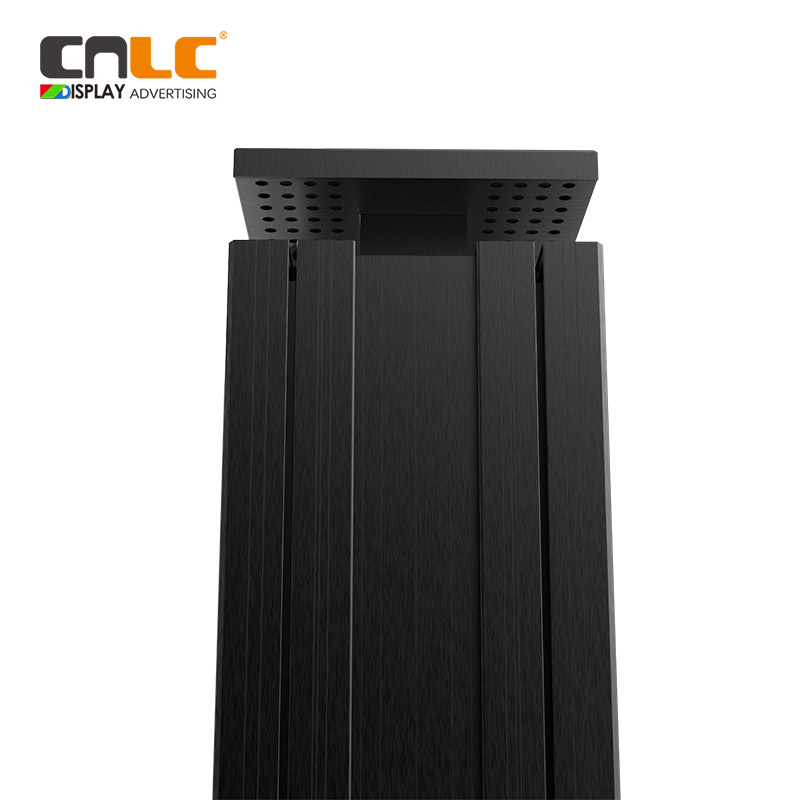

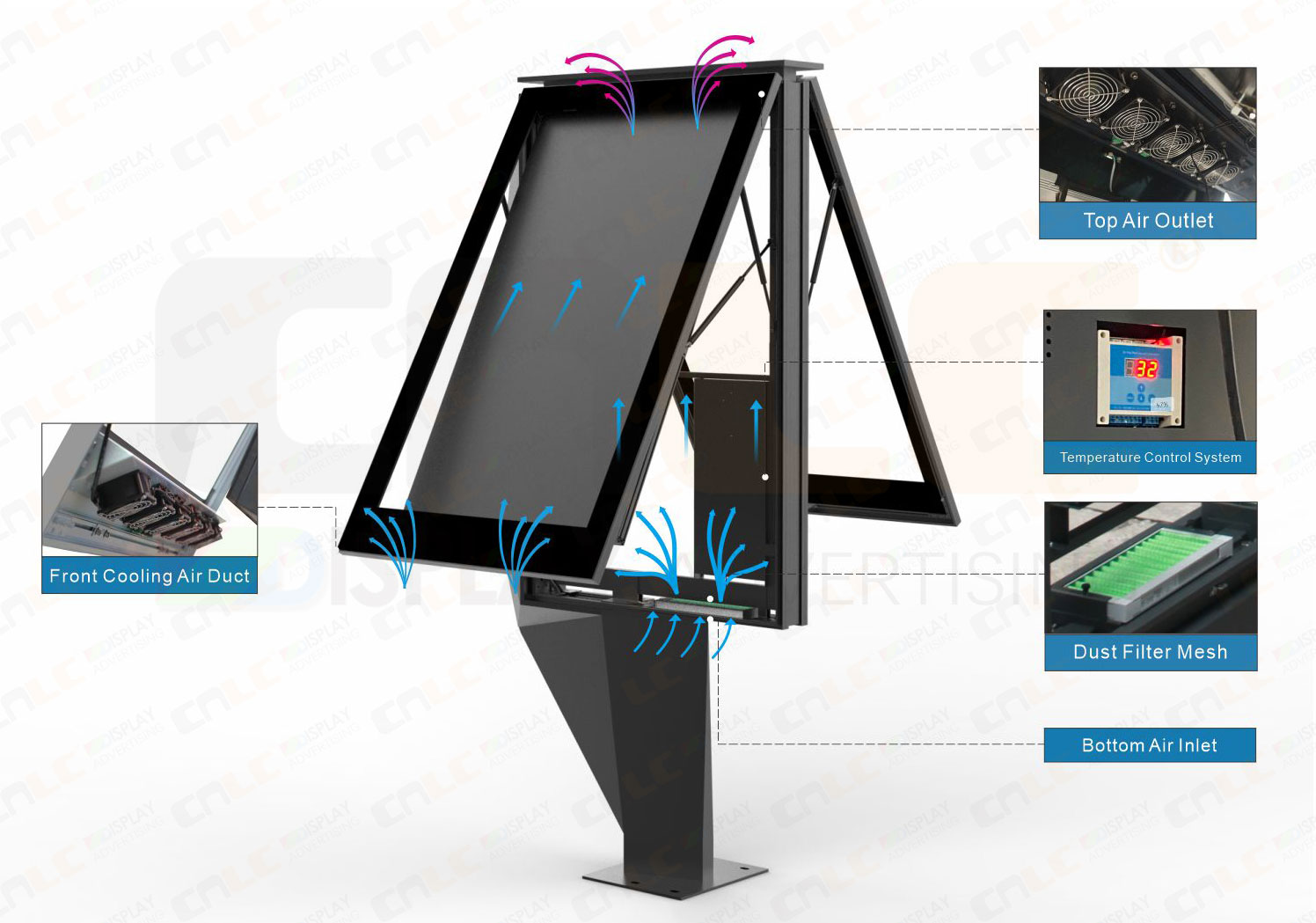

| Cooling system | Build in cooling fans | ||
| Embedded heater | Optional | ||
| Media update | Remote control (LAN and WIFl) | ||
| Operating Ambient Temperature | -20℃~+60℃ | ||
| Waterproof level | Front IP56 | ||
| Maintenance method | Back | ||
| Refresh frequency (Hz) | 3840 | ||
| Brightness(nits) | 5500/6500 | ||
| Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
| Contrast Ratio | 4000:1 | ||
| Energy Saving design | 4.2-5Vvoltagedesign | ||
| Ave.Power Consumption(W/m²) | 342 | ||
| Max. Power Consumption(W/m²) | 684 | ||
The CNLC P2.9 high-brightness outdoor LED totem delivers 5,500–6,500 nits of vivid daylight visibility. Featuring a durable aluminum housing with 304 stainless steel base, an advanced cooling system, IP56 weatherproofing, and IK10 laminated safety glass, this LED display ensures reliable DOOH advertising in streets, public squares, plazas, and other outdoor environments. Ideal for digital signage requiring long-lasting performance, impact resistance, and all-day readability.
