Outdoor LED Totem with 6500 Nits Display – Double-Sided for Hot Climates

Double-Sided Totem Featuring Static Poster Lightbox with Backlit Illumination

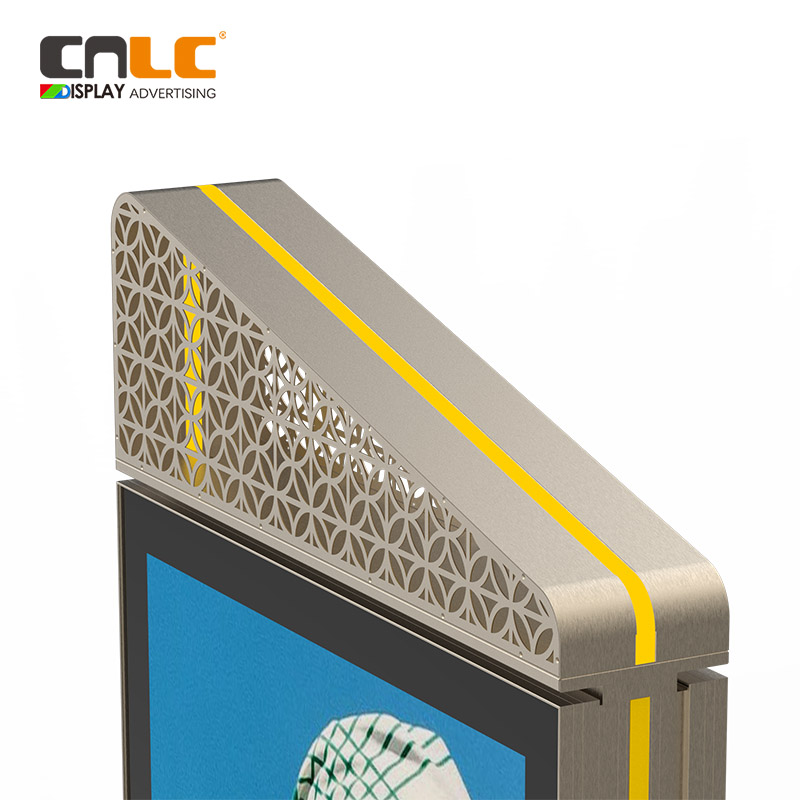

Precision-Crafted Aluminum Housing for Outdoor LED Totem

Active Cooling System with Intelligent Temperature Control and Fan Ventilation

LED Totem with Integrated Side Light Strips for Enhanced Night Visibility

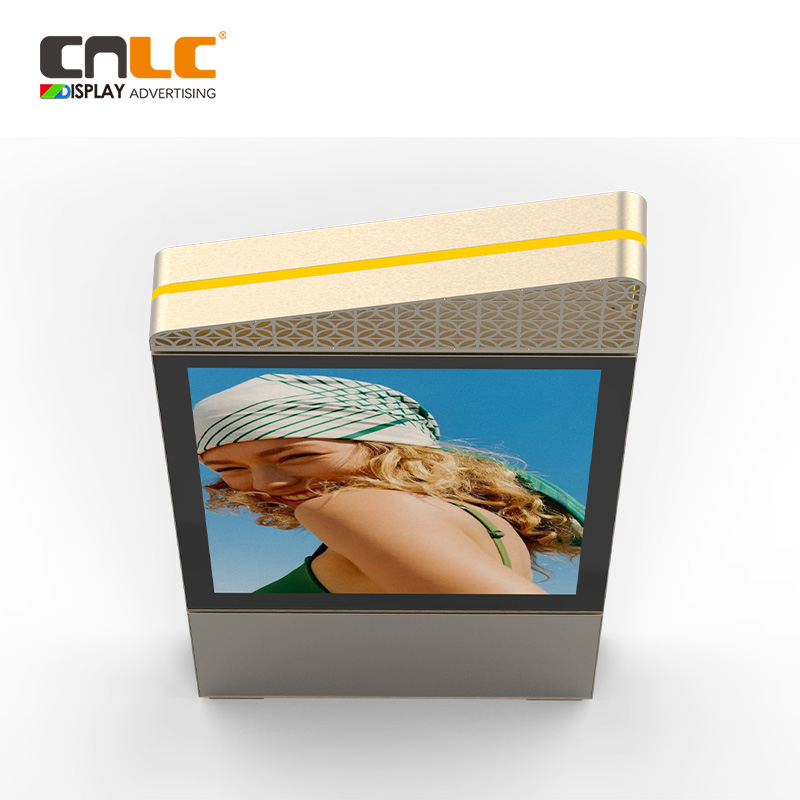

Outdoor LED Totem Display with High Brightness P2.9 Module

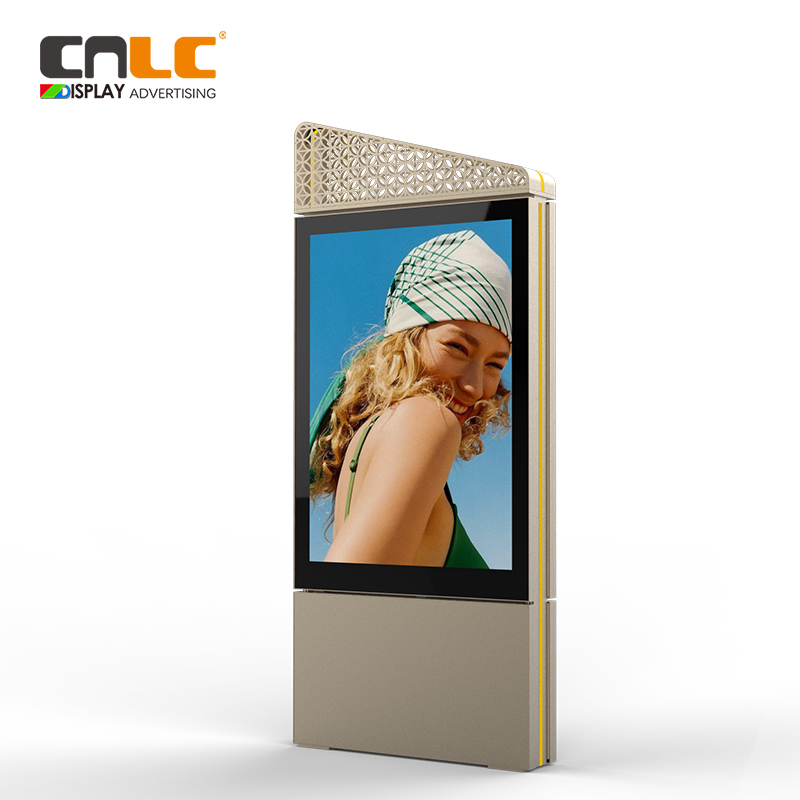

Outdoor LED Totem with 6500 Nits Display – Double-Sided for Hot Climates

Designed for extreme outdoor environments like the Middle East, this double-sided LED totem features a high-brightness P2.9 display with 5500 to 6500 nits, ensuring excellent visibility even under direct sunlight. The aluminum structure provides strength with reduced weight, while an intelligent active cooling system with temperature-controlled fans keeps the internal temperature stable. Combined with IP56 protection, a rear static lightbox, and a customizable illuminated logo, it's the ideal solution for demanding DOOH advertising applications.

رقم الصنف :
CNLC-ED-SM0515
حجم :
Customize
وضح :
5500/6500 cd/m²
نسبة الدقة :
SMD
مادي :
Aluminum Structure
لون :
Black / Silver / Grey / Customize
درجة للماء :
IP56

استعلام

تفاصيل المنتج

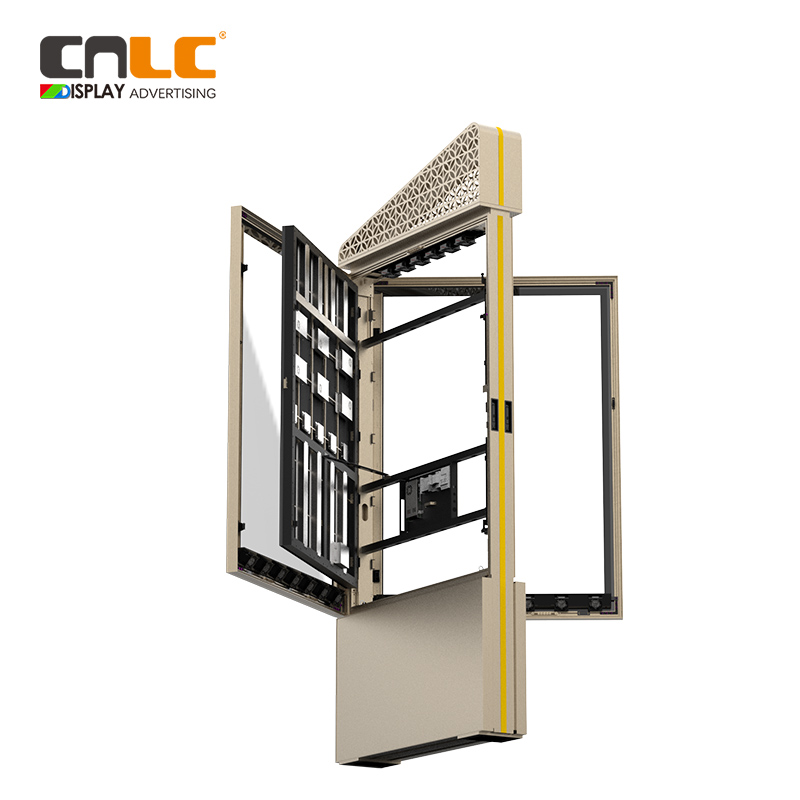

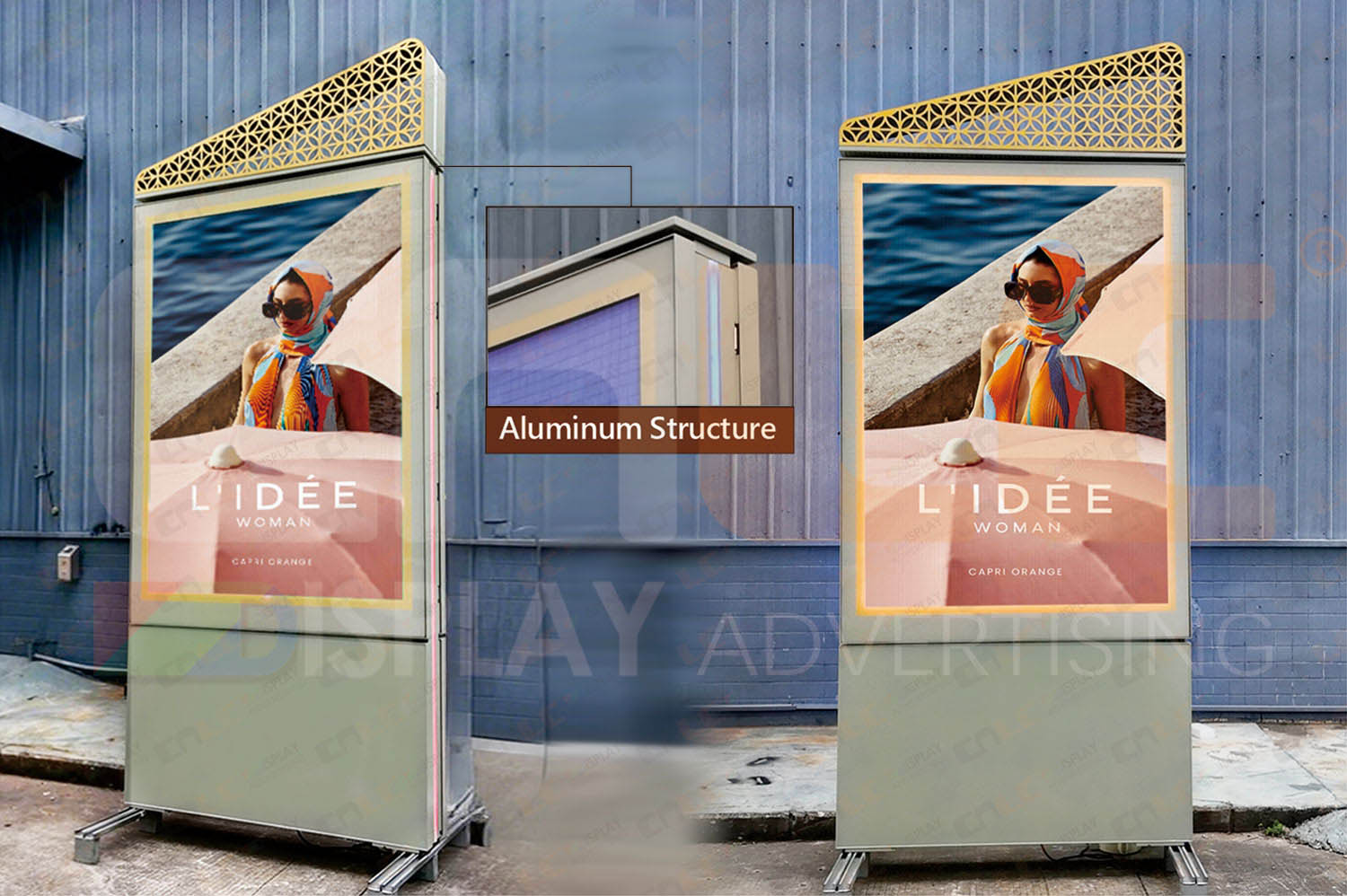

Durable Aluminum Structure for Harsh Outdoor Conditions

◆ Designed for outdoor DOOH applications in the Middle East, this LED totem display features a high-strength aluminum enclosure that resists corrosion, sand, and extreme heat. The lightweight yet rigid frame ensures structural stability while allowing efficient heat dissipation — making it ideal for high-temperature environments. Its sleek and professional design enhances durability and aesthetic appeal in demanding public spaces.

Aluminum LED Totem Display for Outdoor DOOH Advertising

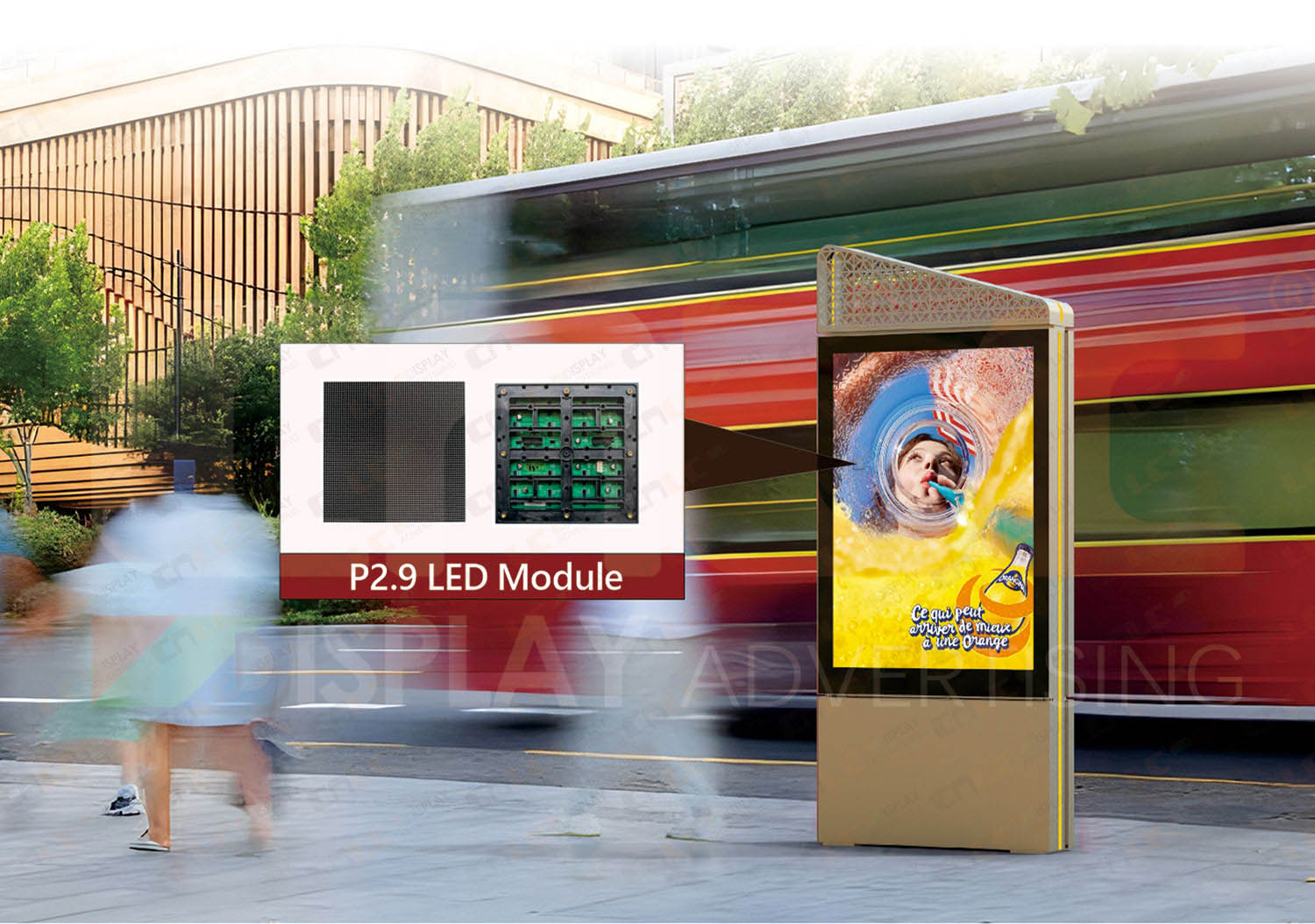

Sunlight-Readable P2.9 LED Display

◆ Equipped with a P2.9 fine-pitch LED module, this totem delivers ultra-clear images even at close viewing distances. With brightness options of 5500 nits or 6500 nits, it ensures excellent readability under direct sunlight — making it ideal for outdoor DOOH applications that demand both clarity and impact.

P2.9 Fine Pitch LED Module with 5500/6500 Nits Brightness

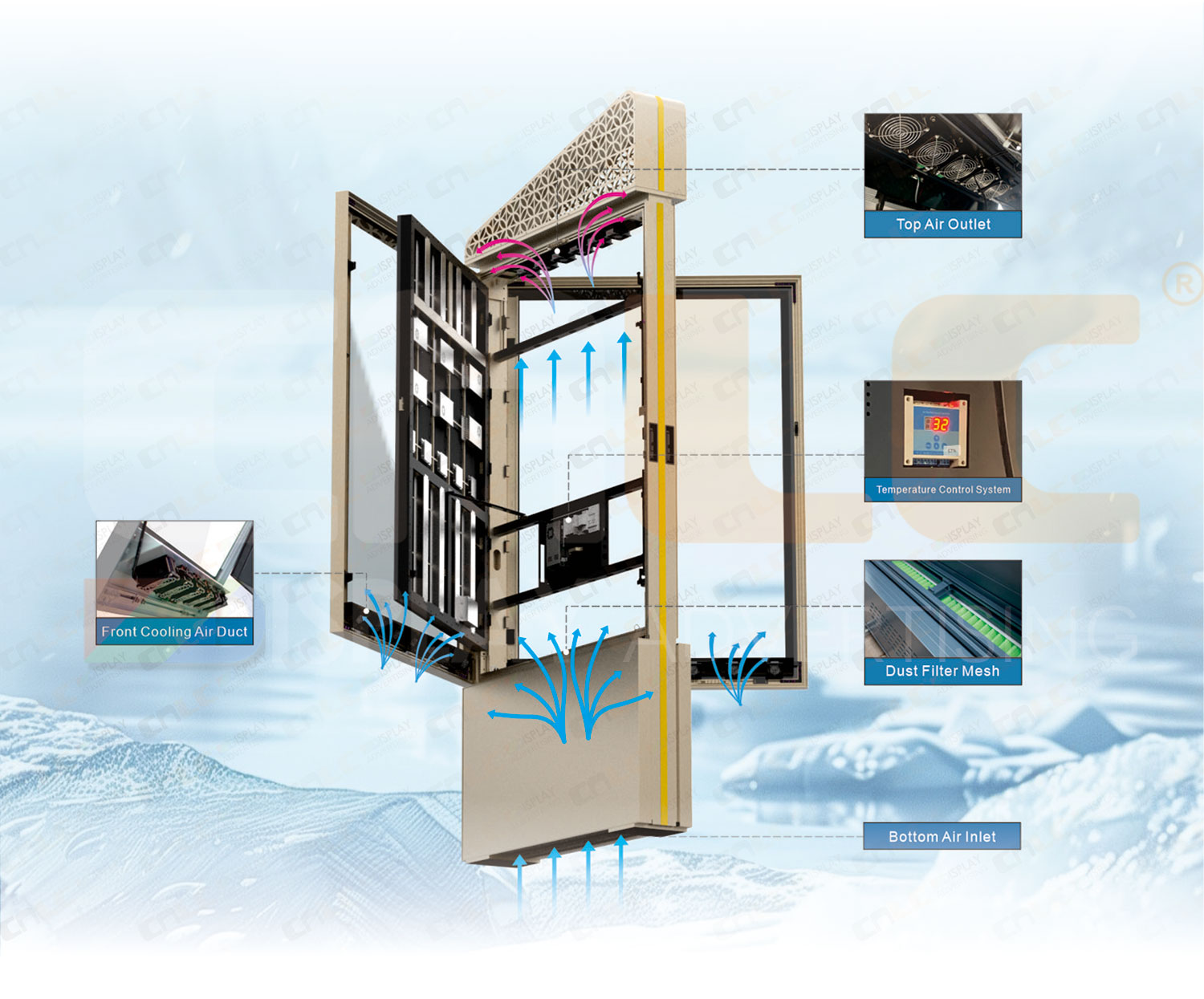

Advanced Cooling System for Reliable Performance

◆ This outdoor LED totem is engineered with a front cooling air duct, bottom air inlet, and top air outlet to create a powerful natural airflow path. Combined with an intelligent temperature control system and internal dust filters, it ensures stable operation even under the intense heat common in Middle Eastern climates. The optimized ventilation design protects components, extends product lifespan, and guarantees consistent DOOH performance in harsh environments.

Outdoor LED Totem with Smart Cooling and Airflow Design

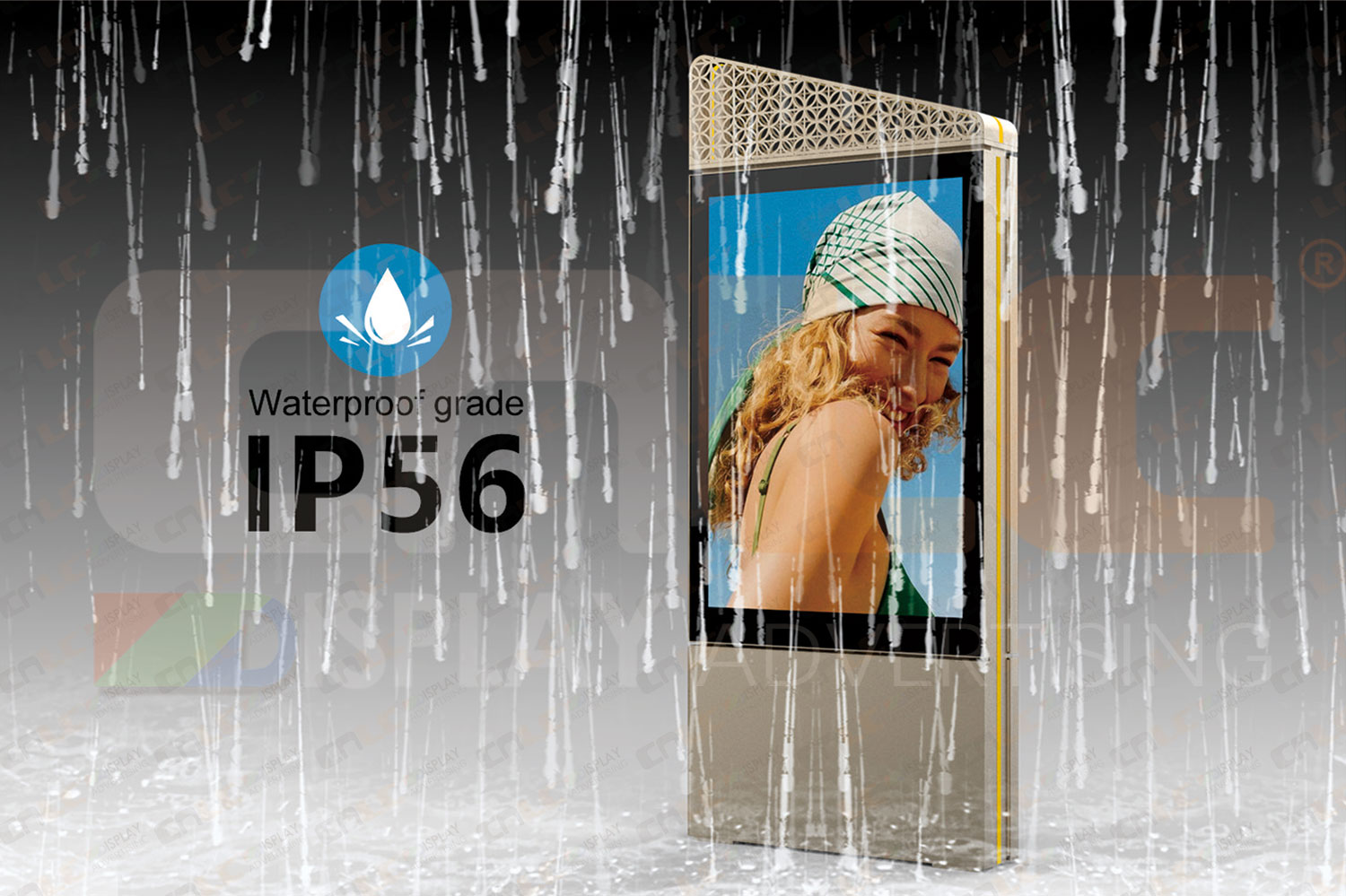

Rugged IP56 Protection for Outdoor Reliability

◆ Built for challenging outdoor environments, this LED totem display is rated IP56, providing robust protection against dust ingress and powerful water jets. Whether exposed to sandstorms, rain, or humidity — especially in Middle Eastern climates — it ensures stable, long-term performance for outdoor DOOH deployments.

IP56 Outdoor LED Totem for Dust and Water Resistance

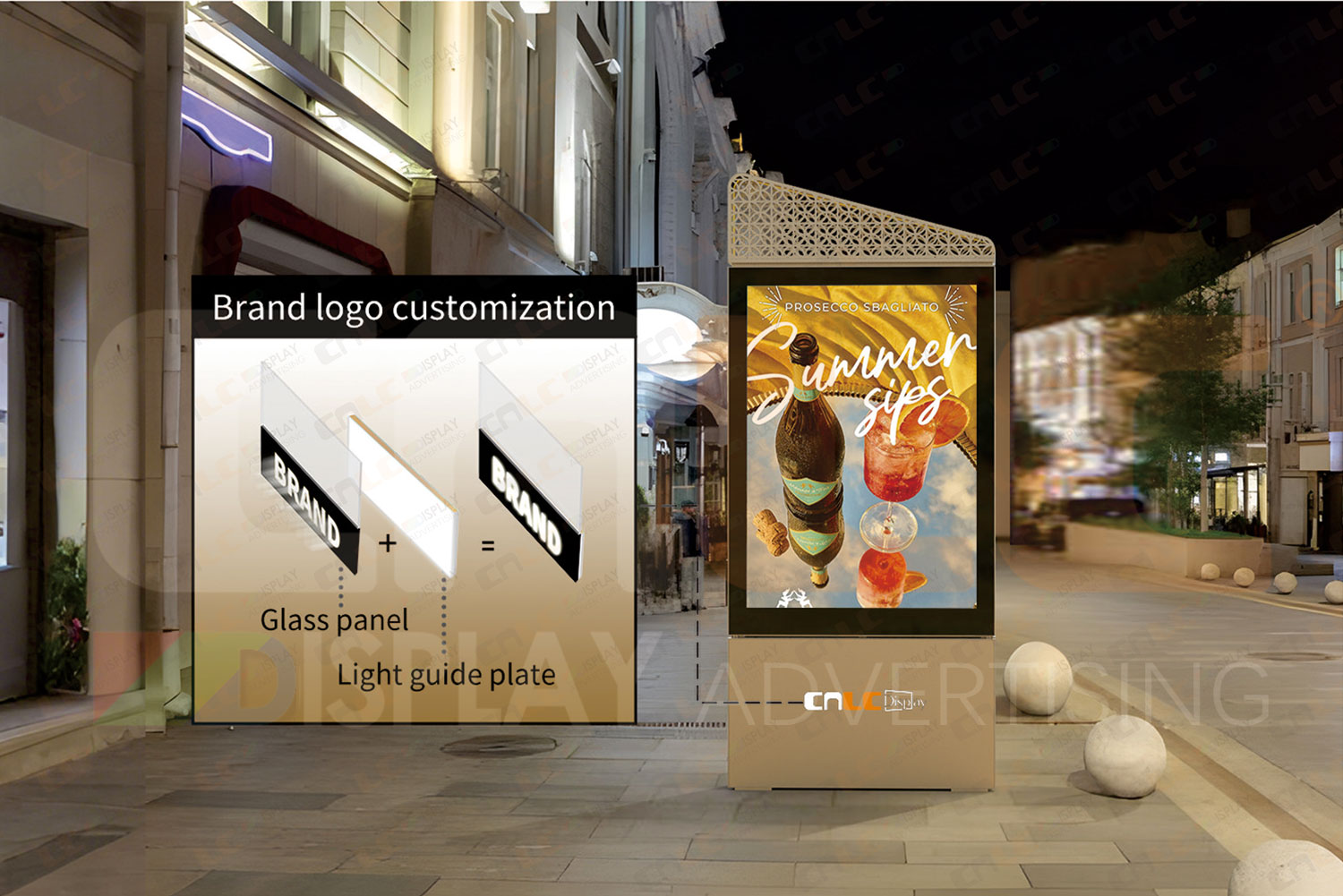

Customizable Illuminated Logo for Brand Visibility

◆ This LED totem supports a custom backlit logo, allowing businesses to display their brand prominently — even at night. The illuminated logo enhances brand recognition and adds a professional touch to your DOOH installations, making it ideal for retail chains, public spaces, and transportation hubs.

LED Totem with Custom Backlit Brand Logo for Outdoor Advertising

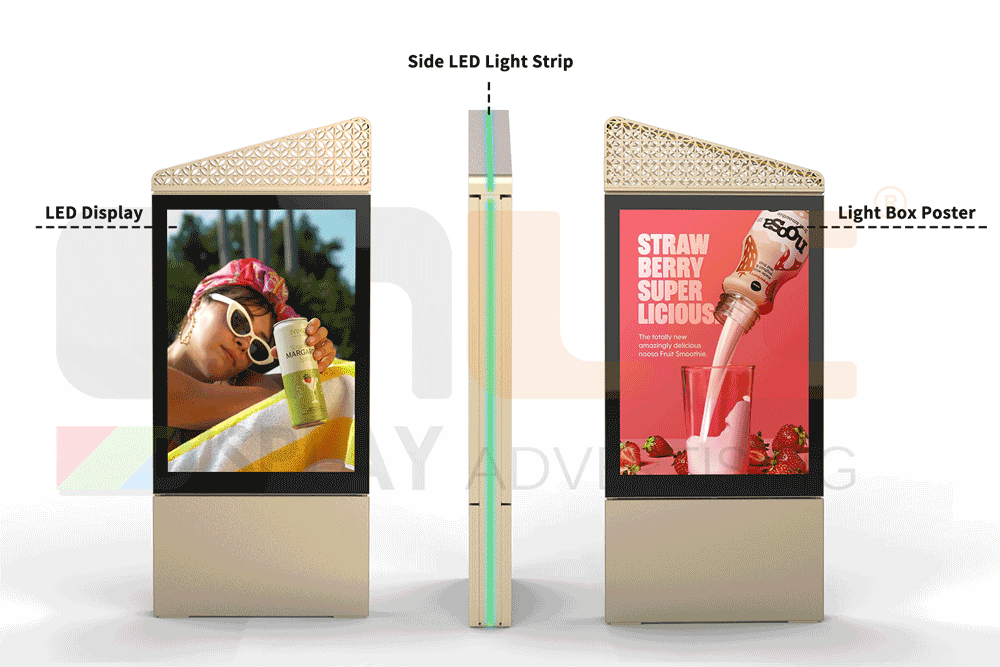

Dual-Sided Design: LED Display + Light Box

◆ This versatile double-sided totem features a dynamic LED display on one side and a static light box on the other, maximizing advertising impact for outdoor DOOH campaigns. The LED screen delivers vivid, high-brightness visuals, while the light box supports traditional posters with internal illumination. Perfect for urban streets, malls, and petrol stations, this hybrid format enhances brand visibility from both directions.

TECHNICAL SPECIFICATIONS

Pixel Pitch(mm)	2.976mm
Module resolution	84*84
Module size (mm)	250*250
Density (points/m²)	112896
Scan method	1/13scan
LED Encapsulation	SMD1921
Pixel configuration	1R1G1B
Material of Frame and Support Structural	Aluminum profile and steel frame
Cooling system	Build in cooling fans
Embedded heater	Optional
Media update	Remote control (LAN and WIFl)
Operating Ambient Temperature	-20℃~+60℃
Waterproof level	Front IP56
Maintenance method	Back
Refresh frequency (Hz)	3840
Brightness(nits)	5500/6500
Viewing angle (horizontal/vertical)	170°/170°±5°
Contrast Ratio	4000:1
Energy Saving design	4.2-5Vvoltagedesign
Ave.Power Consumption(W/m²)	342
Max. Power Consumption(W/m²)	684

WHY CNLC OUTDOOR DIGITAL DISPLAYS？

IP rating aluminum profile casing resists dust,rain,snow and anti-corrosion.
Easy to install, moving to right place ,connect to power and mount the bolts on the ground. Lower the labor costs for installation and maintenance.
Close visual and auditory impact allows the viewers to more realistically feel the advantages of the product, which is the best way to promote products and services.
IK10 vandal resistance and intelligent thermal managment ensure the durability of CNLC outdoor digital displays.
Smoothly operating under temperature from -35 to 60 ℃，even in mountain and seaside.
