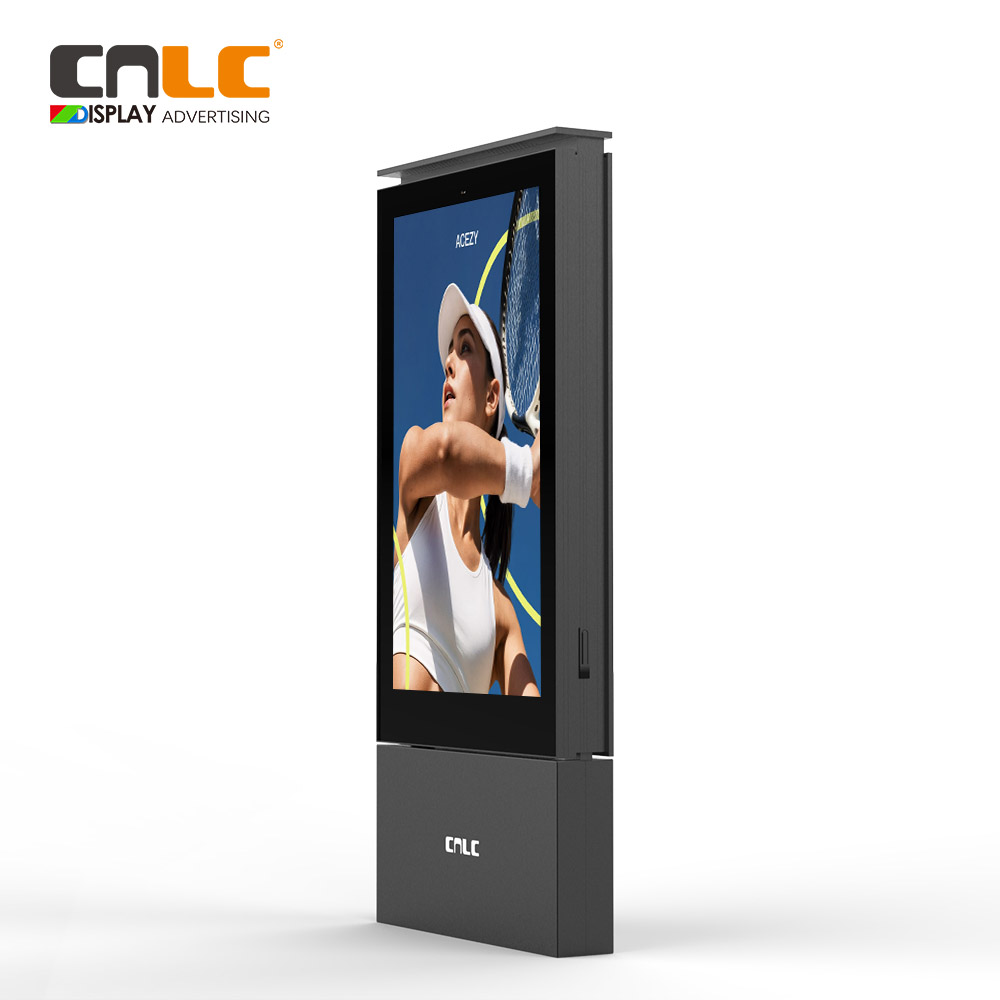

Designed for demanding outdoor environments, the CNLC Outdoor LCD Display delivers up to 3500 nits of high brightness for outstanding visibility even under direct sunlight. Built with a durable aluminum cabinet, advanced thermal management, IP65 weather protection, and IK10 impact resistance, it provides reliable 24/7 performance in commercial applications. Ideal for digital signage, smart city projects, transportation, retail, and public information displays, it combines exceptional image quality with long-term outdoor reliability.
رقم الصنف :
LC-OU-190VAحجم :
Customizeوضح :
3500 cd/m²نسبة الدقة :
2k / 4kمادي :
Aluminum Structureلون :
Black / Silver / Grey / Customizeدرجة للماء :
IP65

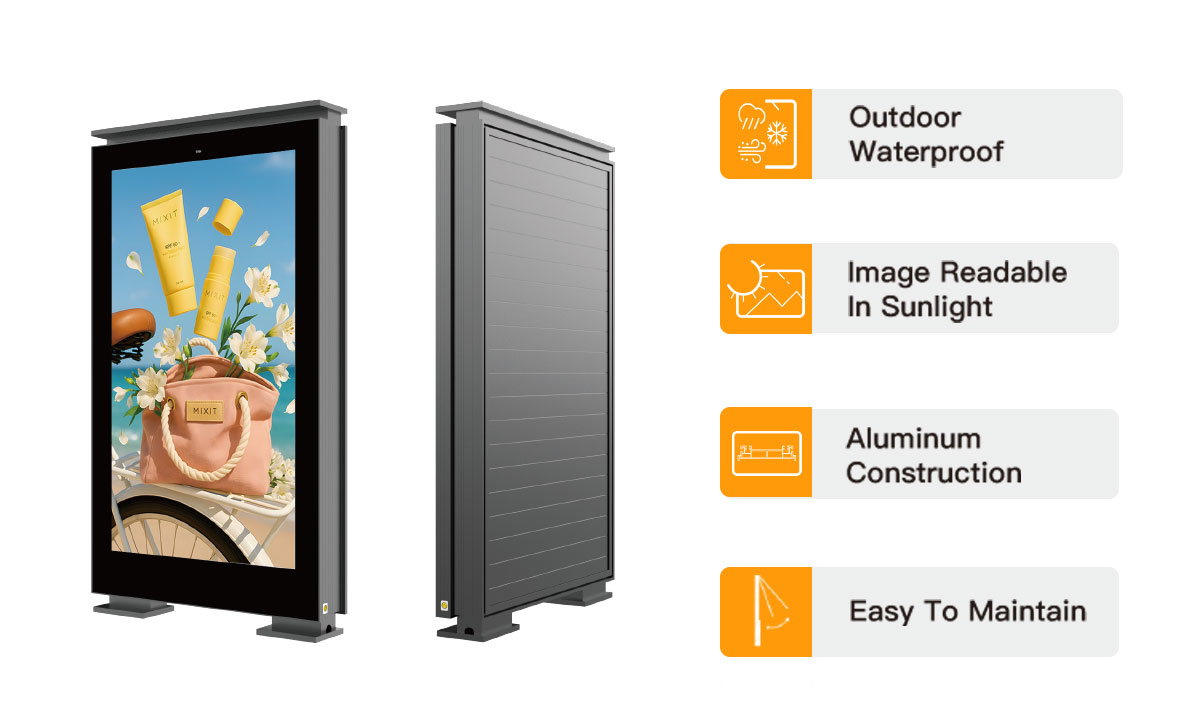

Built for High-Visibility Outdoor Digital Signage
◆ Featuring up to 3500 nits of brightness, our outdoor LCD digital signage delivers excellent readability in bright daylight. Whether installed in shopping streets, transit stations, commercial plazas, or smart city projects, it ensures eye-catching content and dependable outdoor performance.

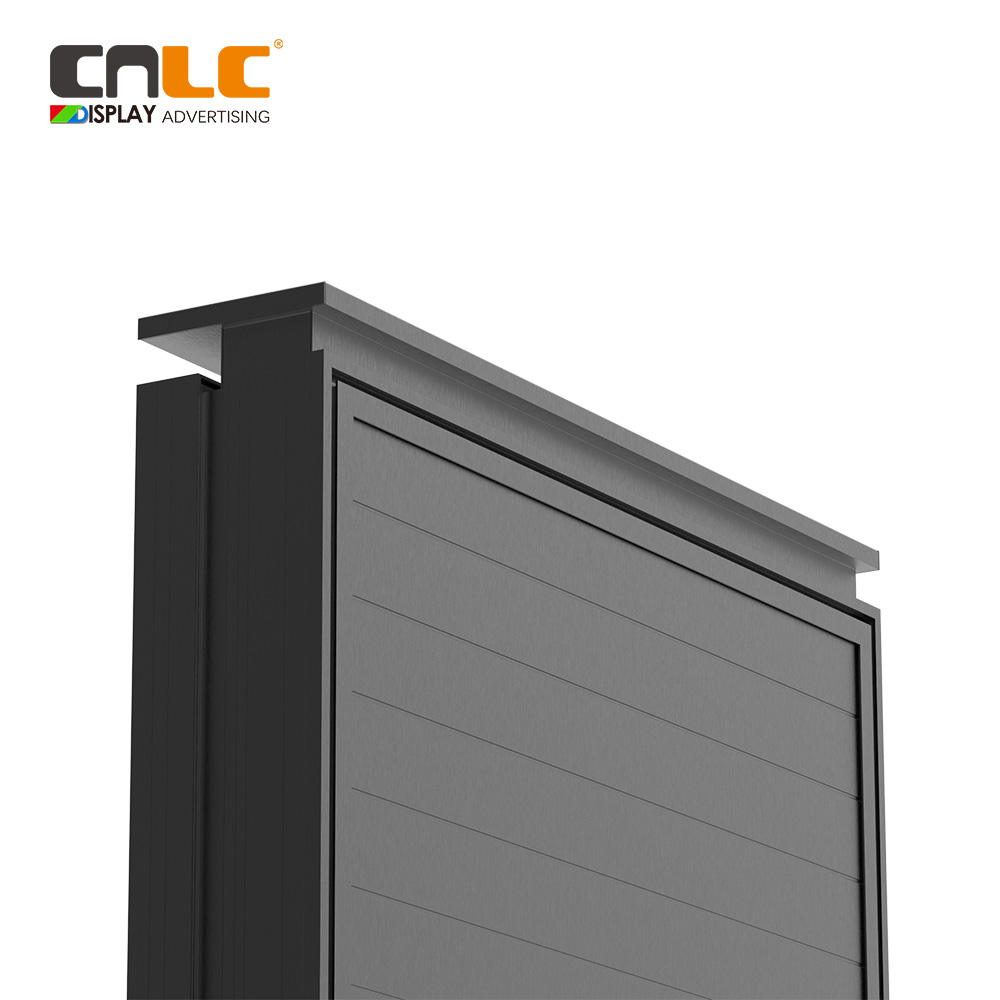

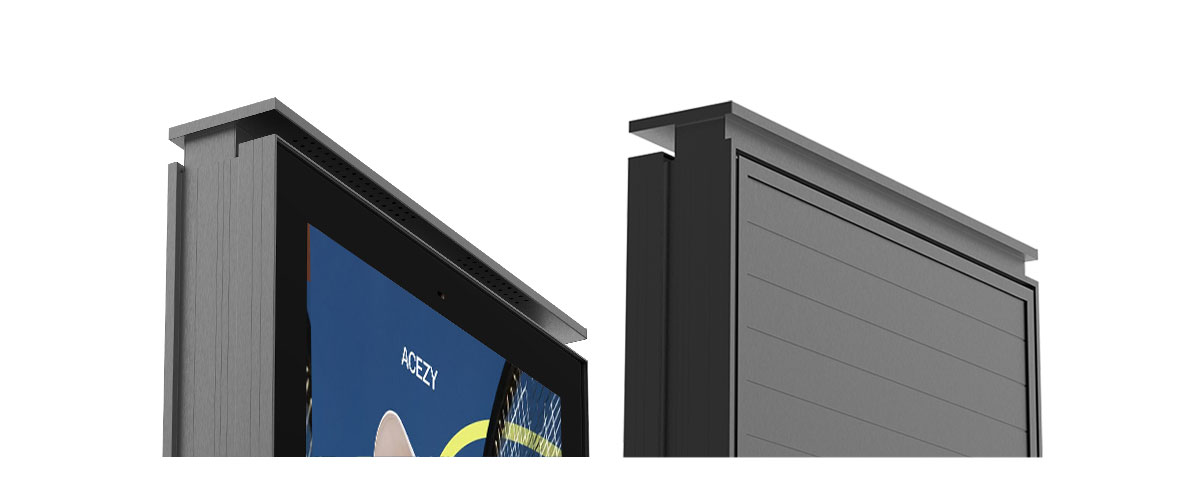

Aluminum structure
◆ The Outdoor LCD Kiosk features a robust aluminum alloy casing, which is lightweight yet highly durable and resistant to corrosion, making it ideal for various harsh outdoor environments. This premium aluminum casing also offers excellent heat dissipation and structural stability, ensuring long-term operation in high temperatures or humid conditions while maintaining an elegant and intact appearance.

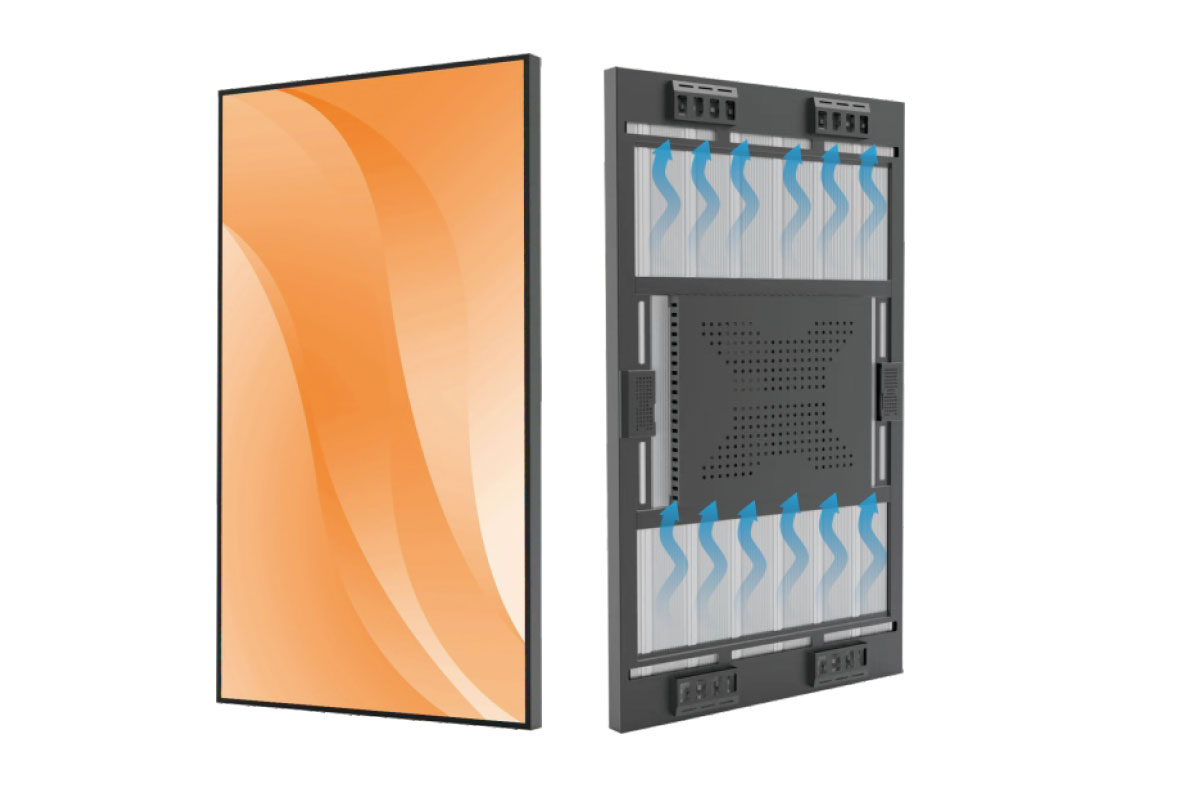

◆ The Aluminum Module is engineered for Outdoor LCD Kiosk, Outdoor LCD Digital Signage, and Outdoor LCD Display applications. The integrated aluminum heat dissipation design quickly transfers heat away from the LCD panel, maintaining stable brightness and reliable continuous operation. Advanced surface finishing and precision assembly ensure a clean, premium appearance and strong structural consistency.
IP65 LCD Display
◆ The IP65 rating ensures that our outdoor LCD display is ideal for various outdoor applications. Its robust waterproof design offers reliable protection against water, dust, rain, moisture, and sand, ensuring exceptional durability and performance in harsh outdoor environments.

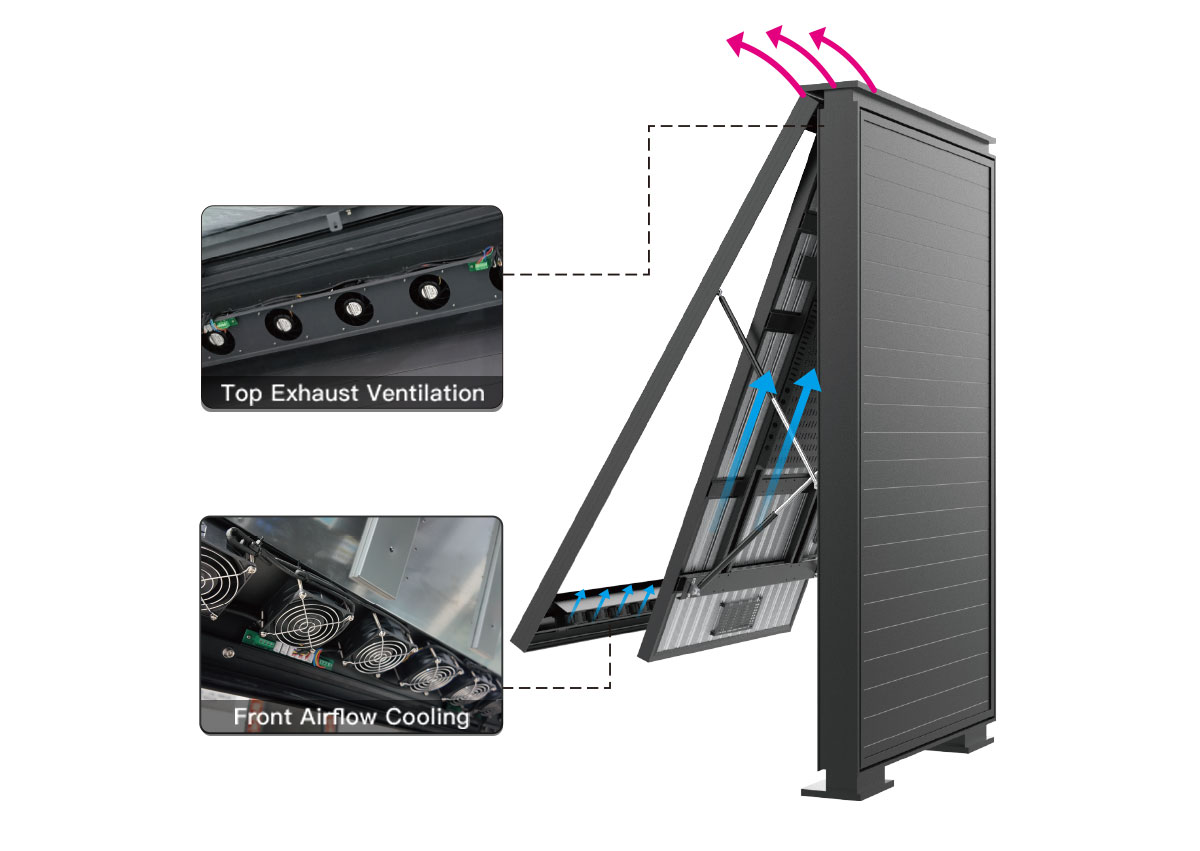

Engineered for Thermal Stability
◆ This outdoor interactive kiosk features a front air duct cooling system combined with a top air exhaust design and a dust-proof filter, ensuring efficient heat dissipation and clean internal airflow. The optimized airflow path effectively removes heat from the display and internal components, helping maintain stable performance for long-term operation in demanding outdoor and smart city environments.
Professional IK10 Testing for Outdoor LCD Displays
◆ Every outdoor LCD display is verified using our dedicated IK10 testing equipment to evaluate impact resistance under controlled laboratory conditions. This in-house testing process helps ensure reliable durability and dependable performance for long-term outdoor applications.

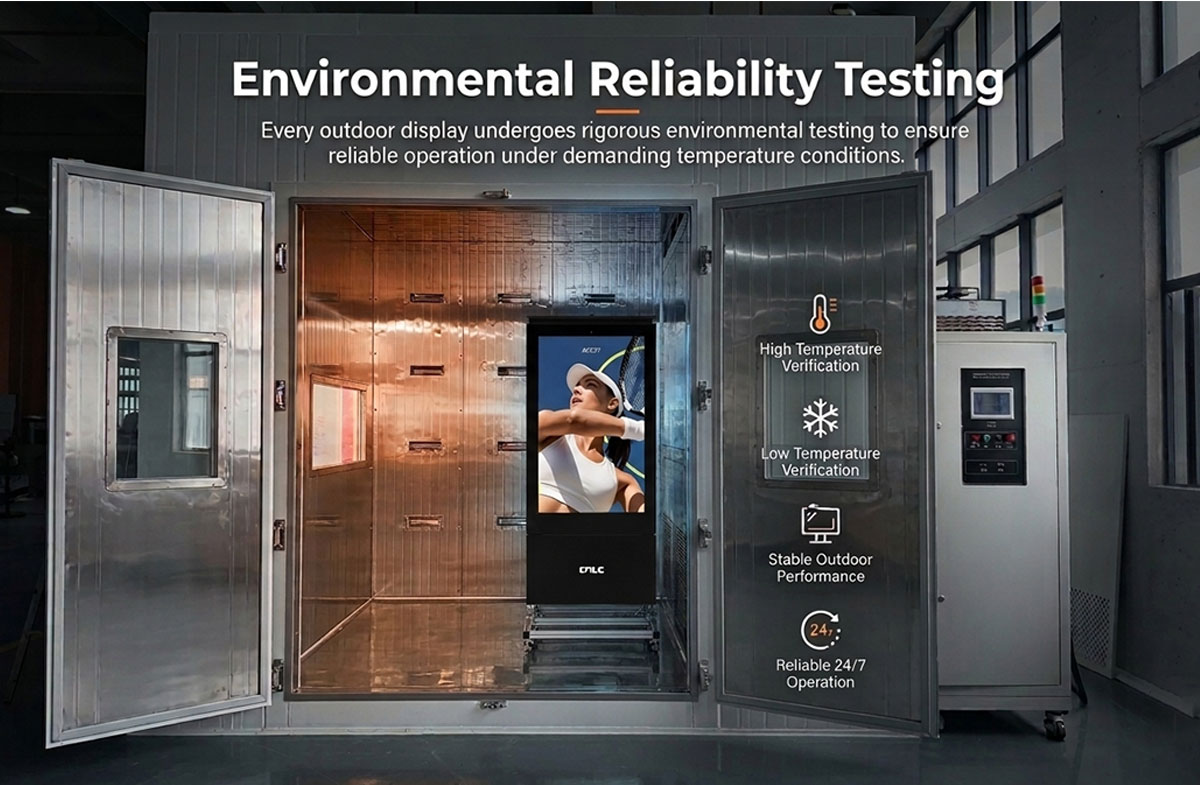

Stable Performance in Extreme Temperatures
◆ Designed for demanding outdoor environments, our outdoor LCD display maintains stable brightness, reliable operation, and long-term performance under both high and low temperature conditions. Every unit is validated in our environmental testing chamber to ensure dependable performance before delivery.

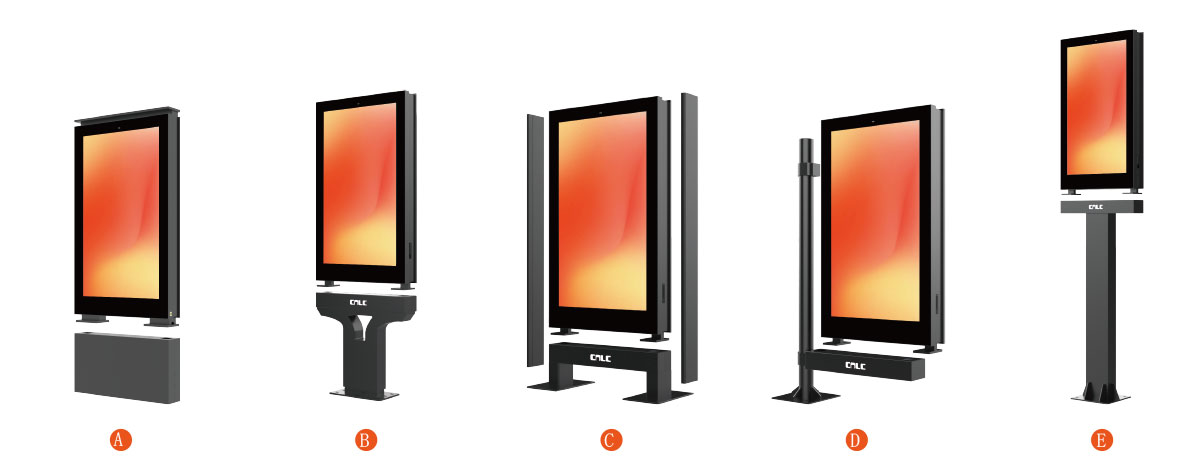

Flexible Mounting Options for Different Installations
Our outdoor LCD display offers multiple mounting base options to meet diverse installation requirements. Whether for sidewalks, commercial plazas, transportation hubs, or public spaces, the flexible base designs ensure secure installation and seamless integration into different outdoor environments.
Certified for Global Quality and Compliance
| LCD Panel | 65"LG | 75"LG |
86"LG |

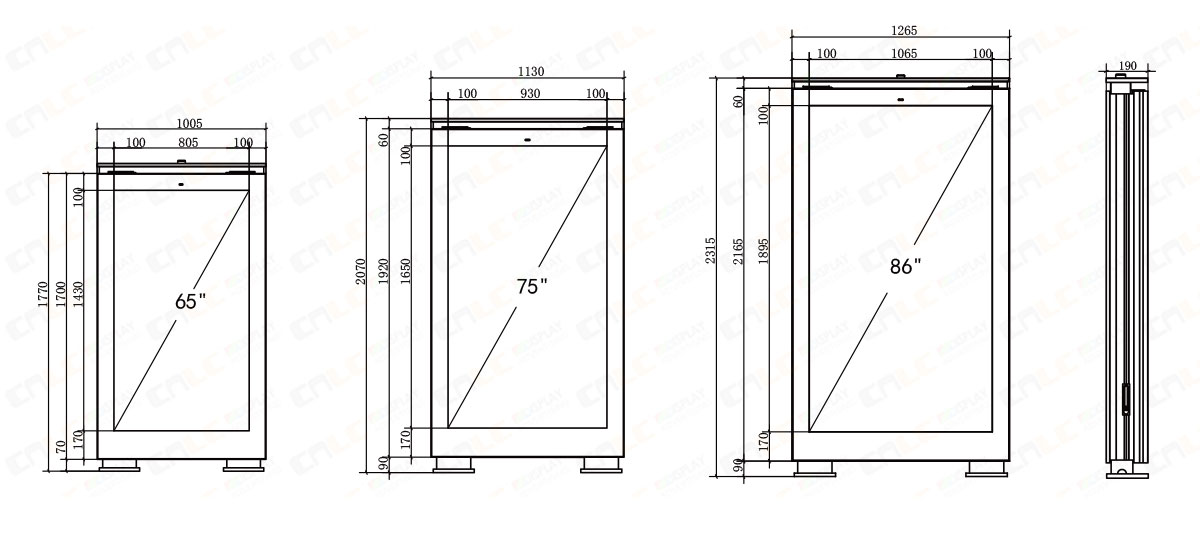

| Display Size(mm) | 805*1430 | 930*1650 | 1065*1895 |
| Overall Size (mm) | 1005*2100*190 | 1130*2400*190 | 1265*2650*190 |
| Base height(mm) | 70 | 70 | 70 |
| Power Consumption(w) | 400W | 480W | 485W |
| Resolution | 1920*1080 / 3840*2160 (Optional) | ||
| LCD panel brand | LG industrial grade | ||
| Brightness | 3500nits / 4500nits | ||
| Contrast Ratio | Original LG glass : 1200:1 | ||
| Smart Temp System | Yes | ||
| Material of Enclosure | Aluminum | ||
| IP Rating | IP65 | ||
| Thicknessof Tempered Glass |
6mm /8mm(Laminated Glass) IK10 | ||
| Operating Temp | -30 to 60 ℃ | ||
| Rated Voltage |
110V/220V (Optional) | ||
| Running Time | 7/24 | ||
| Certificates | CE FCC.RoHS | ||
