Outdoor COB LED Display High Temperature Reliability Solution

Stable Operation Verification Under Extreme Solar Radiation & High Temperature

Under 1100W/m² solar radiation and 55°C ambient temperature, the CNLC 75-inch Outdoor COB LED Display achieved maximum temperatures of 89.6°C in key heat source areas and 94.3°C at the power supply module during testing, with the entire unit operating continuously for 4 hours without any abnormality.

Outdoor digital display equipment is deployed long-term in open environments such as deserts, high-temperature cities, commercial plazas, highways, and smart cities, where it must continuously withstand challenges from intense solar radiation, accumulated heat, UV exposure, and complex climate variations. In high-temperature, high-sunlight regions including the Middle East, North Africa, Australia, Southeast Asia, and the Southwestern United States, outdoor display devices must not only meet high-brightness display requirements but also possess long-term stable operational capability.

Addressing potential display abnormalities, structural aging, and internal heat accumulation issues that outdoor display equipment may experience under high-temperature conditions, CNLC conducted extreme environment simulation reliability testing on the 75-inch Outdoor COB LED Display using a professional solar-high-temperature radiation environmental chamber. The test simulated 1100W/m² solar radiation intensity and 55°C ambient temperature with 4 hours of continuous solar radiation exposure, verifying the stability of the complete unit's structure, display performance, and internal electrical system under high-temperature, high-light conditions through actual environmental simulation, providing reliable data support for outdoor digital display projects in global high-temperature regions.

1. Three Core Challenges in High-Temperature, High-Light Outdoor Scenarios

•  High Temperature Affects Display Stability
  Continuous intense light-induced heat loads can trigger multiple display failures including screen flickering, degraded color uniformity, and screen interruption/failure, directly reducing the display value for commercial advertising and public information dissemination, while increasing project operation and maintenance costs.
• Long-Term Weathering Resistance Challenges for Outdoor Enclosures
  Outdoor equipment endures prolonged UV radiation, thermal cycling, rain, and dust erosion. Different structural materials may experience coating aging, corrosion risks, and increased maintenance costs under long-term outdoor exposure.
• Internal Heat Accumulation Damages Electronic Systems
  The combination of self-generated heat from the display and absorbed heat from external sunlight continuously accumulates within the sealed enclosure. Internal overtemperatures can shorten the lifespan of power supplies and driver components, causing frequent shutdown failures—making this a core assessment metric for overseas high-temperature projects.

2. Solar High-Temperature Radiation Environment Simulation Testing

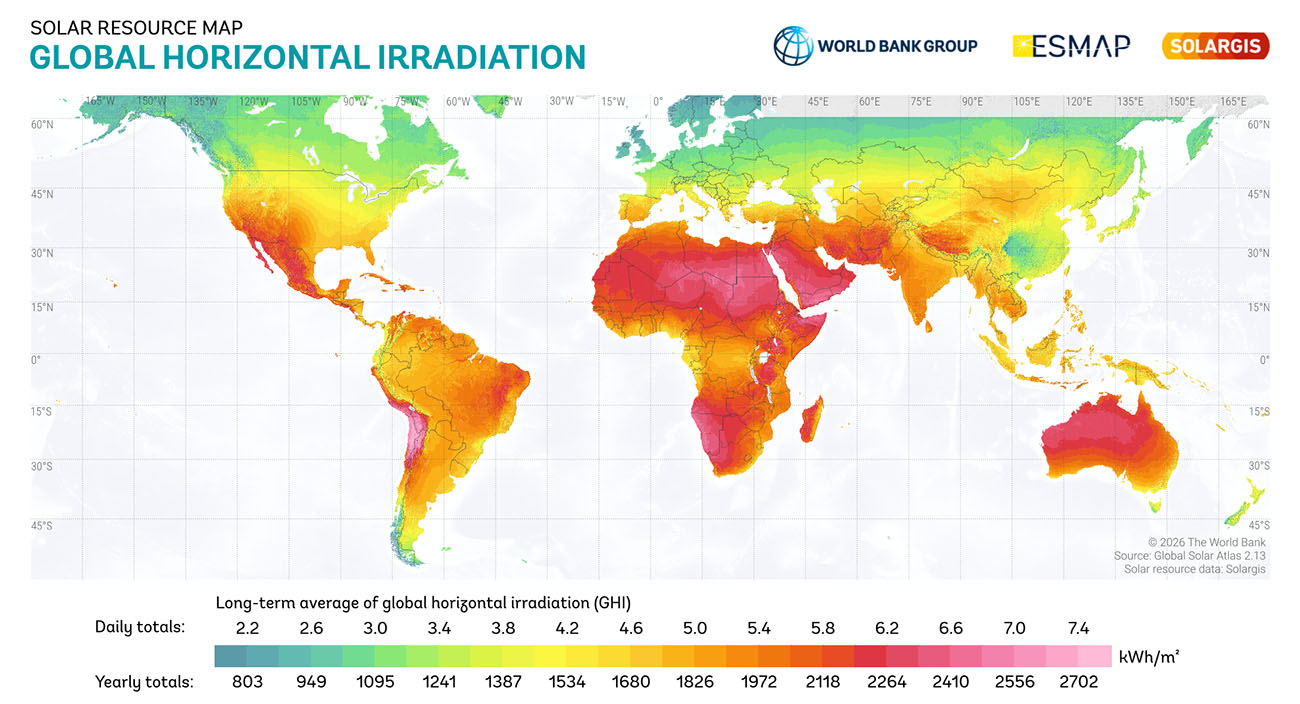

Dedicated replication of typical high-temperature, high-sunlight regional conditions worldwide: Middle Eastern deserts, North African dry-hot zones, Australian inland areas, Southeast Asian tropics, and Southwestern US high-light regions. Suitable for desert highway advertising displays, outdoor digital signage, commercial area advertising terminals, and smart city information terminals.

Test Condition Summary Table

3. Standardized High-Temperature Reliability Test Procedure

• Equipment Preheating and Calibration

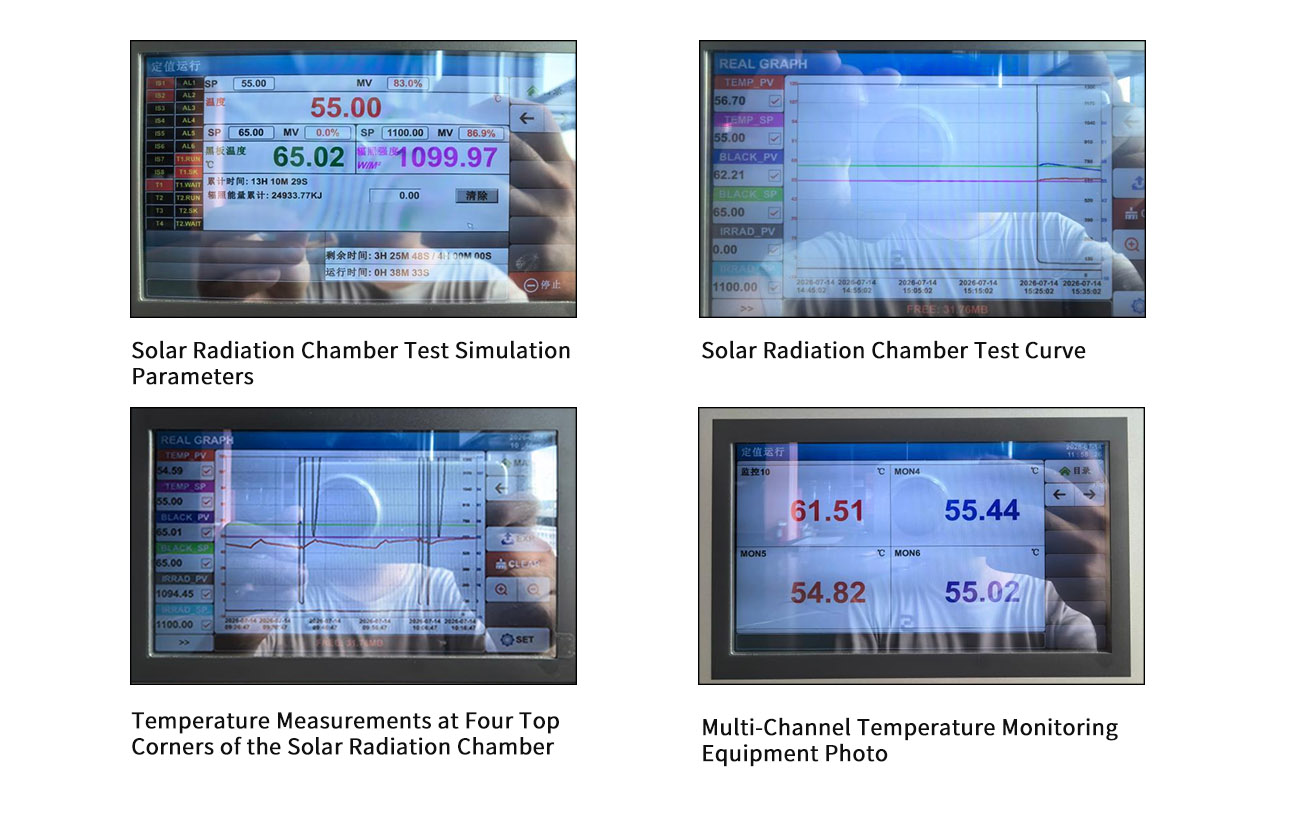

  The environmental chamber was operated empty for 30 minutes prior to testing to calibrate irradiance and temperature parameters, ensuring stable operating conditions throughout the test with deviations within national standard requirements.

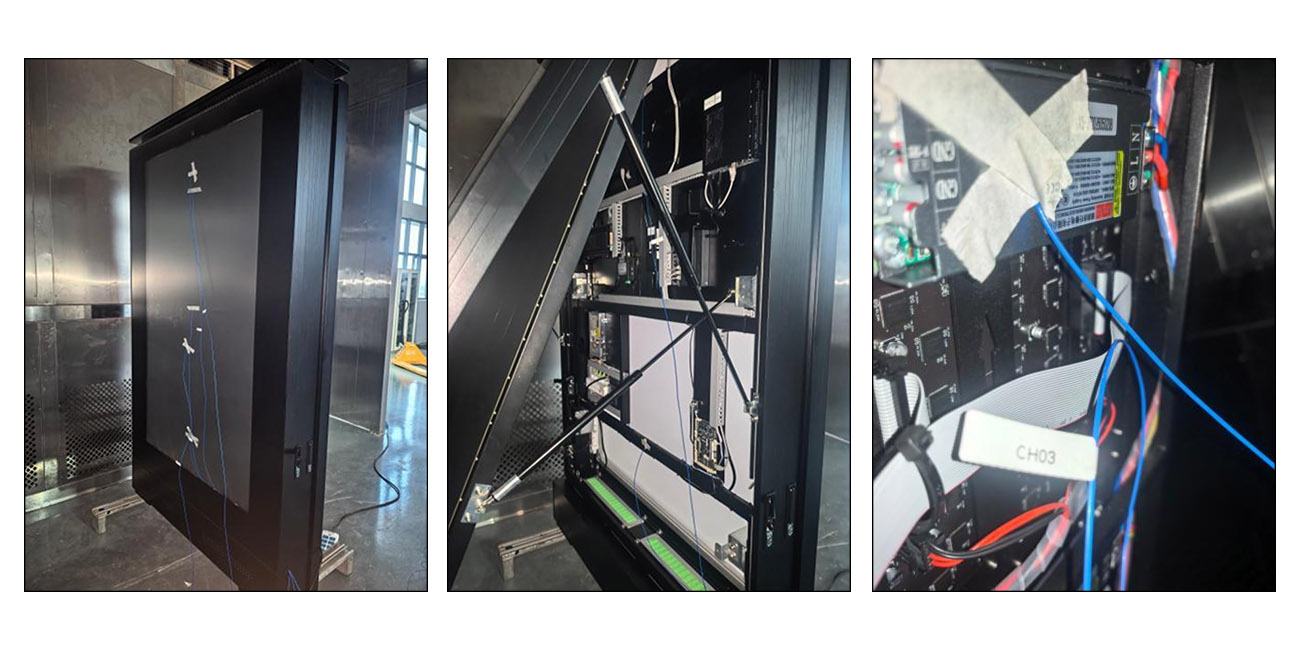

• Temperature Sensor Placement on Sample
  The complete, brand-new unit was centrally fixed within the test area of the chamber. Temperature sensors were attached to the enclosure surface, internal cavity, and core components including power supply and driver units, capturing temperature rise changes in real-time throughout the entire process.

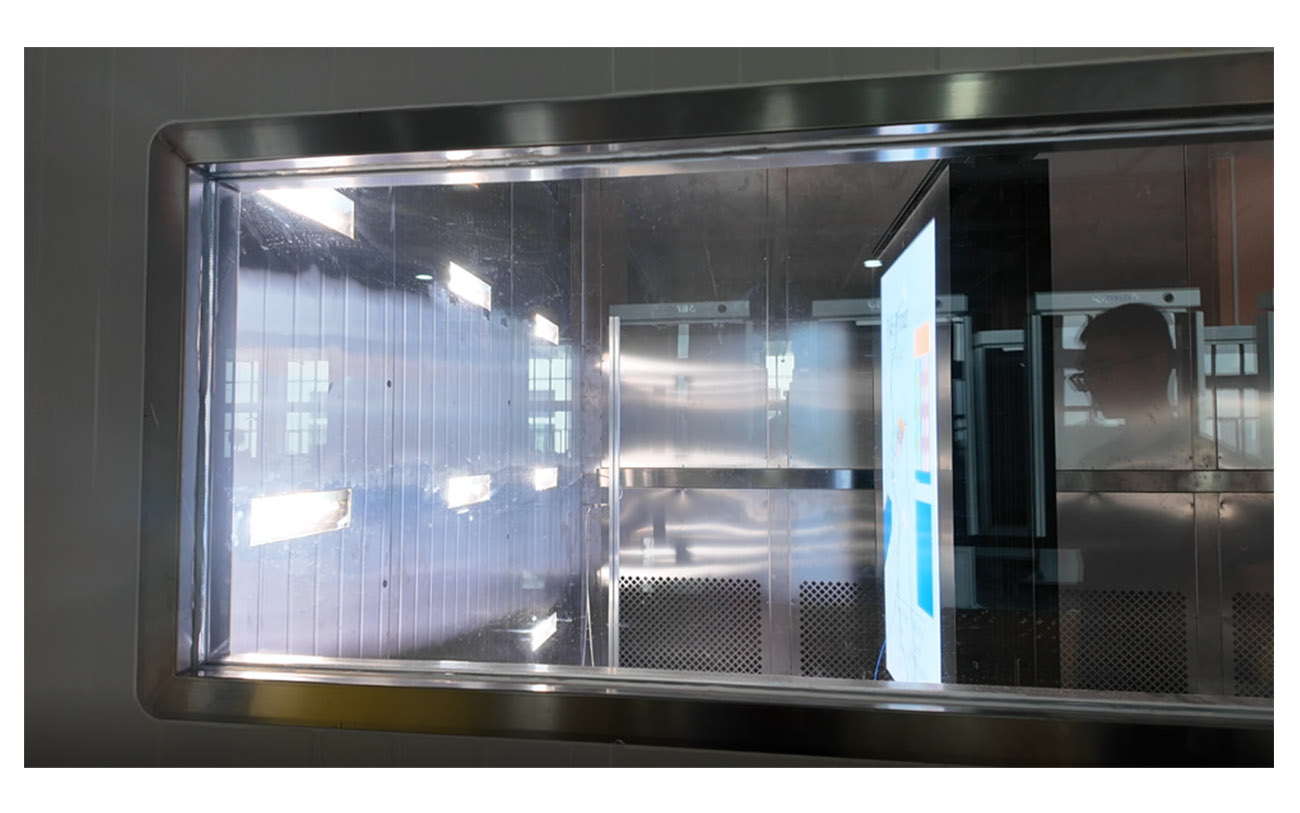

• 4-Hour Continuous Extreme Irradiation Exposure
  The irradiation system operated without interruption, with simultaneous recording of ambient temperature, irradiance values, enclosure temperature, internal temperature rise, and real-time screen display status.

• Comprehensive Inspection After Cooling
  After the test concluded, the light and heat sources were turned off, and the unit was allowed to cool naturally for 30 minutes. This was followed by sequential inspections of appearance and structure, display performance, and electrical system operating status, with all raw test data compiled.

4. Overall Test Results: Normal Operation Under Extreme High-Temperature Conditions

Upon completion of the full irradiation test, all sample metrics passed with no defects or failures:

5. Intelligent Thermal Management System: Ensuring Continuous Operation in Extreme High-Temperature Environments

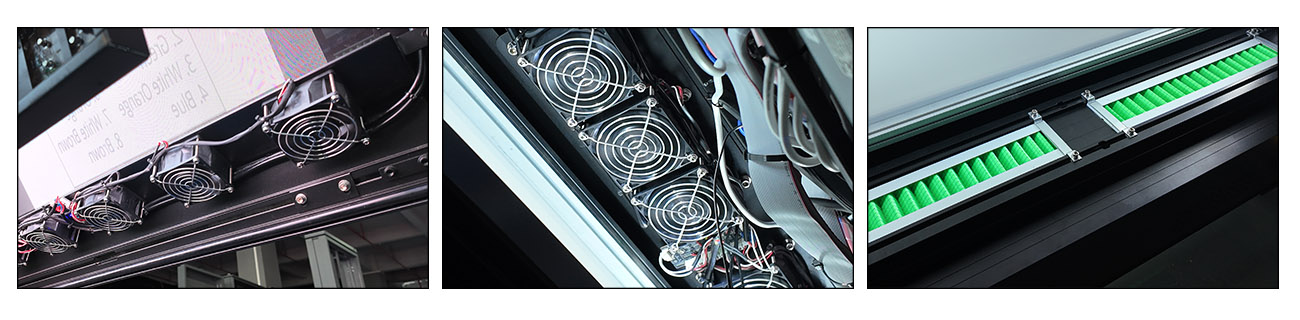

• Efficient Natural Airflow Channel Design for Optimized Heat Dissipation Paths
  Addressing heat accumulation challenges faced by outdoor display equipment in high-temperature, high-light environments, CNLC employs an optimized air circulation design that forms efficient natural airflow paths through front-side cooling channels, bottom air intakes, and top exhaust structures. Cool air enters from the bottom, exchanges heat internally, and is rapidly exhausted through the top, achieving continuous heat dissipation circulation that effectively reduces internal heat accumulation and improves operational stability in high-temperature outdoor environments.
• Intelligent Temperature Control System for Dynamic Thermal Management
  Incorporating an intelligent temperature control system, the equipment automatically optimizes heat dissipation strategies based on internal operating temperatures, ambient temperature changes, and cooling demand status. It dynamically adjusts cooling operation states, optimizing energy efficiency while maintaining effective heat dissipation.
• Dust-Proof Filtration Design for Long-Term Outdoor Operation
  Beyond high temperatures, outdoor environments also present sand, dust, and airborne pollutants. CNLC incorporates internal dust-proof filtration design that maintains airflow while reducing dust ingress into internal components, effectively protecting the power supply module, control system, LED modules, and driver components, thereby reducing maintenance requirements during long-term outdoor operation.

• Optical Glass Panel: Heat Insulation and UV Protection, Reducing Heat Load at the Source
  The front face of the CNLC Outdoor COB LED Display utilizes high-performance optical functional glass that actively blocks infrared and ultraviolet bands from solar radiation while maintaining high light transmission for display quality:

This glass solution works in conjunction with the internal airflow heat dissipation and intelligent temperature control systems—external blocking combined with internal dissipation—creating a dual-path thermal management approach that further reduces overall unit heat load.

• Thermal Management Design Integrated with High-Temperature Test Verification
  Through optimized airflow channel design, intelligent temperature control system, dust-proof filtration structure, optical insulating glass, and high-temperature reliability testing, a complete outdoor thermal management solution is formed. Under 55°C ambient temperature, 1100W/m² solar irradiance, and 4-hour test conditions, the equipment maintained stable operation with no black screen, no flickering, normal internal electronic system function, and no structural abnormalities—validating the effectiveness of the thermal management design in extreme outdoor environments.

6. Three Core Reliability Validations

• 6063-T5 Aluminum Alloy Enclosure for Enhanced Outdoor Weathering Resistance
  Compared to some commonly used outdoor structural materials, 6063-T5 aluminum alloy offers superior corrosion resistance and long-term structural stability, with the complete unit coated with a 106μm thickened weathering-resistant powder coating.

Test Conditions: Maximum temperature of 89.6°C in key structural areas, 4 hours of intense high-temperature, high-light irradiation
Test Performance:
✅ No frame bending or splicing loosening
✅ No coating yellowing, blistering, cracking, or peeling
✅ No corrosion or surface aging signs
Long-term outdoor use effectively reduces maintenance frequency and lowers annual operation and maintenance costs for overseas clients.

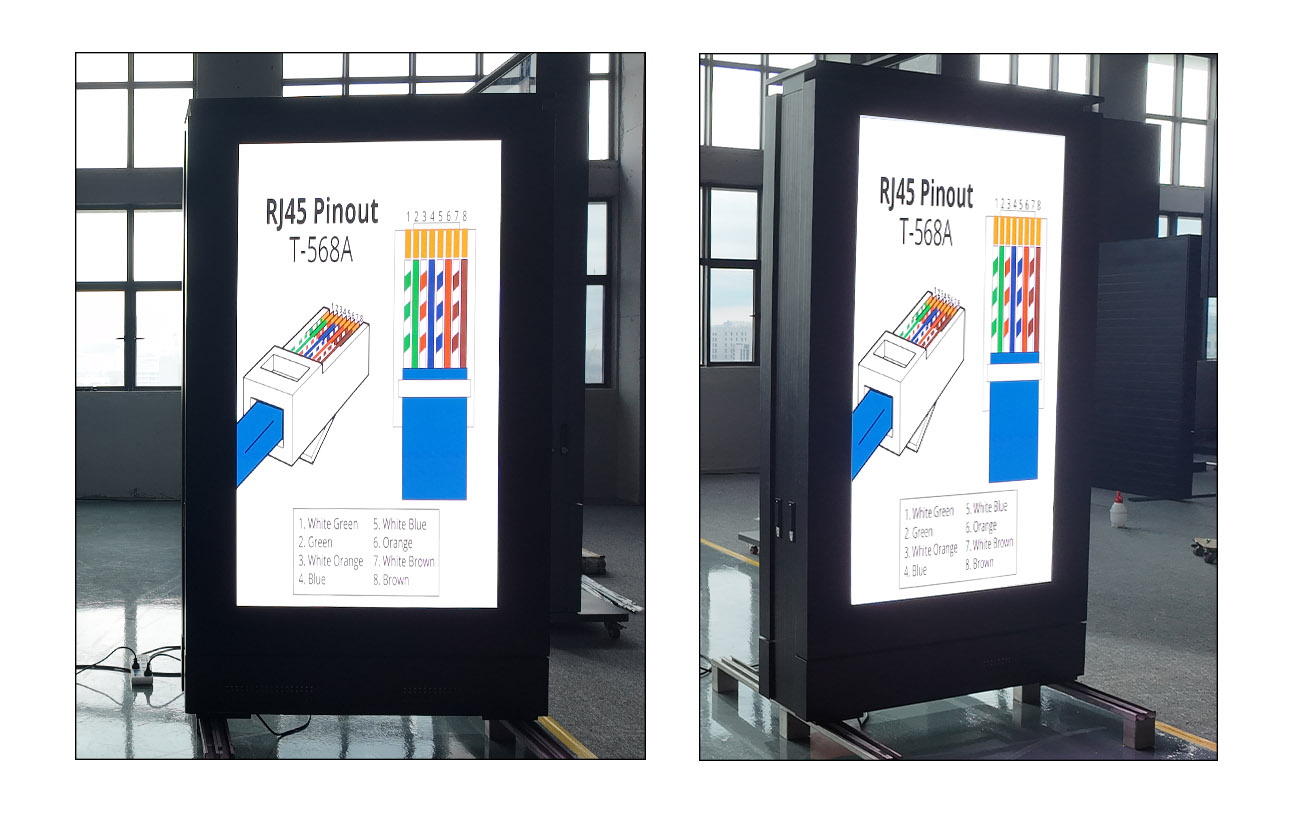

• COB Display Technology Ensuring Stable Screen Performance in High Temperatures
  The display screen remained continuously lit throughout the test, with stable display performance under extreme heat accumulation conditions:
  ✅ No flickering, no color shift or distortion
  ✅ No black screen, no image interruption
  The COB package structure reduces the impact of external environmental factors on LED units compared to traditional SMD configurations, improving display module reliability in high-temperature, dusty, and complex outdoor environments.
• Internal Electrical System Continuous Operation at High Temperatures
  The maximum temperature measured at the power supply module inside the unit cavity reached 94.3°C as a transient peak value, well below the overtemperature protection threshold of components. The average internal temperature of the complete unit was maintained within 65°C. Test results showed that after reaching peak temperatures, internal temperatures stabilized without showing a continuous upward trend. All electronic components including power supply, driver boards, and wiring harnesses operated without abnormality throughout:
  ✅ No sudden power loss or system crash
  ✅ No component overheating burnout or circuit failures
  Leveraging the dedicated thermal management design and high-temperature-resistant component selection, the solution effectively reduces the risk of equipment operation anomalies caused by high temperatures in tropical and desert regions.

7. Core Advantages of the CNLC Outdoor COB High-Temperature Solution

• Laboratory Test Report—A Value-Added Asset for Overseas Project Bidding and Acceptance
  Unlike products relying solely on theoretical marketing, CNLC possesses complete full-process simulation test raw data and can provide comprehensive solar high-temperature radiation test PDF reports, on-site photos, temperature curve data, and operating condition records. These materials can be directly used for overseas project technical reviews, tender documentation, and third-party reliability acceptance.
• Systematic Thermal Management Capability
  From airflow channel heat dissipation design, intelligent temperature control systems, and dust-proof filtration structures to optical insulating glass, combined with high-temperature reliability test validation, a complete thermal management system is established, effectively improving long-term operational stability of outdoor equipment.
• High-Weatherability 6063-T5 Aluminum Alloy Structural Design
  The 6063-T5 aluminum alloy structure offers strong corrosion resistance, UV resistance, and deformation resistance, providing stronger long-term outdoor stability for the complete unit while reducing long-term maintenance requirements. Perfectly suited for desert, coastal high-salt-spray, tropical high-heat-humidity, and high-sunlight open-air projects.

8. Global Application Scenarios

Dedicated Technical Support for Global Projects

1. Customized Complete Unit Solutions
Support for non-standard customization across multiple sizes, with enclosure and heat dissipation structure optimization based on project regional climate conditions (desert/tropical/coastal).

2. Complete Technical Documentation Delivery

Under the rigorous conditions of 1100W/m² intense light, 55°C high temperature, and 4 hours of continuous exposure, key heat source areas reached 89.6°C, and the power supply module reached 94.3°C, with the complete unit operating continuously without abnormality—no structural aging, no display failures, and no electrical system crashes.

Leveraging five core advantages—high-weatherability 6063-T5 aluminum alloy enclosure, integrated intelligent thermal management system (including optical insulating glass), highly stable COB display, high-temperature-resistant electrical system, and authoritative laboratory test data—this solution is the preferred product solution for long-term outdoor digital display projects in global high-temperature, high-sunlight, and arid regions.

Designed for Extreme Outdoor Reliability
High temperature itself is not the problem—
Long-term stable operation under high-temperature environments is the true challenge for outdoor display equipment.

To obtain the complete test report or consult on high-temperature project solutions → Contact the CNLC Technical Support Team
