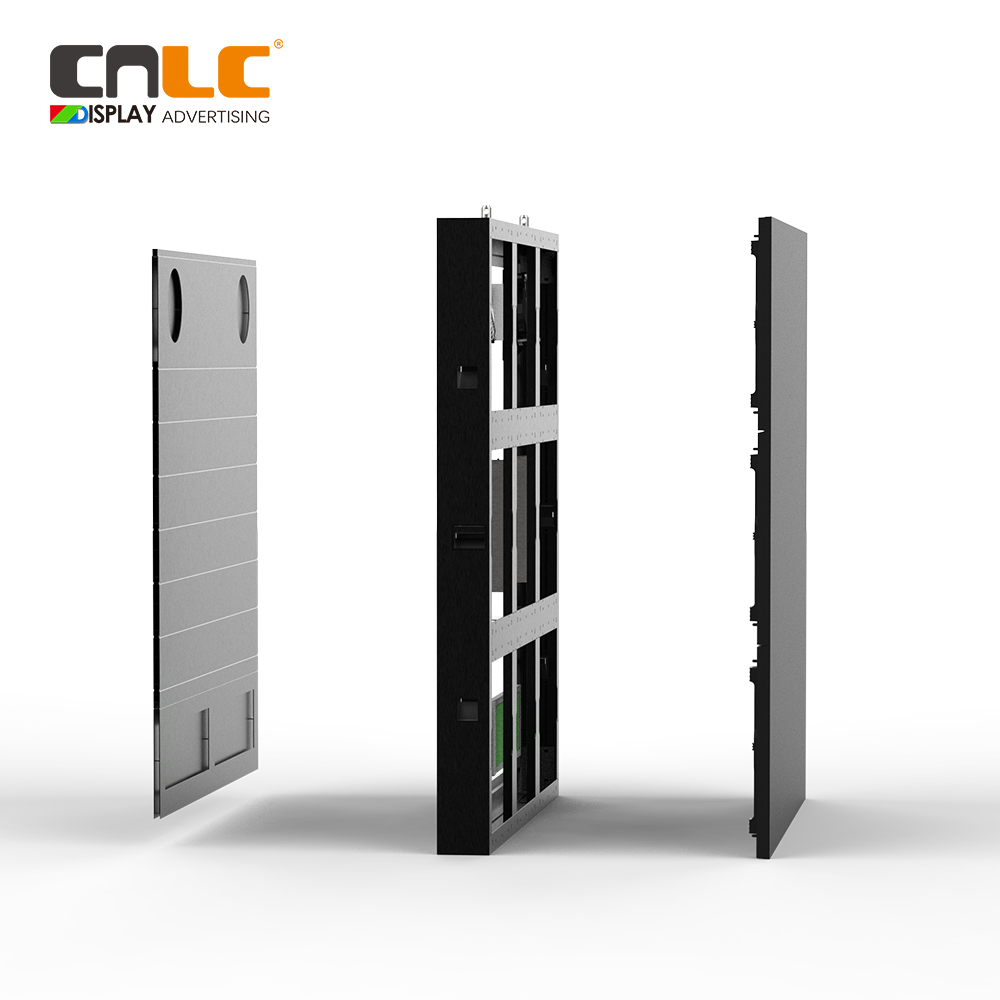

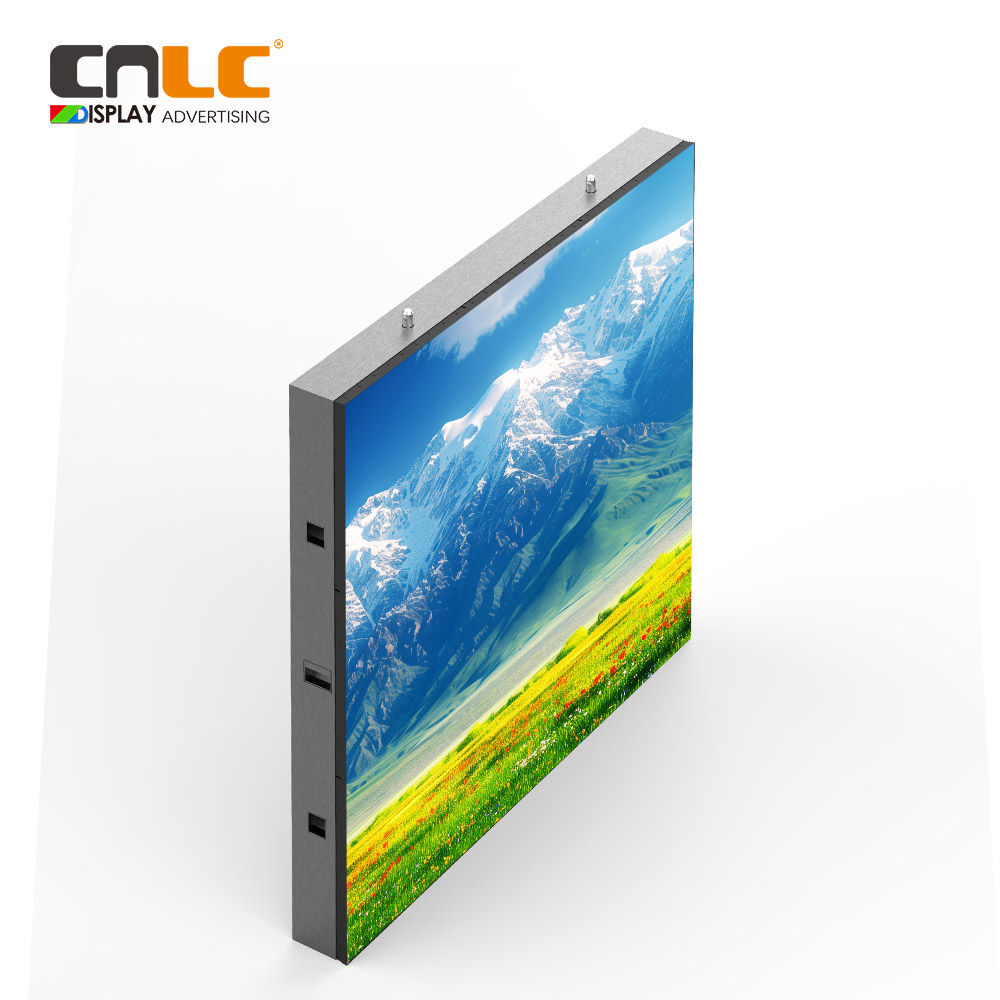

Designed for outdoor LED display projects, this aluminum fixed cabinet features a lightweight structure, IP56 waterproof rating, and front maintenance access. Ideal for wall-mounted video walls and large LED billboards, it offers efficient heat dissipation, dust protection, and easy installation.
رقم الصنف :
CNLC-AU-100Aحجم :
Customizeوضح :
4500 cd/m²نسبة الدقة :
SMDمادي :
Aluminum Structureلون :
Black / Silver / Grey / Customizeدرجة للماء :

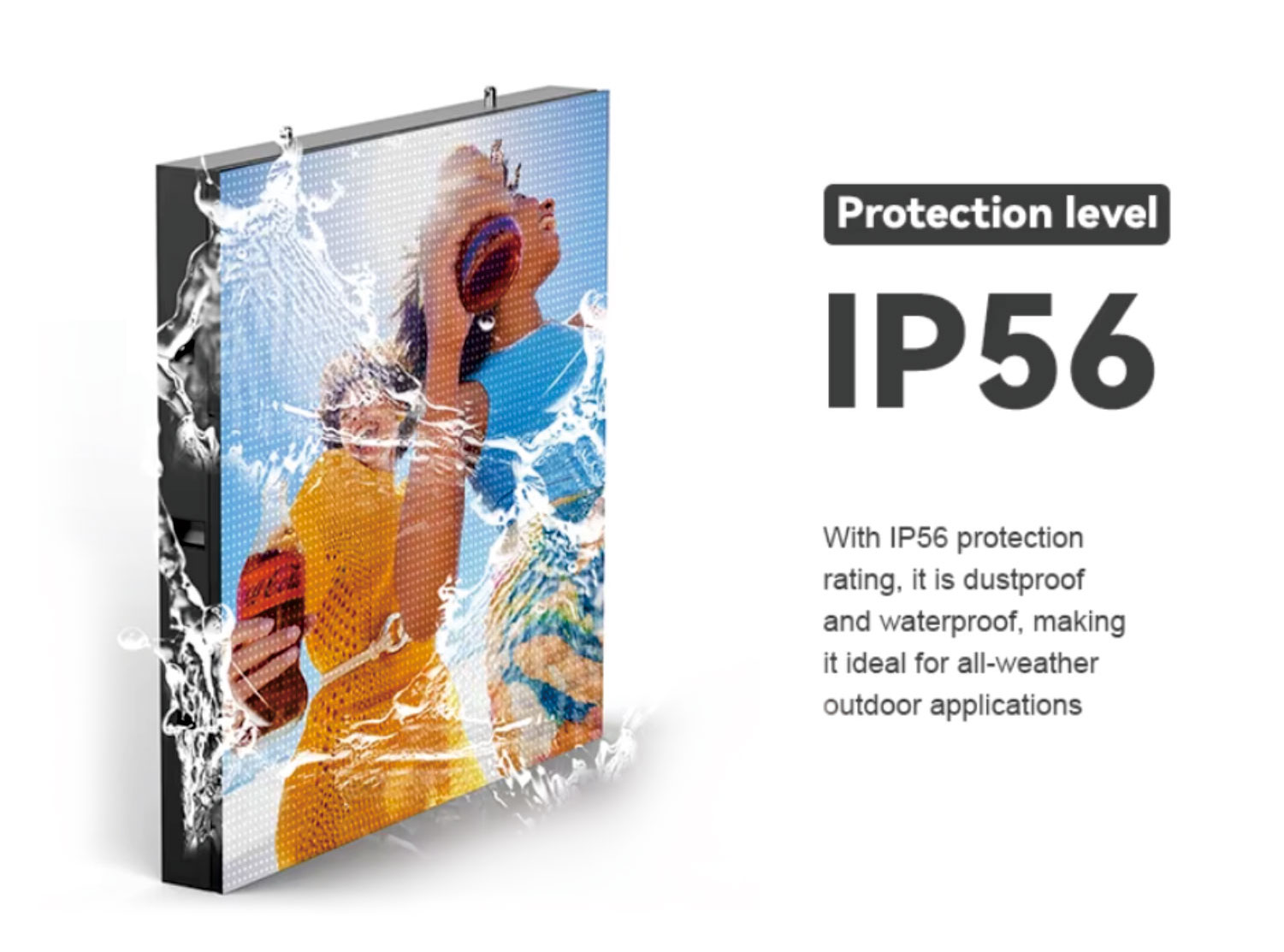

IP56Weatherproof Aluminum LED Cabinet – IP56 Rated
◆ Built for outdoor environments, this aluminum LED cabinet features a weather-resistant structure with IP56 waterproof rating, offering strong protection against dust, rain, and harsh weather conditions. The sealed design ensures long-term performance and reliability in both high-humidity and dusty environments, making it ideal for outdoor advertising applications.

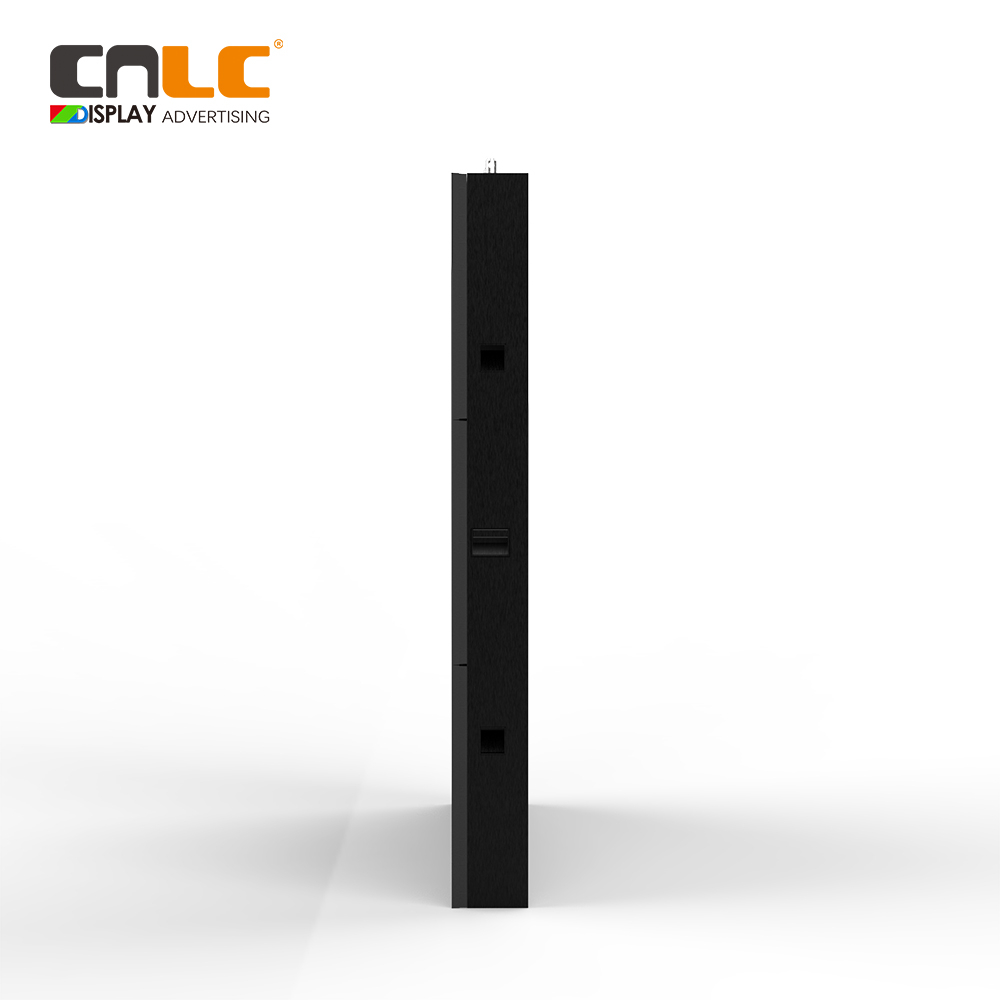

Lightweight Aluminum Cabinet – Only 22kgm²
◆ Our LED fixed cabinet features a precision aluminum structure with a lightweight design of just 22kg per square meter, making installation easier and reducing structural load.

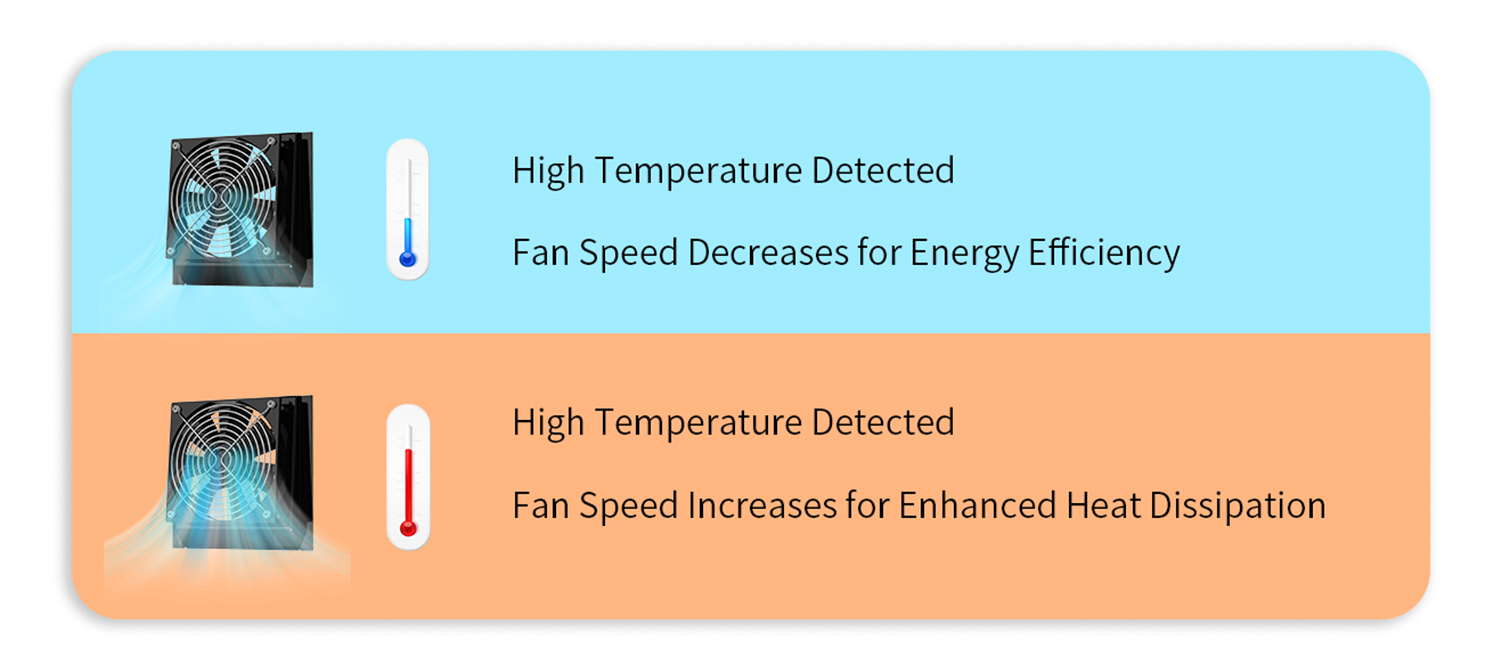

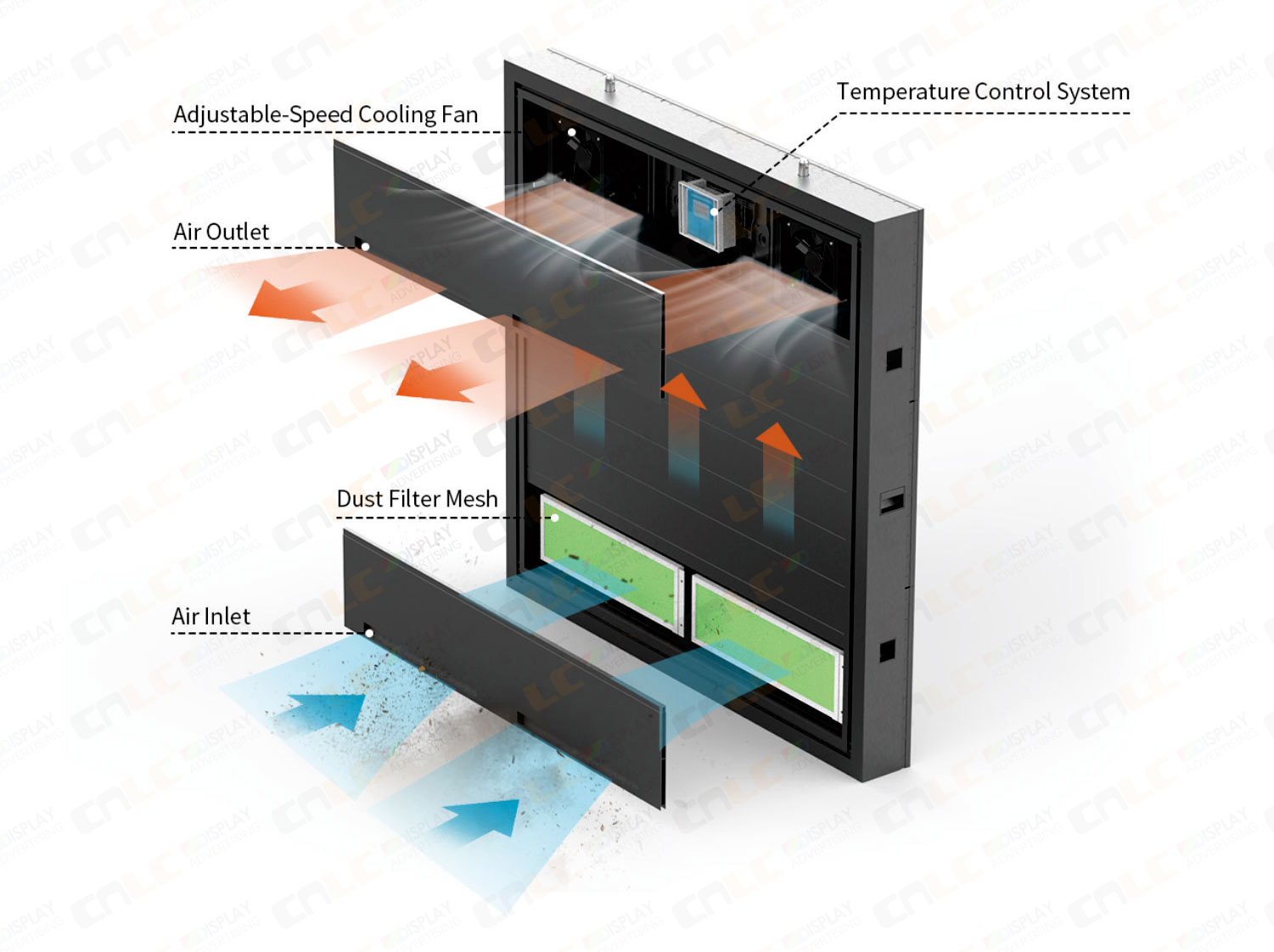

Smart Cooling System for Outdoor Aluminum LED Cabinets
◆ To ensure stable performance in demanding environments, our aluminum LED cabinet features a bottom air intake with a dust filter mesh and a top-mounted exhaust fan for effective heat dissipation. An integrated smart thermal management system automatically adjusts the fan speed based on internal temperatures, improving cooling efficiency while minimizing energy use. This intelligent airflow design reduces temperature fluctuations inside the outdoor LED display, protecting sensitive components and extending product lifespan.

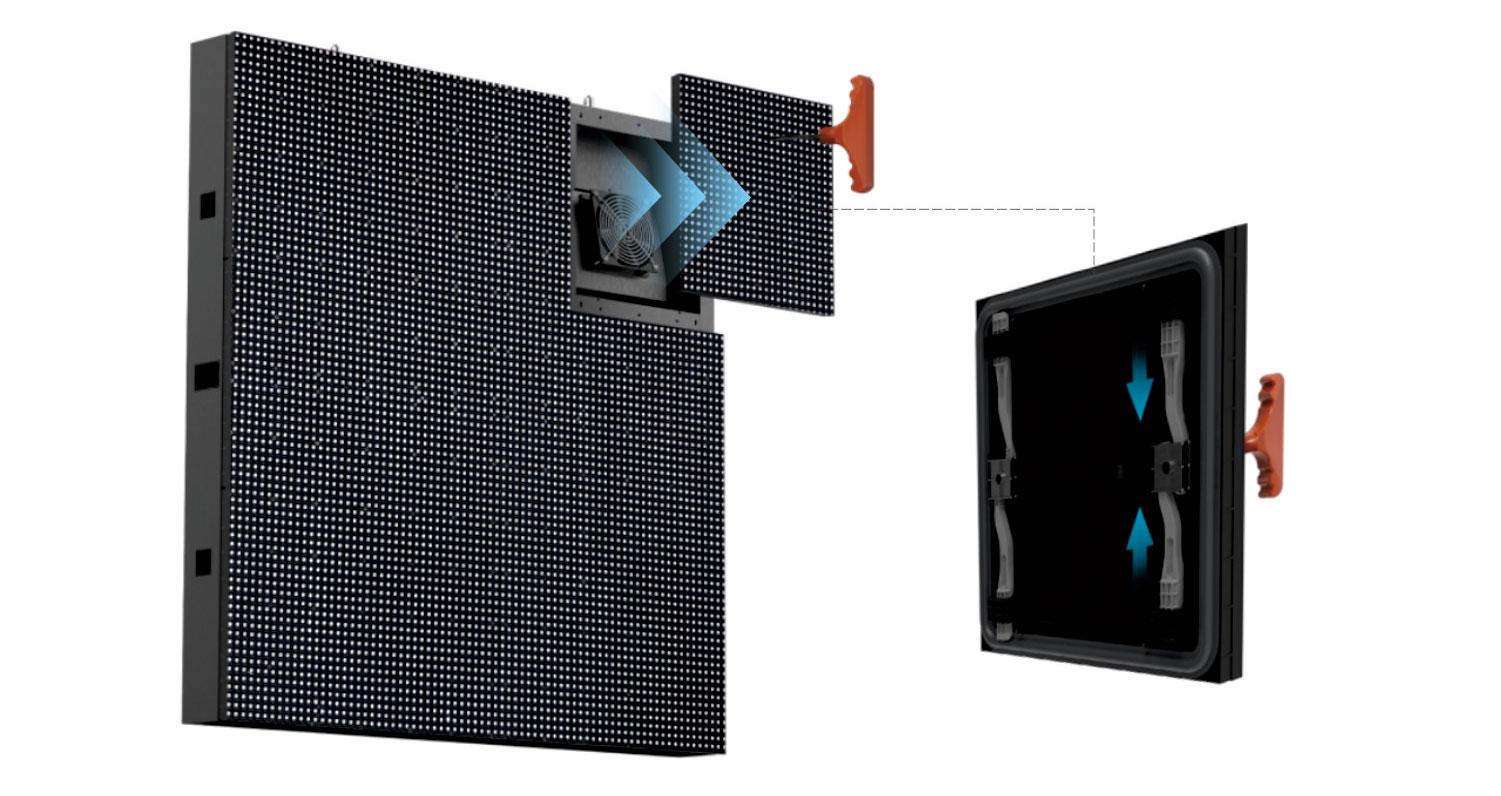

Front Maintenance Aluminum LED Display Cabinet with Dual Module Sizes
◆ This aluminum fixed LED cabinet supports front maintenance, enabling quick and easy access to internal components without requiring rear clearance—ideal for wall-mounted or space-constrained installations. It is compatible with two LED module sizes, offering flexibility for different pixel pitches and display configurations. The lightweight aluminum structure ensures durability, better heat dissipation, and simplified installation for both indoor and outdoor LED display projects.

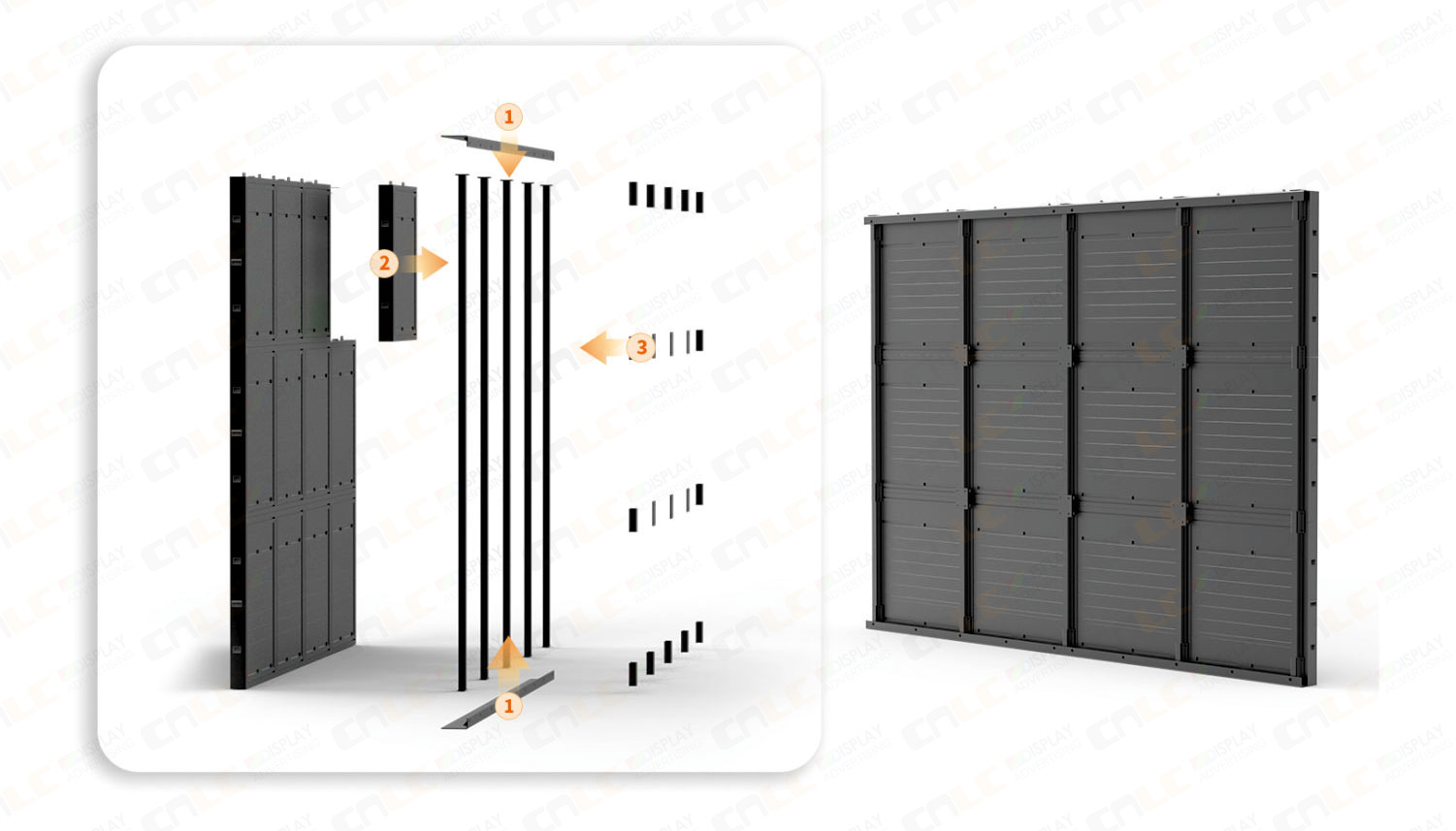

Modular Assembly for Aluminum Fixed LED Display Cabinet
◆ This aluminum LED fixed cabinet supports modular installation, allowing fast, tool-assisted setup on-site. The frame is pre-designed for seamless cabinet alignment and stable mounting, ensuring a precise and efficient installation process. Ideal for large-format outdoor LED displays, this structure offers excellent durability, reduced labor time, and high adaptability for various screen configurations.

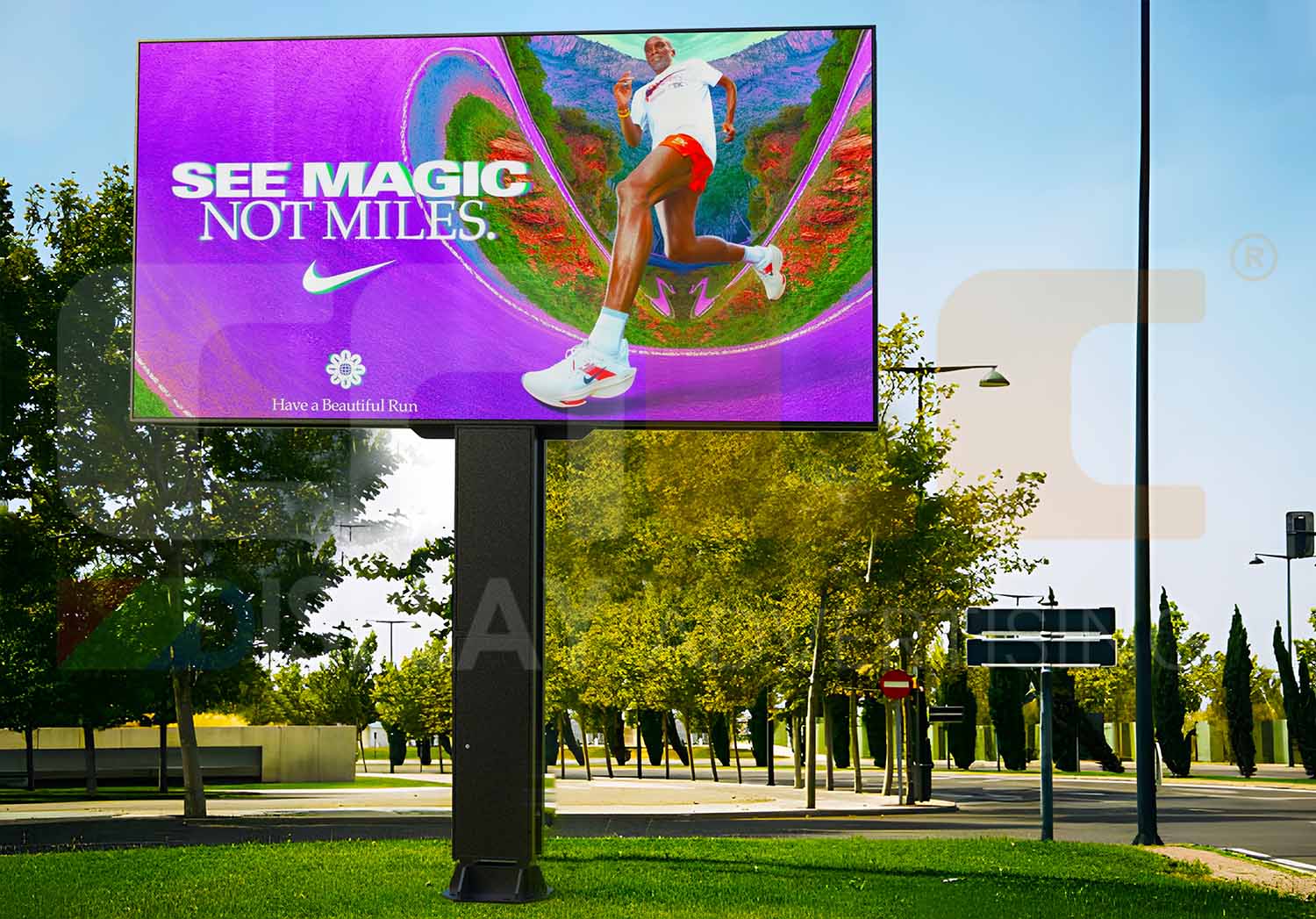

Outdoor-Ready Aluminum Fixed LED Cabinet

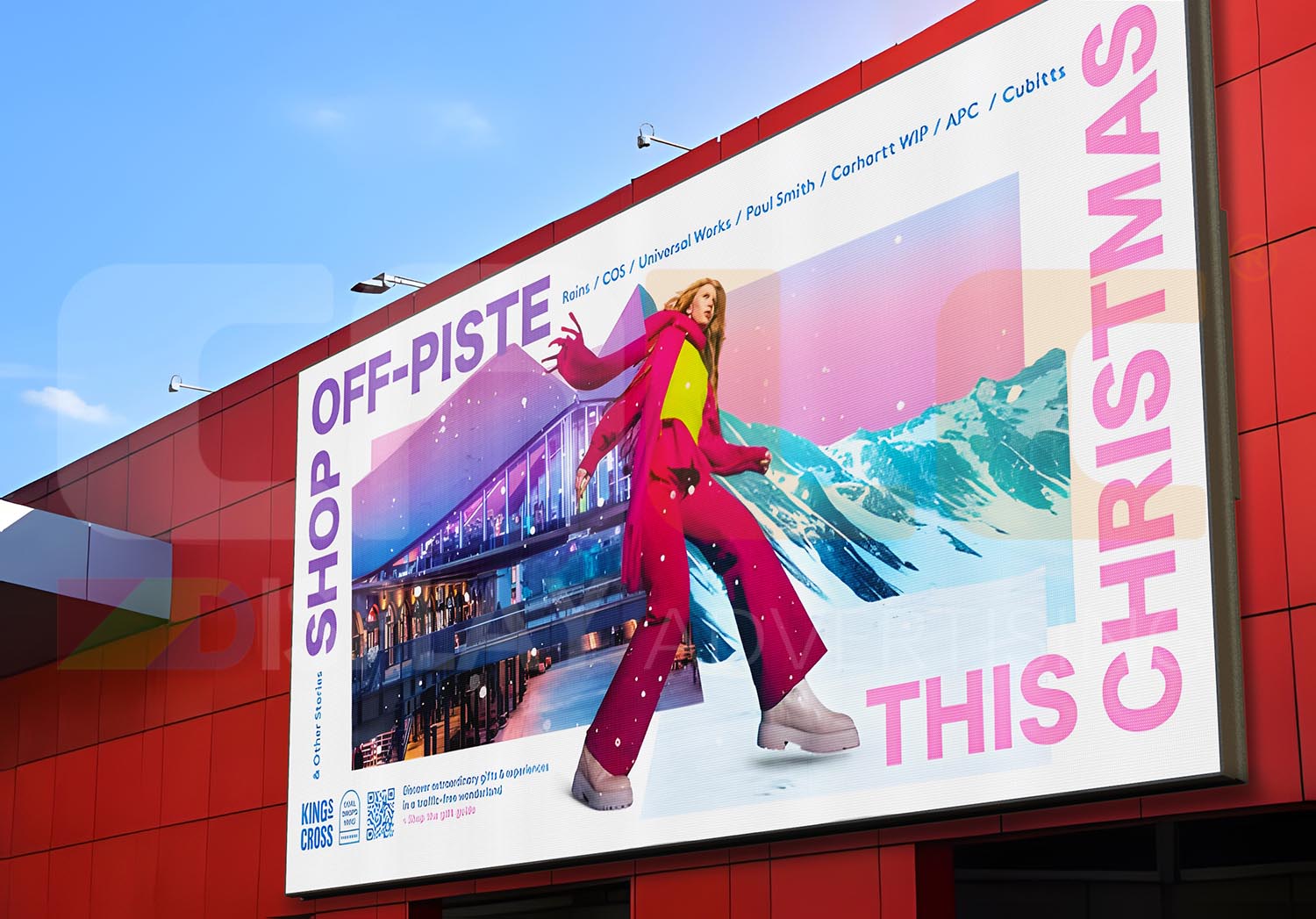

◆ Engineered for demanding outdoor environments, the aluminum fixed LED cabinet is ideal for both wall-mounted LED displays and large-format LED billboards. Its IP56-rated waterproof structure, lightweight aluminum frame, and front maintenance design ensure reliable performance, easy installation, and long-term durability in all weather conditions.
TECHNICAL SPECIFICATIONS
| Aluminum Fixed LED Cabinet size(mm) |
960*960
|
1000*1000
|
|
Power Consumption(w/m²)
|
342W/448W/323W/400W/332W/332W/483W | 800W/800W/800W/550W/500W/500W |
| Pixel Pitch(mm) | 2.5mm/3mm/4mm/5mm/6.67mm/8mm/10mm | 2.976mm/3.91mm/4.81mm/5.95mm/6.25mm/7.8mm |
| LED Encapsulation | SMD1415/SMD1921/SMD2727 | SMD1415/SMD1921/SMD2727 |
| Density (points/m²) | 160,000/105,625/40,000/22,500/15,625/10,000 | 112,896/65,410/43,222/28,224/25,600/16,352 |
| Scan method | 16s/13s/10s/8s/6s/5s/2s | 21s/8s/7s/6s/5s/4s |
| LED module size(mm) |
320*320 | 250*250 |
| Overall Size(mm) |
960*960*100 | 1000*1000*100 |
| Aluminum frame | ||
| Cooling system | Cold air circulation cooling | |
| Brightness(cd/m²) | 4500cd/m² | |
| Refresh Rate(Hz) | Cold air circulation cooling | |
| Operating Ambient Temperature | -30℃ +50℃ | |
| Waterproof level | IP56 (Dust resistance level 5 and water resistance level 6) | |
| Refresh frequency (Hz) | 3840Hz / 7680Hz (Optional) | |
| Lifespan | ≥ 100,000 hours | |
| Stability | Support 7*24H continuous operation | |
