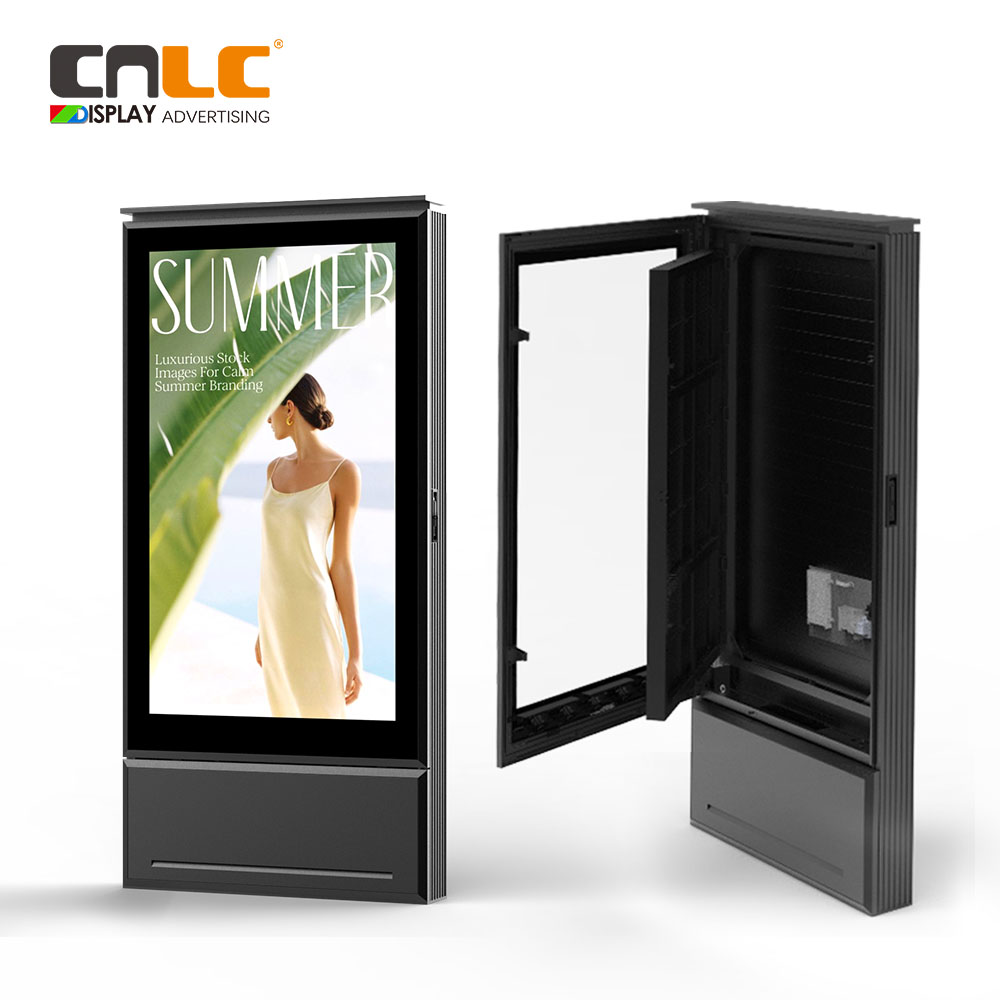

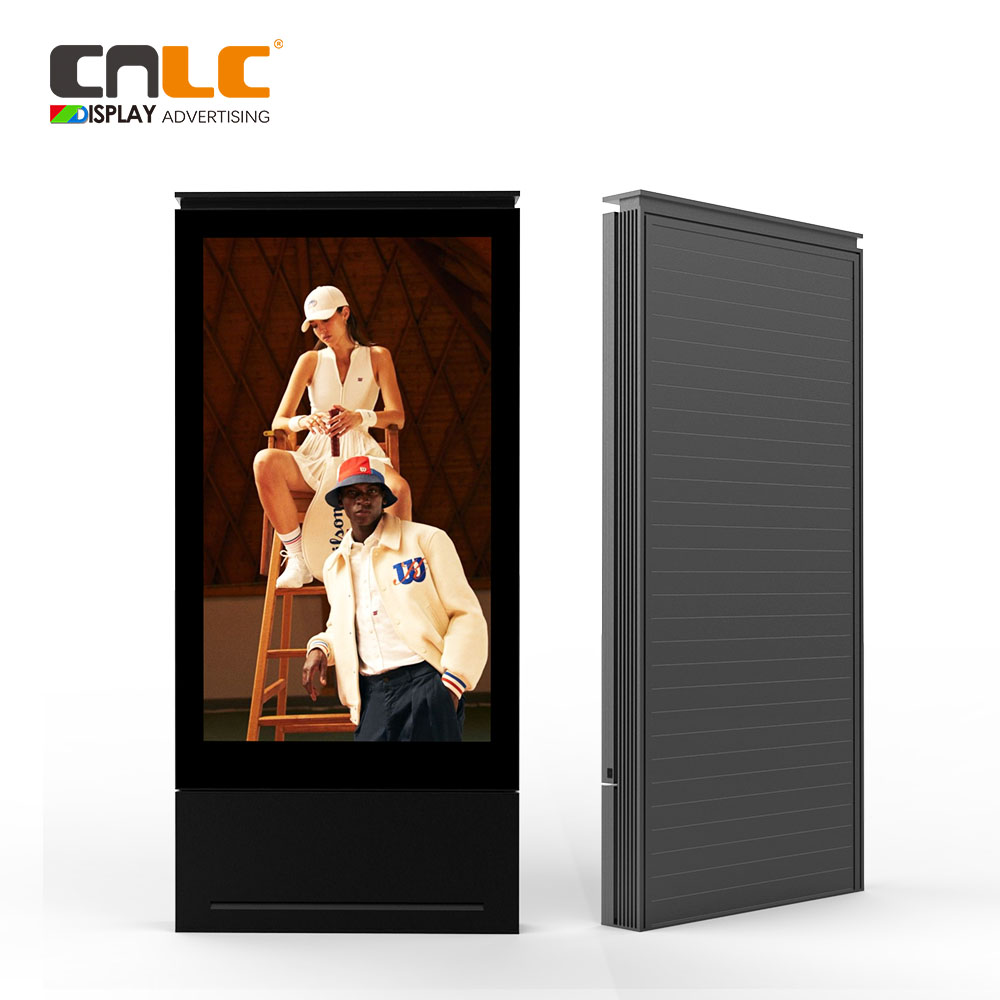

This Outdoor Aluminum LED Totem features flexible mobility with lockable wheels for easy relocation. Built with a durable aluminum frame and IP56 rating, it’s perfect for outdoor digital advertising in all weather conditions.
رقم الصنف :
CNLC-ED-SM0310حجم :
Customizeوضح :
4500 cd/m²نسبة الدقة :
SMDمادي :
Aluminum Structureلون :
Black / Silver / Grey / Customizeدرجة للماء :
IP56
320x160mm LED Module
◆ High-efficiency LED module with a 320x160mm size, offering superior brightness, energy savings, and excellent durability. Ideal for creating seamless, high-resolution LED displays for indoor and outdoor applications.
Glassless Cover Design
◆ This LED digital display employs a glass-free design, fundamentally eliminating screen glare issues to ensure a clearer viewing experience. Furthermore, the absence of a glass cover enables faster heat dissipation, maintaining the device at stable operating temperatures and extending its lifespan. As a result, users benefit from a more reliable and enduring advertising display solution.
Aluminum Structure
◆ The LED Totem features a robust aluminum alloy casing, which is lightweight yet highly durable and resistant to corrosion, making it ideal for various harsh outdoor environments. This premium aluminum casing also offers excellent heat dissipation and structural stability, ensuring long-term operation in high temperatures or humid conditions while maintaining an elegant and intact appearance.
IP56 LED Totem
◆ The IP56 rating ensures that our exterior LED totem is ideal for various outdoor applications. Its robust waterproof design offers reliable protection against water, dust, rain, moisture, and sand, ensuring exceptional durability and performance in harsh outdoor environments.
Flexible Mobility
◆ The Outdoor LED totem is equipped with swivel caster wheels at the bottom, allowing for easy mobility and flexible positioning for outdoor advertising displays.
PROJECT CASE TECHNICAL SPECIFICATIONS
| Pixel Pitch(mm) | 2.5mm | 3.076mm |
4mm |
| Module resolution | 128*64 | 104*52 | 80*40 |
| Module size (mm) | 320*160 | ||
| Density (points/m²) | 160000 | 105625 | 62500 |
| Scan method | 1/16scan | 1/13scan | 1/10scan |
| Module weight |
455+5g | 450+5g | 437+5g |
| Material of Frame and Support Structural | Aluminum profile and steel frame | ||
| Cooling system | Build in cooling fans | ||
| Embedded heater | Optional | ||
| Media update | Remote control (LAN and WIFl) | ||
| Operating Ambient Temperature | -20℃~+60℃ | ||
| Waterproof level | IP56 | ||
| Maintenance method | Back | ||
| Refresh frequency (Hz) | 3840 | ||
| Brightness(nits) | ≥4500 | ||
| Power Supply | AC200-240V,50/60HZ | ||
| Pixel configuration |
1R1G1B | ||
| Energy Saving design |
4.2-5V voltage design | ||
| Contrast Ratio | 4000:1 | ||
| Power consumption(w/m²) | 684 | 895 | 645 |
