86-inch Outdoor Aluminum Structure LCD Module Solution

Solution Overview

This 86-inch outdoor aluminum structure LCD module solution is designed as a high-brightness display core for outdoor digital signage and engineering integration projects.

Featuring dual-mode brightness control, including automatic light sensing and manual fine-tuning, the module intelligently adjusts brightness according to ambient light conditions to ensure clear visibility throughout the day.

Customers can directly integrate the module into their own enclosures or systems, eliminating the need to redevelop display systems while ensuring performance, reliability, and faster project delivery.

Core Display Capabilities

High-Brightness LCD for Challenging Outdoor Lighting

• Maximum brightness up to 3500 nits

• Clear visibility even under direct sunlight or strong daylight

• Suitable for continuous long-hour outdoor operation

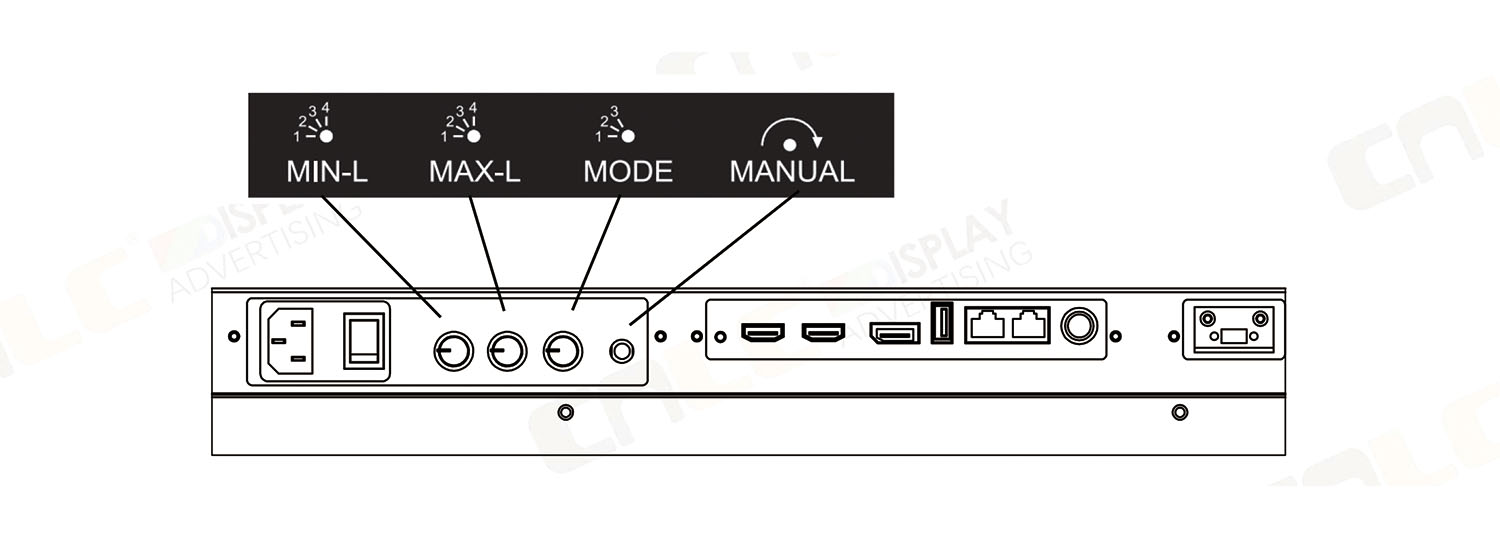

Intelligent Dual-Mode Brightness Control

Automatic Brightness Mode

Equipped with a built-in light sensor, the module automatically adjusts brightness within the configured range based on ambient lighting, balancing display clarity and energy efficiency.

Manual Brightness Adjustment

A physical brightness knob allows precise manual control, enabling users to set upper and lower limits to meet specific project requirements or fixed installation environments.

Four-Level Brightness Control

Flexible brightness configuration adapts to semi-outdoor and full-outdoor environments, optimizing visibility under various light conditions.

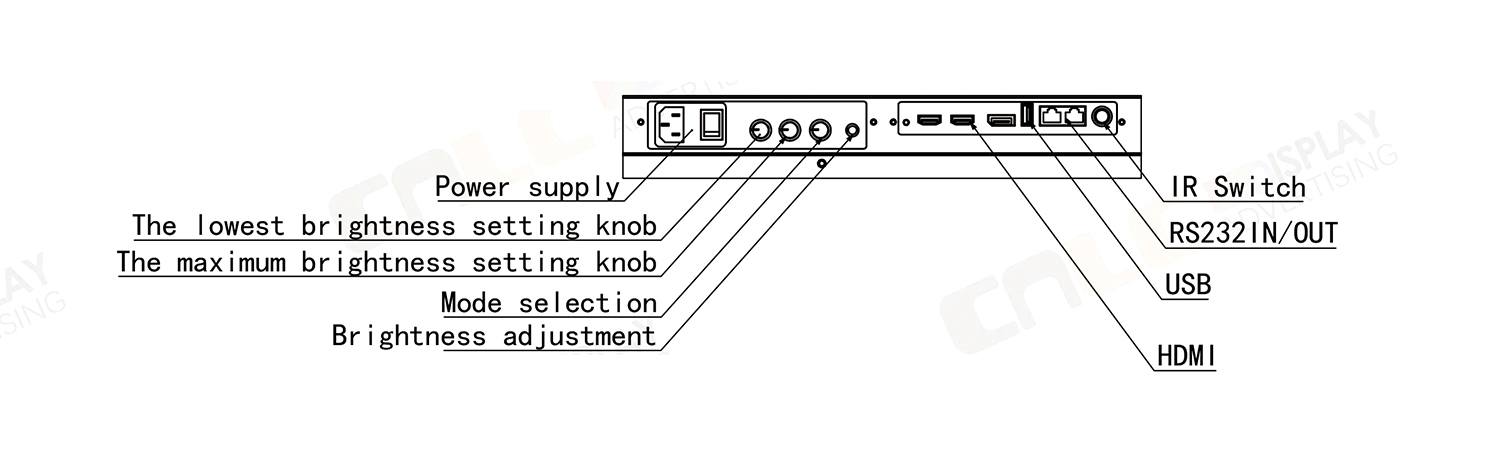

Intelligent Control & Interface Compatibility

Designed for engineering integration and system compatibility, this LCD module offers practical and mature control options while maintaining a streamlined structure:

• HDMI input for direct connection to external media players or control hosts

• USB interface for content updates, system configuration, and maintenance

• RS232 communication for integration with centralized control systems or third-party platforms

• IR remote control for basic operations and settings

• Physical brightness knob for fine adjustment and upper/lower limit control

• Light sensor for automatic ambient brightness management

This design ensures not only high-brightness outdoor display, but also excellent system adaptability, easy commissioning, and engineering reliability.

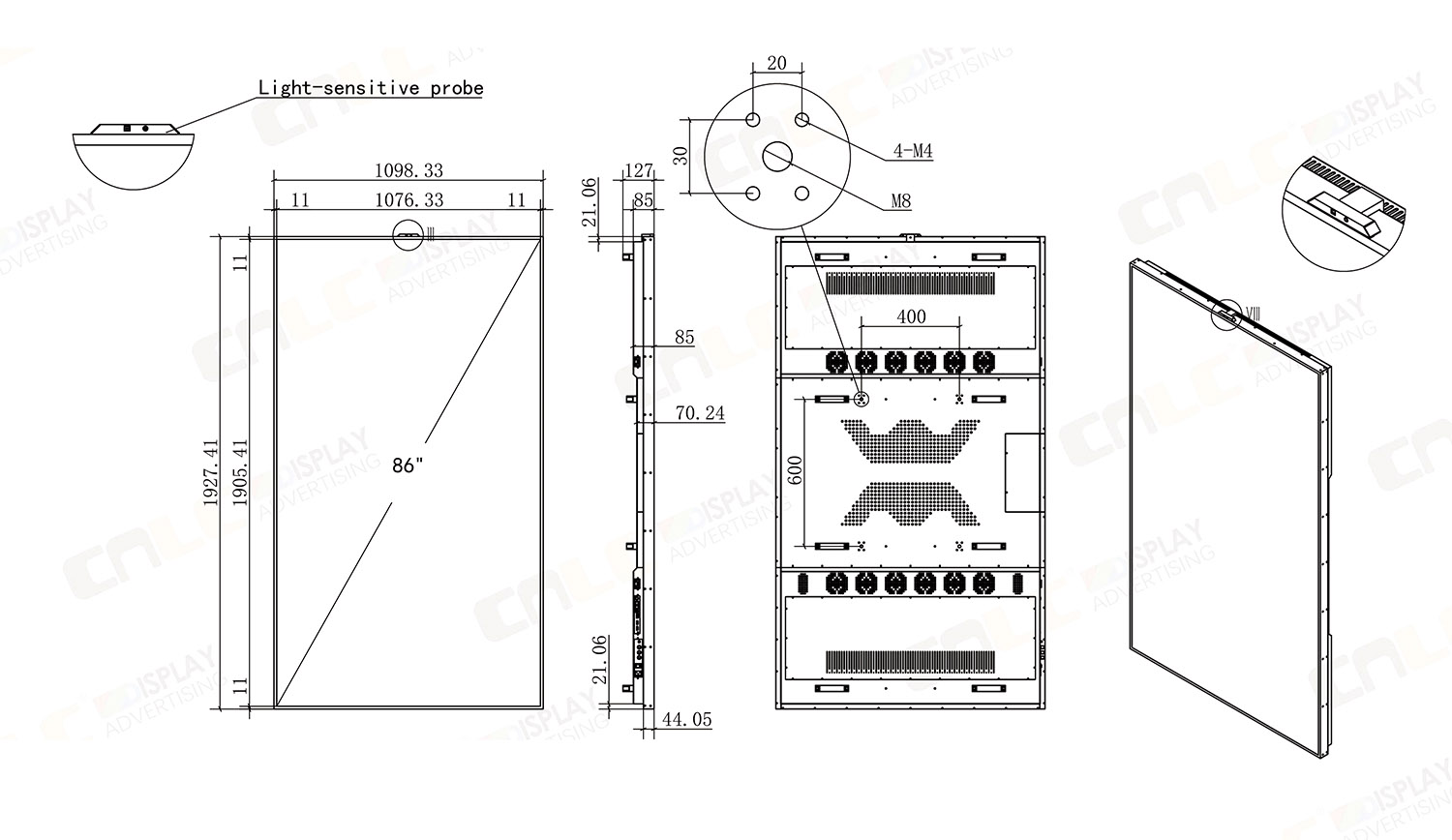

Structure Design & Integration-Friendly Features

• Aluminum structure frame with high strength and efficient heat dissipation

• 85 mm slim profile for easy integration into various custom outdoor enclosures

• Compact design without compromising brightness or stability

OEM & Custom Project Solution

Ideal for:

• Manufacturers with their own outdoor enclosure designs

• System integrators and engineering project clients

• OEM / ODM customized display projects

As a display core module, it allows customers to maintain appearance, branding, and system design freedom, while accelerating integration and project delivery.

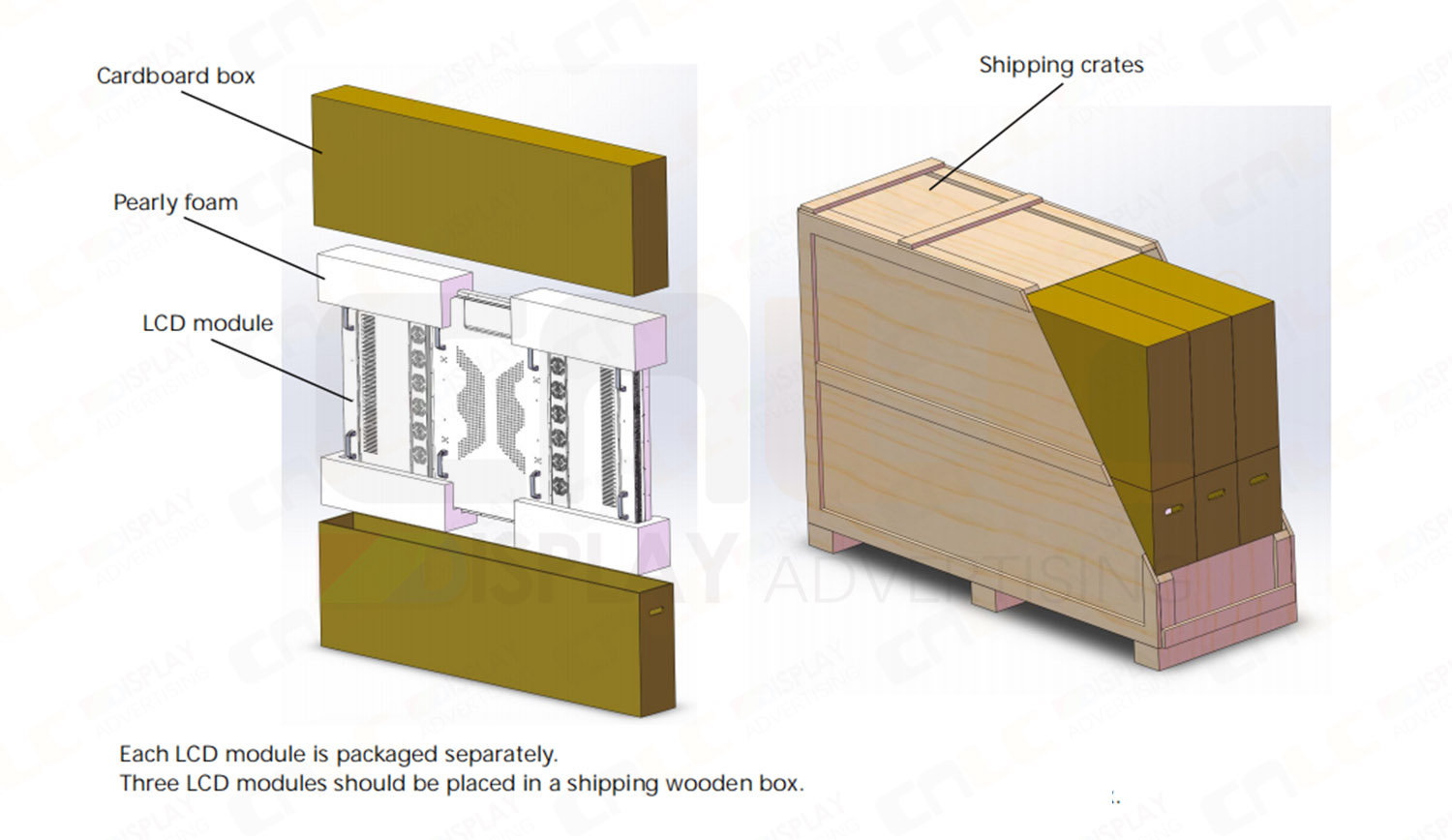

Packaging & Shipping Assurance

For the structural characteristics of the LCD module and international shipping requirements, each module is independently packaged and supports multi-unit consolidated packing, ensuring safe and stable delivery for bulk project shipments.

Packaging and interface configuration can be adjusted or customized according to project requirements.

Solution Value Highlights

• Reliable high-brightness LCD display core for outdoor applications

• Dual-mode brightness control (automatic + manual) for variable lighting conditions

• Slim aluminum structure for easy integration

• Significantly reduces development time and accelerates project delivery

📩 Contact & Collaboration

For detailed technical specifications, custom solutions, and integration support, please contact us.
